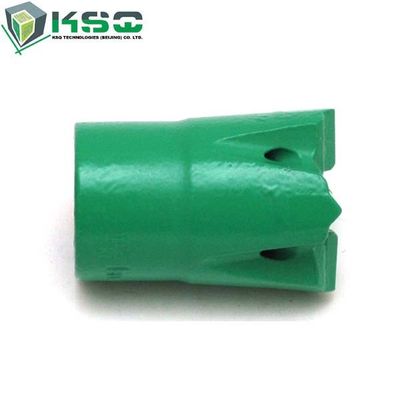

CNC Milling Cross Bits

China CNC Milling Cross Bits supplier
CNC Milling Cross Bits supplier CNC Milling Cross Bits supplier CNC Milling Cross Bits supplier CNC Milling Cross Bits supplier

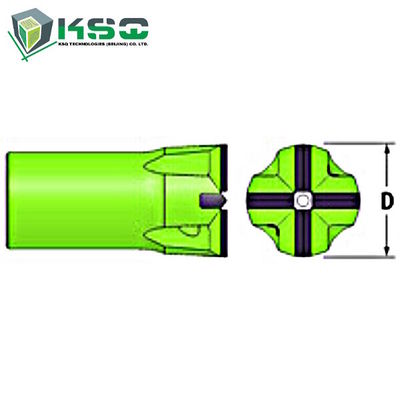

Large Image :  CNC Milling Cross Bits

Product Details:

Place of Origin: China
Brand Name: MIROC
Model Number: 4148300553-4148300559

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description

Description

Cross type bit with steel inserts using H25 thread system. It has a slow penetration rate but it produces a very straight drill hole.


• Steel inserts
• Widely used in dimensional stone industry, drifting and tunneling


Color: Green,Blue or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: R32 Cross Type Bit



Applications


• Dimensional Stone Industry
• Underground Mining
• Tunneling



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



specification
<

Part Number

Product Code

and Brief

Description

Bit

Diameter

(mm)

Bit

Diameter

(inch)

Tip

Size (W x H,

mm)

Front

Flushing

drill holes

Side

Flushing

drill holes

Weight

(kg)

4148300553

CR-41-R32, R32

Cross Type Bit

41 1 3/5 16x10 1       4       0.7
4148300554

CR-43-R32, R32

Cross Type Bit

43 1 2/3 16x10 1       2       0.8
4148300555

CR-45-R32, R32

Cross Type Bit

45 1 7/9 16x10 1       4       0.9
4148300556

CR-48-R32, R32

Cross Type Bit

48 1 8/9 16x10 1       4       0.9
4148300557

CR-51-R32, R32

Cross Type Bit

51 2     16x10 1       4       1.2
4148300558

CR-57-R32, R32

Cross Type Bit

57 2 1/4 16x10 1       4       1.3
4148300559

CR-64-R32, R32

Cross Type Bit

64 2 1/2 18x13 1       4       1.5
