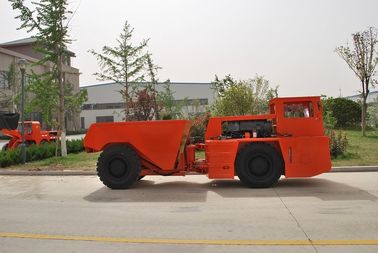

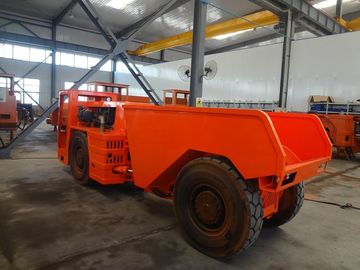

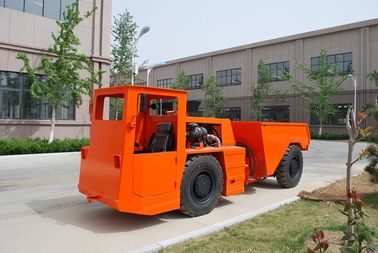

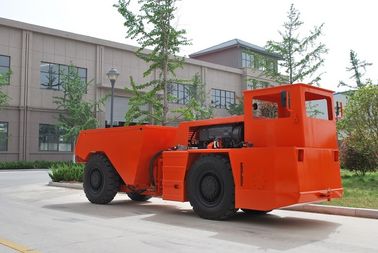

Mini Truck 5 Tons Low Profile Dump Truck Underground Mining Trucks Tunneling Truck

Mini Truck 5 Tons Low Profile Dump Truck Underground Mining Trucks Tunneling Truck

    • Mini Truck 5 Tons Low Profile Dump Truck Underground Mining Trucks Tunneling Truck
    • Mini Truck 5 Tons Low Profile Dump Truck Underground Mining Trucks Tunneling Truck
    • Mini Truck 5 Tons Low Profile Dump Truck Underground Mining Trucks Tunneling Truck
    • Mini Truck 5 Tons Low Profile Dump Truck Underground Mining Trucks Tunneling Truck
    • Mini Truck 5 Tons Low Profile Dump Truck Underground Mining Trucks Tunneling Truck
  • Mini Truck 5 Tons Low Profile Dump Truck Underground Mining Trucks Tunneling Truck

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Certification: CE
    Model Number: RT-5 Low Profile Dump Truck

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Suitable for Long Transportation
    Delivery Time: 1 Month
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10+Unit+Month
    Contact Now
    Detailed Product Description
    Color:: Orange/White/Yellow Application:: Underground Mining And Project
    Place Of Origin:: China Engine:: D914L04
    Power:: Whater Cooled, Turbo Charged


    Mini Truck 5 Tons Low Profile Dump Truck Underground Mining Dump Trucks Tunneling Truck



    Competitive Advantage:
    1. Original DEUTZ engine. Model can be chosed • Underground Mining or Tunneling Project
    2. Very competitive pricing • Hydropower Tunneling
    3. Competitive delivery time. 20-30 days • Roadway/Railway Tunneling/Underground Project
    4. ISO9001 Certified • Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)




    Operation Advantage:


    The RT-5 underground mining truck mainly used in underground mines, power system using Deutz engine, the transmission system with Dana hydraulic torque converter and power shift transmission, convenitent operation, driving stable. Braking system uses spring brake, hydraulic lift brake, safe and reliable.



    Main Technical Configuration:




    Brand: ROXMECH
    Length: 5600mm
    Width: 1400 mm
    Height: 2000 mm
    Carriage Volume: 2.5 m3
    Operating Weight: 6500kg
    Rated Loading Capacity: 5000kg
    Axle Weights without Load: Front axle: 4000kg, Rear axle: 2500kg
    Axle Weight with Load:  Front axle: 5700kg, Rear axle: 5800kg
    Max.Tractive Force 60Kn
    Carriage Dumping Angle: 65 degrees
    Wheelbase: 3230mm

    Bucket Motion Time:

    Raising time: 7s; Lowering Time: 5s
    Rear Axle Oscillation Angle: Around 8 degrees
    Min.Off-ground Clearance: 240mm
    Max.Gradeability: 25%
    Max.Steering Angle: Around 42 degrees
    Min.Steering Radius: Outer 5180mm ; Inner 3410mm
    Engine: Deutz D914L04
    Hydraulic Powertrain RT1201FT20321
    Hydraulic System: Servicing system, steering system, braking system, fill oil system
    Braking System: Service, Parking, Emergency brake
    Tyres: 10.00-20
    Electric System: 12V x2, 80Ah
    Cab: Rops/Fors Approved
    Sensors: Limit Sensor





    Characteristics

    The RT-5 underground mining dump truck mainly using in underground mines

    The power system using Deutz engine. The transmission sytem with Dana hydraulic torque converter and power lift transmission, convenient operation, driving stable. The braking systems using spring brake, hydraulic lift brake, safe and reliable.

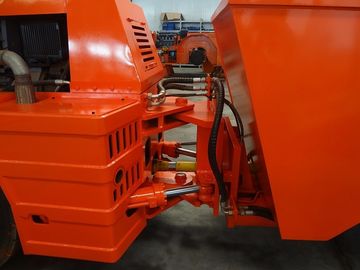

    1. Fully hydraulic, centre-point articulation, power steering with two double acting cylinders. Steering controlled by stick
    2. SAHR brake sytem. Rops/fops certificate
    3. Ergonomics canopy with generous operation room. Adjustable operator’s seat
    4. Matched powertrain. Lube layout to maintain




    Special service
    Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.

    Design service
    Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.

    Training service
    When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.
