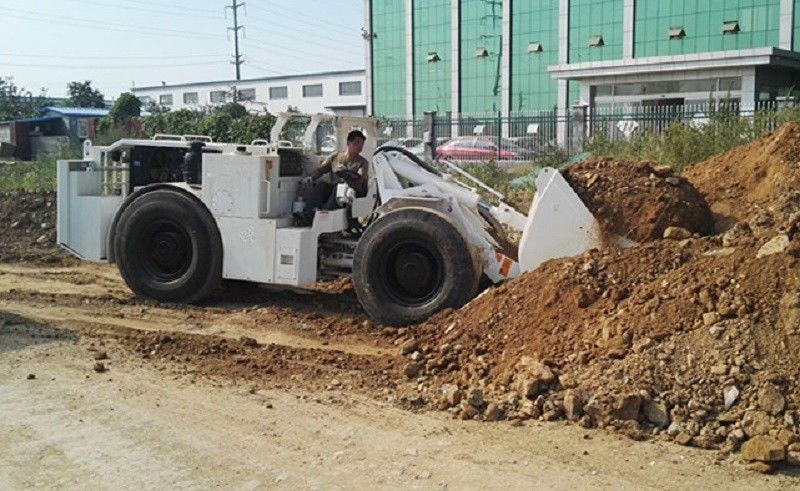

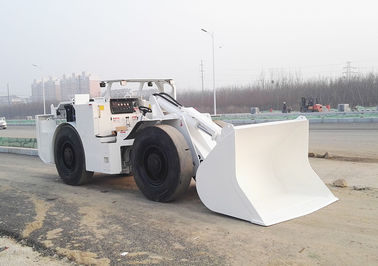

Underground Mining Load Haul Dump Machine Orange / White / Yellow

Underground Mining Load Haul Dump Machine Orange / White / Yellow

    • Underground Mining Load Haul Dump Machine Orange / White / Yellow
    • Underground Mining Load Haul Dump Machine Orange / White / Yellow
    • Underground Mining Load Haul Dump Machine Orange / White / Yellow
    • Underground Mining Load Haul Dump Machine Orange / White / Yellow
  • Underground Mining Load Haul Dump Machine Orange / White / Yellow

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Certification: CE
    Model Number: RL-1.5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Suitable for Long Transportation
    Delivery Time: 1 Month
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10+Unit+Month
    Contact Now
    Detailed Product Description
    Color:: Orange/White/Yellow Application:: Underground Mining And Project
    Place Of Origin:: China


    1.5 cubic meter LHD Loader , Underground Mining Vehicles,Scooptram for tunneling project


    Competitive Advantage:
    1. Original DEUTZ engine. Model can be chosed• Underground Mining or Tunneling Project
    2. Very competitive pricing • Hydropower Tunneling
    3. Competitive delivery time. 20-30 days• Roadway/Railway Tunneling/Underground Project
    4. ISO9001 Certified• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)




    Operation Advantage:


    The RL-1.5 underground mining truck mainly used in underground mines, power system using Deutz engine, the transmission system with Dana hydraulic torque converter and power shift transmission, convenitent operation, driving stable. Braking system uses spring brake, hydraulic lift brake, safe and reliable.



    Main Technical Configuration:


    Brand:ROXMECH
    Bucket:1.5 m3
    Rated Load:3t
    Weight:9.5t
    Lifting time of the arms:<4s
    The sun of three items:<9s
    Forward gear:I 0-9.5, II 0-28.5
    Reerse gear:<4s
    The Sum of Three Items:<9s
    Forward GearI 0-9.5km/h, II 0-28.5 km/h
    Reverse Gear:I 0-12.8 km/h
    Max.Climbing Gradient:20 degrees

    Wheel base:

    2750mm
    Wheel Tread: 1270mm
    Max.Dumping Height:1325mm
    Dumping Reach:940mm
    Engine Model:Cummins 4BTA3.9-C110
    Engine Type:In-Line, Water-Cooling, 4-Stroke, 4 Cylinders, Direct-Injection
    Rated Power:81/82 kw
    Rated Speed:2200 r/min
    Total Exhaust of Cylinder:3.9L
    Type of Starting:Electric Start


     Underground Mining Load Haul Dump Machine Orange / White / Yellow
    Underground Mining Load Haul Dump Machine Orange / White / Yellow
    Characteristics
    The RT-5 underground mining dump truck mainly using in underground mines
    The power system using Deutz engine. The transmission sytem with Dana hydraulic torque converter and power lift transmission, convenient operation, driving stable. The braking systems using spring brake, hydraulic lift brake, safe and reliable.

    1. Fully hydraulic, centre-point articulation, power steering with two double acting cylinders. Steering controlled by stick
    2. SAHR brake sytem. Rops/fops certificate
    3. Ergonomics canopy with generous operation room. Adjustable operator’s seat
    4. Matched powertrain. Lube layout to maintain


    Special service
    Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.

    Design service
    Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.

    Training service
    When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.
