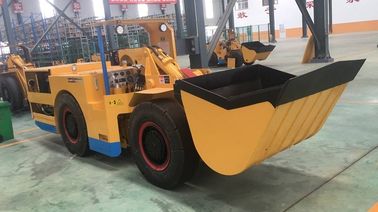

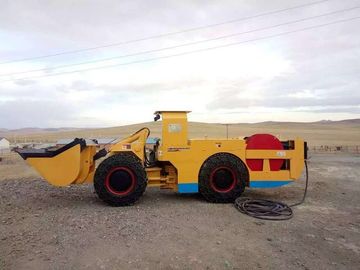

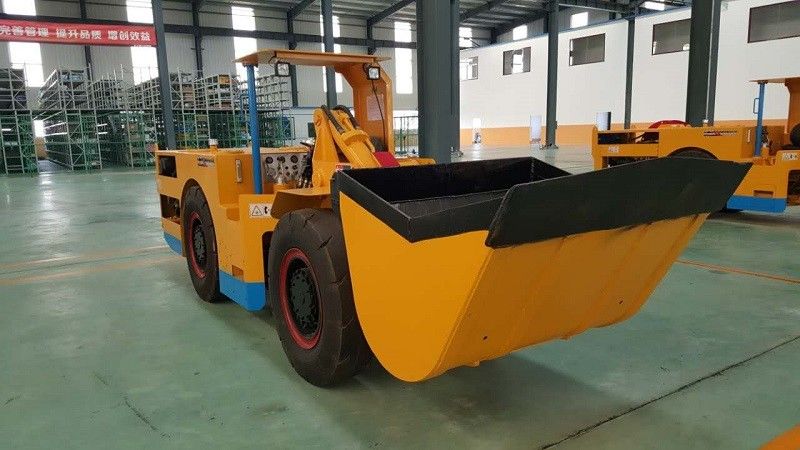

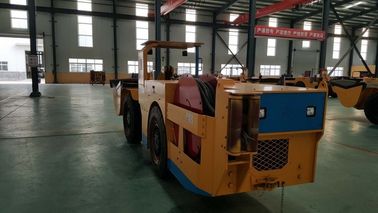

1.5 cubic meter LHD Underground Mining Vehicles Scooptram for tunneling project

1.5 cubic meter LHD Underground Mining Vehicles Scooptram for tunneling project

    • 1.5 cubic meter LHD Underground Mining Vehicles Scooptram for tunneling project
    • 1.5 cubic meter LHD Underground Mining Vehicles Scooptram for tunneling project
    • 1.5 cubic meter LHD Underground Mining Vehicles Scooptram for tunneling project
    • 1.5 cubic meter LHD Underground Mining Vehicles Scooptram for tunneling project
    • 1.5 cubic meter LHD Underground Mining Vehicles Scooptram for tunneling project
  • 1.5 cubic meter LHD Underground Mining Vehicles Scooptram for tunneling project

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Certification: CE
    Model Number: RL-1.5N

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Suitable for Long Transportation
    Delivery Time: 1 Month
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10+Unit+Month
    Contact Now
    Detailed Product Description
    Color:: Orange/White/Yellow Application:: Underground Mining And Project
    Place Of Origin:: China


    New Version 1.5 cubic meter LHD Loader , Underground Mining Vehicles,Scooptram for tunneling project


    Competitive Advantage:
    1. Original DEUTZ engine. Model can be chosed• Underground Mining or Tunneling Project
    2. Very competitive pricing • Hydropower Tunneling
    3. Competitive delivery time. 20-30 days• Roadway/Railway Tunneling/Underground Project
    4. ISO9001 Certified• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)




    Operation Advantage:


    The RL-1.5 underground mining truck mainly used in underground mines, power system using Deutz engine, the transmission system with Dana hydraulic torque converter and power shift transmission, convenitent operation, driving stable. Braking system uses spring brake, hydraulic lift brake, safe and reliable.



    Main Technical Configuration:


    Brand:ROXMECH
    Bucket:1.5 m3
    Engine:Deutz F6914, 89Kw, 2300Rpm
    Dimension:6650mm x 1600mm x 2080mm
    Max Shovel Force:102KN
    Max Traction:104KN
    Min Ground Clearance:2200mm
    Rack Swing Angle:8 degrees
    Max Steering Angle:40 degrees
    Gradability (Fully load)20 degrees
    Min Turing Radias:Outer 5000mm, Inner 2800mm
    Tyre:12.00-24

    Speed:

    0-19.4km/h
    Boom Time: 6.0s
    Tipping Time:2.4s
    Lower Time:5.0s
    Wheelbase:2510mm
    Depature angle:16 degrees
    Weight:11T
    Torque Converter:C2709
    Power Shift Transmission:RT3200
    Multiway Valve:US Parker


     1.5 cubic meter LHD Underground Mining Vehicles Scooptram for tunneling project
    1.5 cubic meter LHD Underground Mining Vehicles Scooptram for tunneling project
    1.5 cubic meter LHD Underground Mining Vehicles Scooptram for tunneling project
    Characteristics
    The RT-5 underground mining dump truck mainly using in underground mines
    The power system using Deutz engine. The transmission sytem with Dana hydraulic torque converter and power lift transmission, convenient operation, driving stable. The braking systems using spring brake, hydraulic lift brake, safe and reliable.

    1. Fully hydraulic, centre-point articulation, power steering with two double acting cylinders. Steering controlled by stick
    2. SAHR brake sytem. Rops/fops certificate
    3. Ergonomics canopy with generous operation room. Adjustable operator’s seat
    4. Matched powertrain. Lube layout to maintain


    Special service
    Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.

    Design service
    Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.

    Training service
    When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.

    Packaging & Shipping






    Load Haul Dump Machine|Scoop Tram|Underground Mining Scraper|Underground Mining Equipment|Trackless Underground Haulage Equipment|underground mining wheel loader|Cargar Haul Dump Máquina|scooptram|Minería Subterránea raspador|Equipos para minería subterránea|Sin caminos metro equipo de arrastre|subterráneo cargadora de ruedas minera|



    Company Information



    ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
    equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
    Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
    Service Vehicles, and Personnel Carriers.

    ROXMECH® Rock Excavation and Service/Support Equipment include:

    Load Haul Dump Machines
    RL-0.6 Load-Haul-Dump Machine
    RL-1 Load-Haul-Dump Machine
    RL-2 Load-Haul-Dump Machine
    RL-3 Load-Haul Dump Machine
    RL-4 Load-Haul Dump Machine

    Low Profile Dump Trucks
    RT-12 Low Profile Dump Truck
    RT-15 Low Profile Dump Truck
    RT-20 Low Profile Dump Truck
    RT-30 Low Profile Dump Truck

    Support Equipment
    RS-3 Service Vehicle Series
    MT30M Low Profile Transmixer

    Processing Equipment
    TT Series Vacuum Ceramic
    Filtration System
