    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: SGS
    Model Number: Cross Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: negotiation
    Packaging Details: Wooden box
    Delivery Time: 15-20days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union
    Supply Ability: 30000pieces per month
    Contact Now
    Detailed Product Description
    Color: Yellow/Black/Green Material: Tungsten Carbide Buttons, Steel Buttons
    Usage:: Used For Hex22 Shank Rod Application: Quarry, Tunnel
    Degree: 6 Degree, 7 Degree, 11 Degree, 12 Degree

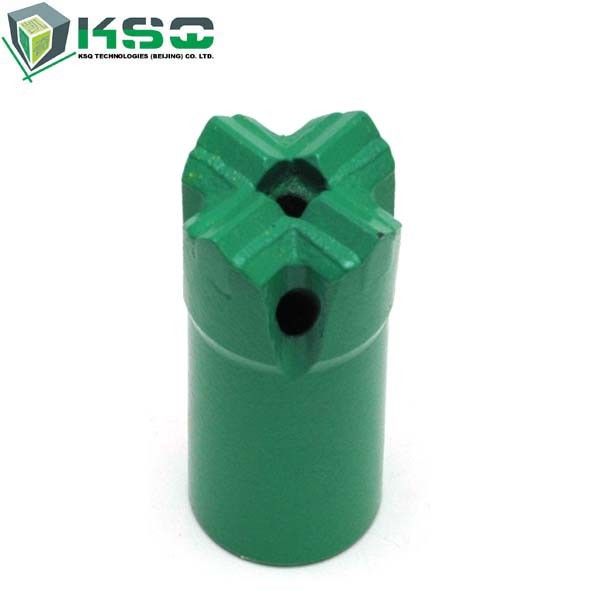

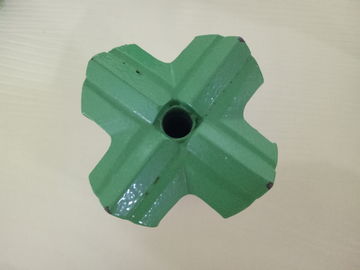

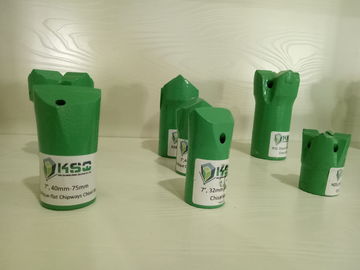

    30mm 32mm 33mm 34mm 36mm 38mm to 60mm 7 degree Cross Bits Chisel Bits




    Product Code System:

    Tapered Button Bits:
    BS432-7D-(22)(23)
    BS = Button Bit, Short Skirt
    4 = Number of Tungsten Carbide Inserts
    32 = Bit Diameter in mm
    ---
    7D = 7 Degrees Taper
    ---
    (22) (23) = Bit Inside Diameter in mm, specific for Tapered Rod
    Diameter

    Tapered Chisel Bits:
    C26-7D-(22)(23)
    C = Chisel Bit
    26 = Bit Diameter in mm
    ---
    7D = 7 Degrees Taper
    ---
    (22) (23) = Bit Inside Diameter in mm, specific for Tapered Rod
    Diameter

    Tapered Cross Type Bits:
    CR(S)45-H25
    CR = Cross Type Bit, Tungsten Carbide Inserts
    CRS = Cross Type Bit, Steel Inserts
    64 = Bit Diameter in mm
    ---
    H25 = Thread System
    Tapered Drill Rods:
    H22-7D-600
    H22 = Hex 22 mm Tapered Rod
    ---
    7D = 7 Degrees Taper
    ---
    600 = Effective Drill Rod Length in mm


    Product Description



    Bit diameter: 30mm to 60mm

    Body height: 50mm, 55mm,60mm

    Taper/Grade: 6 degree, 7 degree, 11 dregree, 12 degree

    Shank Diameter: for Hex22 tapered rod





    30mm 32mm 33mm 34mm 36mm 38mm 7 degree Cross Bits Chisel Bits

    30mm 32mm 33mm 34mm 36mm 38mm 7 degree Cross Bits Chisel Bits





    drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | boorpunt | jesie | boret drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | boorpunt | jesie | boret tapered tungsten carbides knock off drill bit



    Wooden box Package:



    30mm 32mm 33mm 34mm 36mm 38mm 7 degree Cross Bits Chisel Bits



























    Other products related:





    Taper button bit - For 22 mm (7⁄8") hex. Rod

    30mm 32mm 33mm 34mm 36mm 38mm 7 degree Cross Bits Chisel Bits Bit Diameter mm 32 33 34 35 36 38 40 42
    inch 1 1/4 1 2/7 1 1/3 1 3/8 1 3/7 1 1/2 1 4/7 1 2/3
    30mm 32mm 33mm 34mm 36mm 38mm 7 degree Cross Bits Chisel Bits Tungsten Carbide Button Number 4, 6, 7
    Taper/Grade 6,7,11,12 degree







    (1) Integral Drill Rod– chisel bit integral rod, plug hole integral drill steel,

    Shank H19 x 108mm and H22 108mm.


    (2) Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7, 11, 12 degree


    (3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming bit,extension rod, MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.


    (4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, Sandvik, Furukawa, Gardner Genver, Ingersoll Rand etc.


    (5) Down-the-hole (DTH) Bits & Hammers - 3'', 4'', 5'', 6'', 8'', 10", 12" hammers and DTH button bits (diameter 80mm - 445mm)



    30mm 32mm 33mm 34mm 36mm 38mm 7 degree Cross Bits Chisel Bits
