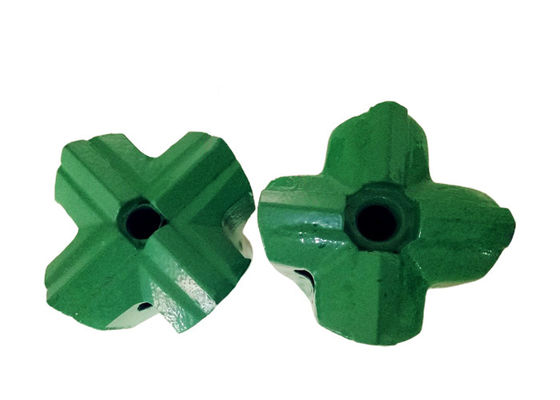

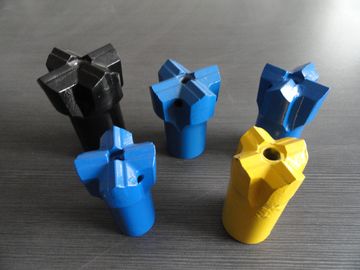

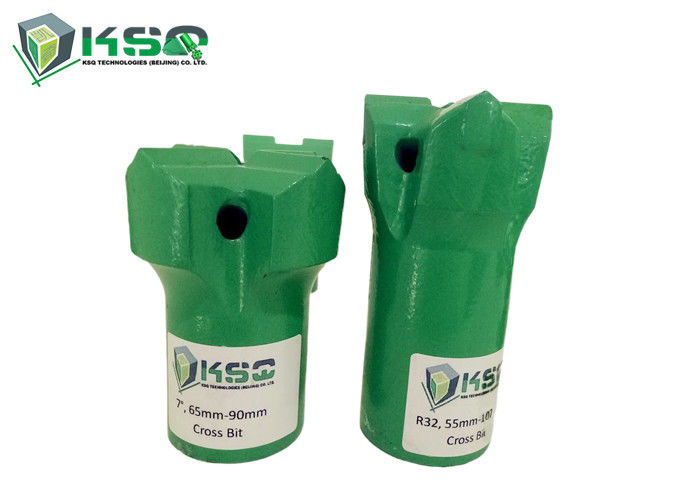

small Drill Bits For Pneumatic Rock Drill Tapered Chisel Drill Bit Cross Drill Bit

small Drill Bits For Pneumatic Rock Drill Tapered Chisel Drill Bit Cross Drill Bit

  • small Drill Bits For Pneumatic Rock Drill Tapered Chisel Drill Bit Cross Drill Bit
  • small Drill Bits For Pneumatic Rock Drill Tapered Chisel Drill Bit Cross Drill Bit
  • small Drill Bits For Pneumatic Rock Drill Tapered Chisel Drill Bit Cross Drill Bit
small Drill Bits For Pneumatic Rock Drill Tapered Chisel Drill Bit Cross Drill Bit
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: SGS
Model Number: Broca de cincel Broca cruzada Bottom Broca
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: Wooden box
Delivery Time: 15-20days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 30000pieces per month
Contact Now
Detailed Product Description
Color:: Yellow/Black/Green Material:: Tungsten Carbide Buttons, Steel Buttons
Application:: Quarry, Tunnel Degree:: 6 Degree, 7 Degree, 11 Degree, 12 Degree
Usage:: For Hex 22mm Shank Tapered Drill Rod
High Light:

metal drill bit

,

short drill bits

Tapered Chisel Drill Bit Cross Drill Bit Button Drill Bits for Pneumatic Rock Drill



Product Code System:



Tapered Button Bits:
BS432-7D-(22)(23)
BS = Button Bit, Short Skirt
4 = Number of Tungsten Carbide Inserts
32 = Bit Diameter in mm
---
7D = 7 Degrees Taper
---
(22) (23) = Bit Inside Diameter in mm, specific for Tapered Rod
Diameter



Tapered Chisel Bits:
C26-7D-(22)(23)
C = Chisel Bit
26 = Bit Diameter in mm
---
7D = 7 Degrees Taper
---
(22) (23) = Bit Inside Diameter in mm, specific for Tapered Rod
Diameter



Tapered Cross Type Bits:
CR(S)45-H25
CR = Cross Type Bit, Tungsten Carbide Inserts
CRS = Cross Type Bit, Steel Inserts
64 = Bit Diameter in mm
---
H25 = Thread System
Tapered Drill Rods:
H22-7D-600
H22 = Hex 22 mm Tapered Rod
---
7D = 7 Degrees Taper
---
600 = Effective Drill Rod Length in mm





Product Description

Bit diameter: 30mm to 60mm

Body height: 50mm, 55mm,60mm

Taper/Grade: 6 degree, 7 degree, 11 dregree, 12 degree

Shank Diameter: for Hex22 tapered rod

small Drill Bits For Pneumatic Rock Drill Tapered Chisel Drill Bit Cross Drill Bit 0



small Drill Bits For Pneumatic Rock Drill Tapered Chisel Drill Bit Cross Drill Bit 1



Product Name:

carbide cross drill bit in tool

Types

Tapered chisel bits, Tapered cross bits, Tapered button bits

Application::

Tapered drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling

Feature:

Tapered drill bits connect tapered drill steel of rock drill for drilling holes

Material:

High quality carbide and high quality steel

MOQ:

No requirement for testing and trial order

We can design and manufature according to your requirment of diameter, number air holes and carbide button shape.

Types of drill bits

Diameter (mm)

Taper Angle (Degree)

Length (mm)

Weight (kg)

Tapered chisel bits

20/22/28/30/32/34/36/38/40

4 degree/ 6 degree/ 7 degree/ 11 degree/ 12 degree

50/55/60/71/80

0.15 - 0.45

Tapered cross bits

24/26/28/30/32/33/34/35/36/3/38/40/42/48/50/55

50/55/60/71/80

0.18 - 0.7

Tapered button bits

28/29/30/32/33/34/35/36/37/38/40/41/42/45

50/55/60/71/80

0.2 - 0.5



small Drill Bits For Pneumatic Rock Drill Tapered Chisel Drill Bit Cross Drill Bit 2

small Drill Bits For Pneumatic Rock Drill Tapered Chisel Drill Bit Cross Drill Bit 3

drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | boorpunt | jesie | boret drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | boorpunt | jesie | boret tapered tungsten carbides knock off drill bit | Broca de cincel | Broca cruzada | Bottom Broca



Wooden box Package:

small Drill Bits For Pneumatic Rock Drill Tapered Chisel Drill Bit Cross Drill Bit 4



Other products related:



Taper button bit - For 22 mm (7⁄8") hex. Rod

small Drill Bits For Pneumatic Rock Drill Tapered Chisel Drill Bit Cross Drill Bit 5

Bit Diameter

mm

32

33

34

35

36

38

40

42

inch

1 1/4

1 2/7

1 1/3

1 3/8

1 3/7

1 1/2

1 4/7

1 2/3

small Drill Bits For Pneumatic Rock Drill Tapered Chisel Drill Bit Cross Drill Bit 6

Tungsten Carbide Button Number

4, 6, 7

Taper/Grade

6,7,11,12 degree



(1) Integral Drill Rod– chisel bit integral rod, plug hole integral drill steel,

Shank H19 x 108mm and H22 108mm.


(2) Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7, 11, 12 degree


(3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming bit,extension rod, MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.


(4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, , Furukawa, Gardner Genver, Ingersoll Rand etc.


(5) Down-the-hole (DTH) Bits & Hammers - 3'', 4'', 5'', 6'', 8'', 10", 12" hammers and DTH button bits (diameter 80mm - 445mm)



The information you may like to know before order:



1. Methods of Payment:

T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Handling time for an order

Based on order quantity, normally it takes 25 days for production.

Only 2 or 3 days if we have stock on your request size.

3. Shipping way

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

4. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.

5. After Services:

1. Our sales team will response for your question within 24 hours (Holidays Excluded)

2. Technical Support will be available in any time

3. Free replacement will provide once the failure confirmed caused by our product quality
