| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | SGS, ISO certification |
| Model Number: | Tapered button bit |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 30000pieces per month |
| Color: | Green/ Golden/ Yellow/ Black | Material: | Tungsten Carbide Buttons |
|---|---|---|---|
| Application: | Used For Hex22 Shank Rod | Usage:: | For Small Hole Rock Drilling |
| Buttons Quantities:: | 4, 5, 6, 7, 8 | ||
| High Light: | hardened steel drill bits,milling drill bits |
||
What can you get from KSQ?
1. Good service for the products purchased
2. Good quality control of products produced
3. Reasonable prices for the products offered
4. Best advices based on the experience and knowledge of well know what to do and how to do
Product Description
Product Code System
Tapered Button Bits:
BS432-7D-(22)(23)
BS = Button Bit, Short Skirt
4 = Number of Tungsten Carbide Inserts
32 = Bit Diameter in mm
---
7D = 7 Degrees Taper
---
(22) (23) = Bit Inside Diameter in mm, specific for Tapered Rod
Diameter
Bit diameter: 32mm to 42mm
Body height: 50mm, 55mm,60mm
Taper/Grade: 6 degree, 7 degree, 11 dregree, 12 degree
Shank Diameter: for Hex22 tapered rod
|

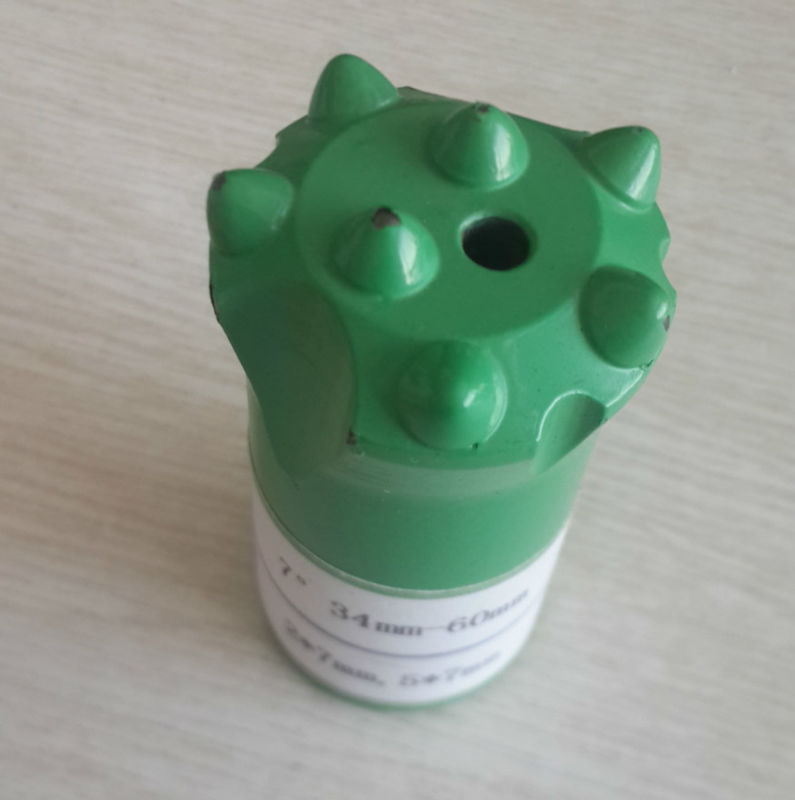

SPECIFICATIONS FOR 7 BUTTONS 34MM TAPER BUTTON BIT
|
|||
|
Item
|
Specification
|
Choice
|
OEM Service
|
|
Product Name
|
34MM 7 BUTTONS TAPERED BUTTON BIT
|
34mm Taper Button Bit
|
Available
|
|
Brand
|
MIROC
|
KSQ
|
Available
|
|
Material
|
35CrNiMoV
|
45CrNiMoV
|
Not Availbale
|
|
Carbide Size
|
5*7mm, 2*6mm
|
7*6mm
|
Available
|
|
Diameter
|
34mm
|
30mm-60mm
|
Available
|
|
Length
|
65mm
|
50mm
|
Available
|
|
Socket diameter
|
22mm
|
25mm |
Available
|
|
Uses
|
Gound drilling
|
Underground drilling
|
Available
|
|
Color
|
Original color
|
Blue,yellow
|
Available |
| Taper button bit - For 22 mm (7⁄8") hex. Rod | ||||||||||
|
Bit Diameter | mm | 32 | 33 | 34 | 35 | 36 | 38 | 40 | 42 |
| inch | 1 1/4 | 1 2/7 | 1 1/3 | 1 3/8 | 1 3/7 | 1 1/2 | 1 4/7 | 1 2/3 | ||
|
Tungsten Carbide Button Number | 4, 5, 6, 7, 8 | ||||||||
| Taper/Grade | 6,7,11,12 degree | |||||||||
drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | boorpunt | jesie | boret drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | boorpunt | jesie | boret tapered tungsten carbides knock off drill bit
Wooden box Package:
Shipping:
Express: By TNT, DHL, UPS, FEDEX, EMS etc....
By sea: MSC, MAERSK etc....
By Train
Other products include:
The information you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
1. Our sales team will response for your question within 24 hours (Holidays Excluded)
2. Technical Support will be available in any time
3. Free replacement will provide once the failure confirmed caused by our product quality
product line by KSQ Tecnologies (Beijing) Co. Ltd. is the result of years
of advanced engineering, precision manufacturing, and dedication to the use of high quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling,
and quarrying projects around the globe.
