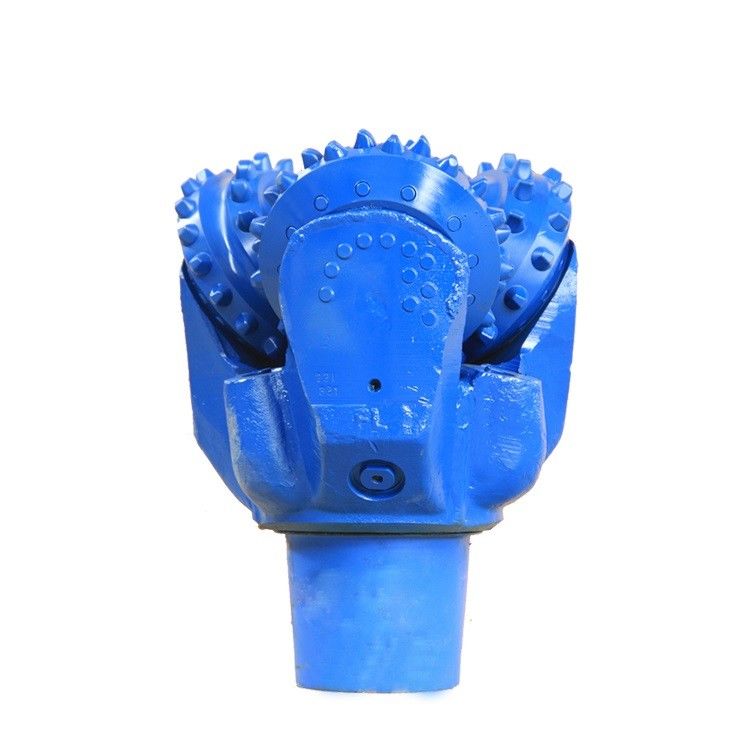

11 5/8" KA537G MnNiMo Steel Tricone Water Well Drill Bits Diamond Bit

11 5/8" KA537G MnNiMo Steel Tricone Water Well Drill Bits Diamond Bit

  • 11 5/8" KA537G MnNiMo Steel Tricone Water Well Drill Bits Diamond Bit
  • 11 5/8" KA537G MnNiMo Steel Tricone Water Well Drill Bits Diamond Bit
  • 11 5/8" KA537G MnNiMo Steel Tricone Water Well Drill Bits Diamond Bit
  • 11 5/8" KA537G MnNiMo Steel Tricone Water Well Drill Bits Diamond Bit
11 5/8" KA537G MnNiMo Steel Tricone Water Well Drill Bits Diamond Bit
Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: MIROC
Certification: API
Model Number: 11 5/8" KA537G
Payment & Shipping Terms:
Minimum Order Quantity: 5Pieces
Price: negotiation
Packaging Details: Plywood box enhanced with steel
Delivery Time: Shipped in 5 days after payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Material: MnNiMo Steel Bearing Type: Elastomer Sealed Bearing
Product Name: PDC Bit, Diamond Drill Bit Application: Oil,Gas,Water Well Drilling
Use: Well Drilling Availabe: 3 7/8"~26"
IADC: 537G Processing Type: Casting Forging
High Light:

water well drill bits

,

tricone roller bit

 11 5/8" KA537G tricone bit/diamond bit for water oil well drilling factory suppier



We offer verious new steel tooth and tungsten carbide insert (tci) tricone bits in sizes from 3 1/2" – 26", with open or sealed bearings, regular or jet circulation, and a wide range of additional custom features for ideal performance in any formation. Tricone bits can be customized to optimize penetration rates and bit life in particular formations and under specific operating weights and rotation speeds.



Steel teeth or carbide inserts come in a variety of shapes, sizes, and grades of tungsten carbides to address specific drilling conditions. TCI bits offer increased durability over steel tooth bits but also carry a higher cost.



Specifications

11 5/8" KA537G MnNiMo Steel Tricone Water Well Drill Bits Diamond Bit 0
Basical Specification
Size of Rock Bit 11 5/8 inches
295mm
IADC Code 537G
Thread Connection 6 5/8 API reg pin
Factory Series KA Series Elastomer sealed bearing
Operating Parameters
WOB (Weight On Bit) 29863~66363lbs
133~295KN
RPM 120~50
Formation Soft to medium formation with low compressive strength ,such as medium soft shale,medium softlimestone,medium soft sandstone,medium formation with harder and abrasive interbeds,etc.




Product Related:

11 5/8" KA537G MnNiMo Steel Tricone Water Well Drill Bits Diamond Bit 1

11 5/8" KA537G MnNiMo Steel Tricone Water Well Drill Bits Diamond Bit 2
Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due to physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
Company Information


KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
