| Place of Origin: | Hebei, China (Mainland) |
| Brand Name: | MIROC |
| Certification: | API |
| Model Number: | 12 1/4"(311.2mm) |
| Minimum Order Quantity: | 5Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood box enhanced with steel |
| Delivery Time: | Shipped in 5 days after payment |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30000pcs per month |
| Material: | Carbide | Bearing Type: | Elastomer Sealed Bearing |
|---|---|---|---|
| Product Name: | 12 1/4''tricone Three Cone Button Bit | Application: | Oil Natural Gas Water Well Drilling |
| Use: | Well Drilling | Make Up Torque(KN.m): | 38~43.4 |
| IADC: | 537 | Processing Type: | Casting Forging |
| Connection: | 6 5/8"API REG | Bit Size: | 12 1/4"(311.2mm) |
| High Light: | diamond drill bit,water well drill bits |
||

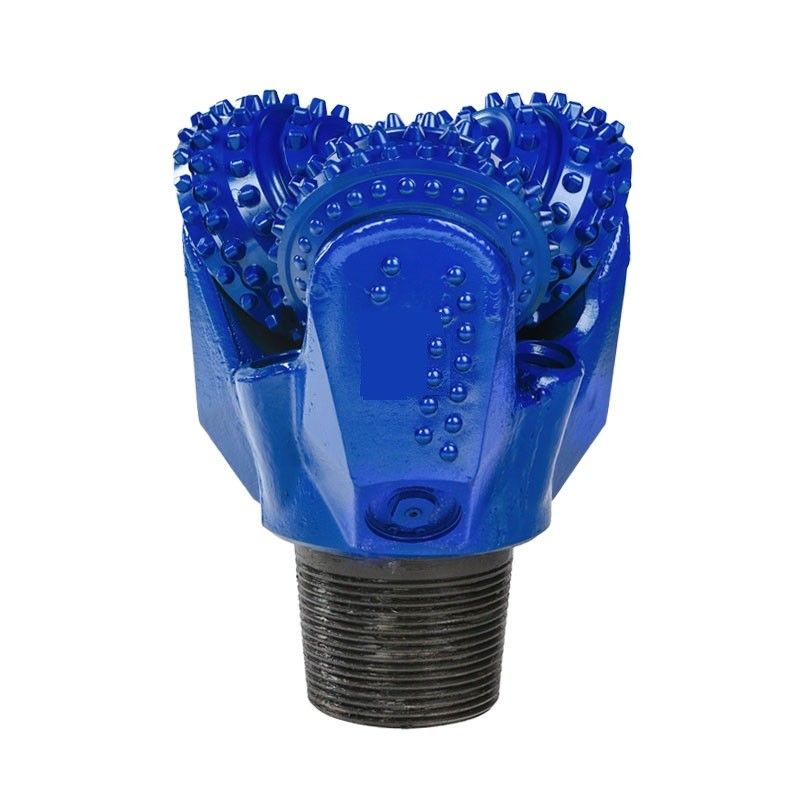

100% new 12 1/4''tricone three cone button tci tricone roller drill bit for oil natural gas water well drilling
We offer verious new steel tooth and tungsten carbide insert (tci) tricone bits in sizes from 3 1/2" – 26", with open or sealed bearings, regular or jet circulation, and a wide range of additional custom features for ideal performance in any formation. Tricone bits can be customized to optimize penetration rates and bit life in particular formations and under specific operating weights and rotation speeds.
Specifications
Basical Parameter | |
Bit Size | 12 1/4"(311.2MM) |
IADC Code | 537G |
Connection | 6 5/8"API reg pin |
Nozzle Qty | 3NZ |
Make up Torque(KN.m) | 38~43.4 |
Operating Parameter | |
Rotary Speed(rpm) | 120~50 |
Weight on Bit(KN/MM) | 0.45~1.0 |
Formation | Soft to medium formation with low compressive strength ,such as medium soft shale,medium softlimestone,medium soft sandstone,medium formation with harder and abrasive interbeds,etc. |
Product Related:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
Hazardous environment
Acts, regulations, and other government guidelines that has to be followed
Significant differences in the way people work, mostly due to physical constraints
Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
