| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | SGS, ISO certification |
| Model Number: | IADC 517 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | Wooden box |
| Delivery Time: | 25-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs per month |
| Material: | Tungsten Carbide Buttons, Steel Buttons | Color: | Blue, Golden, Green, Red |
|---|---|---|---|
| Application: | Water Well | Processing Type:: | Forging |
| Product Type:: | Drilling Tool | Formation:: | Soft, Medium Hard, Hard |
| High Light: | diamond drill bit,water well drill bits |
||

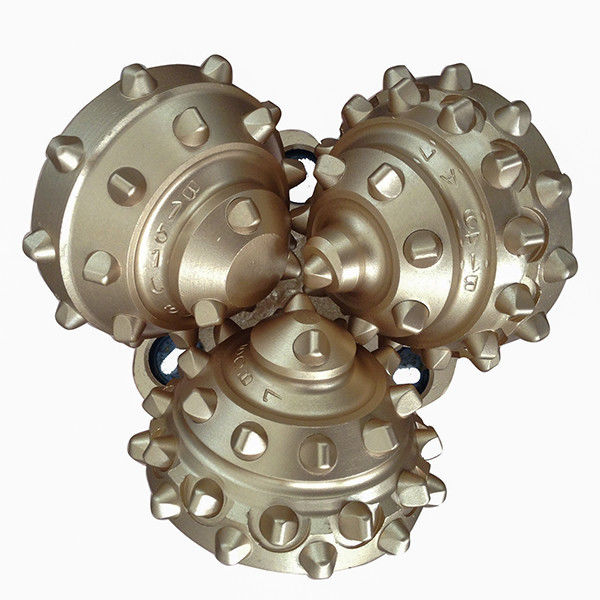

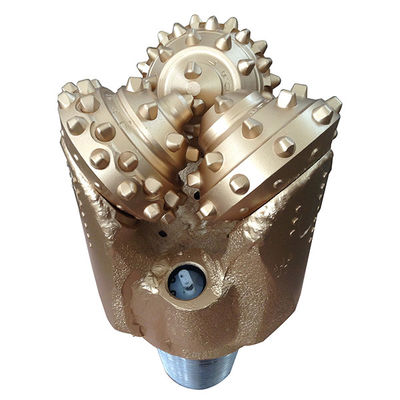

6 3 / 4 " ( 171mm ) IADC 532 TCI Tricone Drill Bit Top Grade Long Serve Life
The soft formation TCI tricone bits are used to drill low compressive strength, very soft formations. This bit maximized to use of both conical and chisel tungsten carbide inserts of large diameters and high projection. This cutting structure design, combined with maximum cone offset, results in high bit penetration rates. The deep intermesh of cutter rows prevents bit bailing in sticky formations.
Medium formation TCI tricone bits:
The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.
Hard formation TCI tricone bits:
The hard formation TCI tricone bits can be used to drill hard and abrasive formations. Wear resistance
tungsten carbide inserts are used in the outer rows to prevent loss of bit gauge. Maximum numbers of
hemispherical shaped inserts are used in all rows to provide cutter durability and long life.
Medium hard formation TCI tricone bits:
The medium hard formation TCI tricone bits features robust chisel tungsten carbide inserts on the heel row and conical on the inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard formations. The HSN rubber O-ring provides adequate sealing for bearing
durability.
Product features:
Tungsten carbide insert bit, TCI bit, button bit Sizes range from 3 7/8" to 26" .
Reliable bearing and lubrication system
<
| 6 3/4" (171mm) IADC 532 | | |
| Product Specfication | ||
| Type: | Tricone | |
| Bearing Type: | Air Circulation | |
| Configuration: | Roller-Ball-Roller | |
| Cutting Structure: | TCI | |
| Gauge Rows: | Conical | |
| Inner Rows: | Conical | |
| Nose Rows: | Conical | |
| Surf Rows: | Round | |
| Bit Connection: | 3 1/2" REG API | |
| Circulation Type: | Jet Nozzle | |
| Head Type: | Full Armor | |
| Hardfacing: | Standard | |
| Armor: | Round(TCI) | |
| Head Feature: | Fluid Dynamic Profile | |
| Reaming: | None | |
| Bit Weight: | 44 lbs/20kg | |
| Recommend Operating Parameters | ||
| Rotary Speed: | 50 - 110 rpm | |
| Weight on Bit: | 10,000 - 40,000 lbs | |
| Drilling Application | ||
| 1. The 6 3/4" IADC 532 blasthole bits are designed for drilling soft to medium formations, with rock compressive strength ranging from 10,000 to 25,000 psi. | ||
| 2. Formation drilled may consist of shale, soft limestone, mudstone, soft slate, gypsum and sandstone. | ||
Other products
| IADC | WOB | RPM | Applicable Formations |
| 437/447/435 | 0.35~0.9 | 240~70 | Very soft formations with low compressive strength and high drillability, |
| 517/527/515 | 0.35~1.0 | 220~60 | Soft formations with low compressive strength and high drillability, |
| 537/547/535 | 0.45~1.0 | 220~50 | Soft to medium formations with low compressive strength, |
| 617/615 | 0.45~1.1 | 200~50 | Medium hard formation with high compress strength, |
| 637/635 | 0.5~1.1 | 180~40 | Hard formations with high compressive strength, |
| Note: The upper limits of WOB and RPM in above table should not be used simultaneously. | |||
