| Place of Origin: | Shangdong,China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | Cir Dth Hammer |
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 10-22days after receiving payment and order confirmation |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30000pcs per month |
| Type: | Cir 90 Dth Hammer | Series: | CIR65,CIR90,CIR110 |
|---|---|---|---|
| Color: | Black ,Orange,White | Material: | Nice Quality Carbon Steel |
| Bit Diameter: | 90MM 110MM 130MM | Use: | Tunneling, Mining,Quarrying,Water Well,Construction |
| High Light: | down the hole drilling tools,down the hole hammer |
||

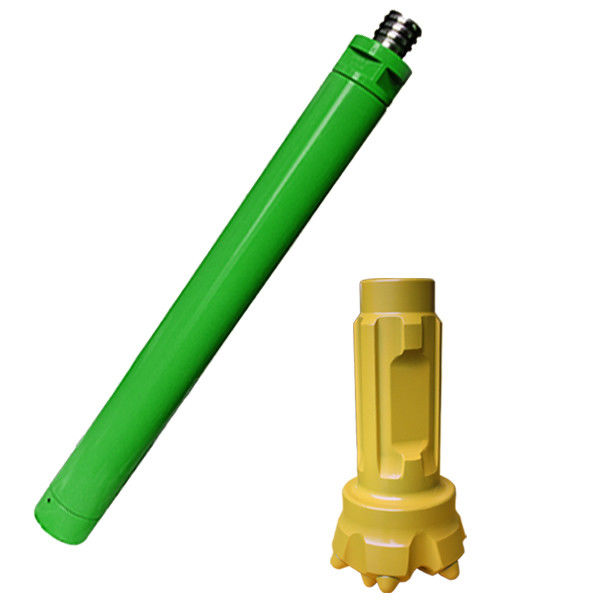

Cir Mining Low Pressure Hammer , Cir 90 Rock Hammer , Cir 90 Dth Hammer
In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.
• Small to medium size drilling diameters
• Works in low pressure range, capable of drilling shallow to medium hole lengths
|
Product Name: |
DTH Hammer for Drilling / Down the Hole Hammer |
|||||
|
Description: |
high pressure mining drilling DTH hammer are used for blast hole drilling and water well drilling project. Working with DTH drilling pipe and DTH drill bit, mainly applied in Mining, Marble quarry or well drilling and other construction projects. |
|||||
|
Quality level: |
95% similarity to COP/SD/MISSION/QL/BR/DHD etc famous brand |
|||||
|
MOQ: |
1 PC |
|||||
|
Series: |
COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc |
|||||
| Specification | Weight (kg) | External Diameter (mm) | Connection thread | Hole rang (mm) | Impact rate | Recommended rotation speed |
| Low air pressure DTH hammer CIR type | 5 ~22 | 50~180 | CIR** | 55~200 | 820 rpm | |
| Middle air pressure BR and COP type | 10~30 | 70~110 | 85~115 | |||
| 3 inch DTH hammer | 24.5 | 81 | API 2 3/8” Reg | 90~110 | 28Hz (at 17 bar) | 28 r/min |
| COP34/QL30 etc | ||||||
| 4 inch DTH hammer | 39.2 | 99 | API 2 3/8” Reg | 110~150 | 27Hz (at 17 bar) | 25~40 r/min |
| COP44/DHD340 etc | ||||||
| 5 inch DTH hammer | 71.5 | 125 | API 2 3/8” or API 3 1/2” Reg | 135~165 | 25Hz (at 17 bar) | 20~30 r/min |
| COP54/Mission50 etc | ||||||
| 6 inch DTH hammer | 98 | 142 | API 3 1/2” Reg | 152~216 | 23Hz (at 17 bar) | 15~25 r/min |
| COP64/QL60 etc | ||||||
| 8 inch DTH hammer | 188 | 180 | API 4 1/2” Reg | 203~305 | 20Hz (at 17 bar) | 15~20 r/min |
| COP84/SD8 etc |
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
Competitive Advantage
Main hammer components manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Packaging :Carton or Wooden Box
