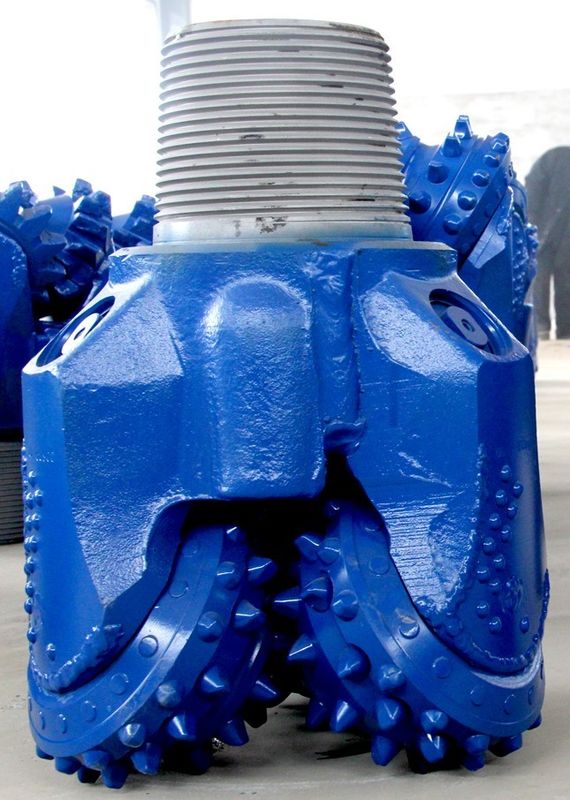

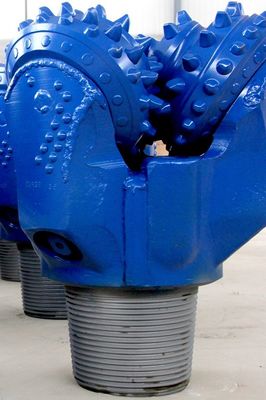

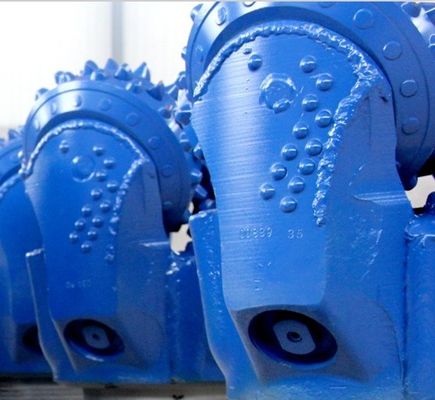

IADC437 TCI Tricone Rock Roller Bit For Water Well Geothermal Drilling

IADC437 TCI Tricone Rock Roller Bit For Water Well Geothermal Drilling

    • IADC437 TCI Tricone Rock Roller Bit For Water Well Geothermal Drilling
    • IADC437 TCI Tricone Rock Roller Bit For Water Well Geothermal Drilling
    • IADC437 TCI Tricone Rock Roller Bit For Water Well Geothermal Drilling
  • IADC437 TCI Tricone Rock Roller Bit For Water Well Geothermal Drilling

    Product Details:

    Place of Origin: China
    Brand Name: KSQ
    Certification: API
    Model Number: Tricone Rock Roller Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiation
    Packaging Details: Wooden box or as your requirement.
    Delivery Time: 7-10DAYS
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 1000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Type: Tricone Rock Roller Bit Color: Blue
    IADE Codes: IADC437 Size: 2 7/8 Inch-12 1/4 Inch
    Use: Water Well,oil Well,gas Well,geothermal Formation: Soft To Hard Formation





    IADC437 TCI Tricone Rock Roller Bit For Water Well Geothermal Drilling





    IADC437 TCI Tricone Rock Roller Bit for Water Well Geothermal Drilling



    Main Features

    1. There is a Tricone suitable for any rock formation
    2. Tricone bit is versatile and can handle changing formations
    3. Tri Cones are reasonably priced, long lasting and have an efficient drilling rate
    4. The roller cones have high end sealed bearings; extremely high quality tungsten carbide and diamond gauge protection throughout the drill bit as well as skirt tail hard facing and optimized hydraulics. These roller cone drill bits are designed to go to extreme depths in extreme conditions and in situations where they cannot fail.



    Specification information

    IADC code

    (the main)

    417 427 437 517 527 537 617 627 637

    737 837 832 415 425 435 445 525 625

    635 416 427 436 446 447 516 526 536

    535 537 547

    Available size

    From 2 7/8” to 26”

    Larger sizes for hole opener bit,reamer bit

    Bearing type

    Sealed bearing and non-sealed bearing

    HJ(metal sealed journal bearing)

    HA(rubber sealed journal bearing)

    aircooled bearing type

    Formation or layer

    Soft, medium soft, hard, medium hard,

    very hard formation

    Button size

    (extra fratures)

    Button bit,saw steel

    1) Y-Conical teeth

    2) X- chisel teeth

    3) K- wide teeth

    4) G- Gauge protection

    Material Tungsten Carbide
    Delivery terms By sea or by air
    Application

    Petroleum & gas,water well, mining and tectonic industries,oil field,

    construction,geothermal,directional boring,

    and underground foundation work

    Packing wooden case
    Payment Term

    T/T

    (30% downpayment and 70%balance before shipping.)

    MOQ 1 Piece
    Supply Ability 1000 Pieces/month
    Delivery Time within 10-15 work days

    Extremely high quality tungsten carbide

    High effectively cutting ability abd strong anti-breaking ability , which can increase ROP and improve service life of bit effectively



    Gauge protection

    Special inserts are strategically arranged on head to effectively reduce head wear in abrasive fromation and directional and horizontal wells and exrend bit life



    Cooling system

    The nozzles is very important part in the life of a bit, bit hydraulics are controlled through these nozzles, it is also heat treatment for more strength and stability.

    IADC437 TCI Tricone Rock Roller Bit For Water Well Geothermal Drilling
