| Place of Origin: | China |
| Brand Name: | Mirco |
| Minimum Order Quantity: | negociated one |
|---|---|
| Price: | negociated one |
| Packaging Details: | wooden box or plastic box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 60000 Piece/Pieces per Month |
| Model: | 41mm 7 Button 11 Degree | Type: | Drill Bit |
|---|---|---|---|
| Machine Type: | Drilling Tool, Drilling Equipment | Material: | Carbon Steel |
| Processing Type: | Forging | Use: | Mining Drilling |
| Bit Diameter: | 76,89,102,115mm | Product Name: | Tapered Button Drill Bit |
| High Light: | industrial drill bits,hardened steel drill bits |
||

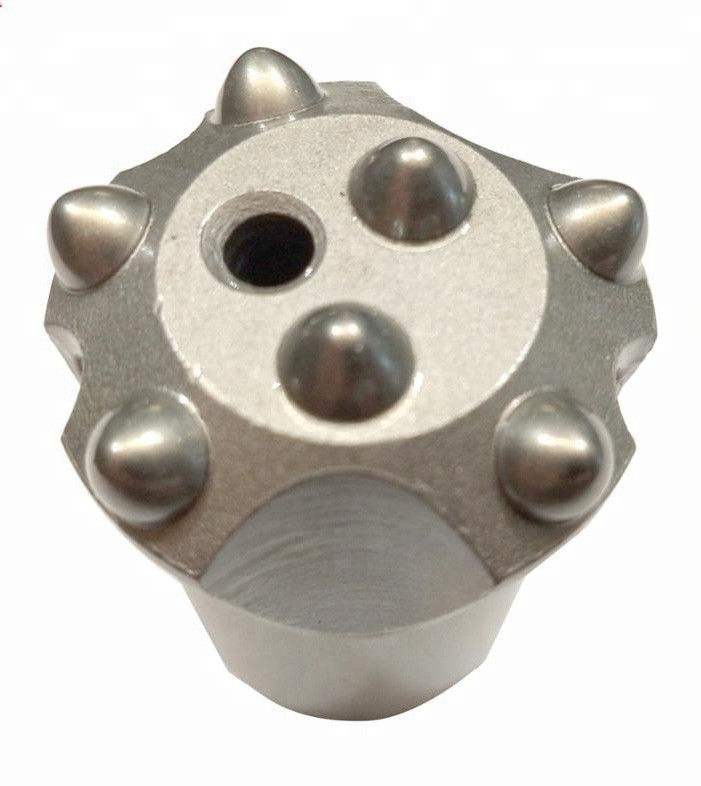

41mm 7 Button 11 Deg Taper Button Drill Bit For Rock , Forging Processing Type
41mm 7 Button 11 Degree taper button bit rock button bits with high quality
| Dia.(mm) | Taper | Buttons | Flusing Holes | Weight(kg) | ||
| Gauge | Front | |||||
| Qty×Dia. | Qty× Dia. | Front | Side | |||
| 32 | 7 degrees | 2x7 | 5x7 | 1 | 1 | 0.3 |
| 33 | 7 degrees | 2*7 | 5*7 | 1 | 1 | 0.3 |
| 35 | 7 degrees | 2*7 | 5*8 | 1 | 1 | 0.36 |
| 38 | 7 degrees | 2*7 | 5*9 | 1 | 1 | 0.41 |
| 41 | 7 degrees | 2*7 | 5*9 | 1 | 1 | 0.41 |
| 33 | 12 degrees | 2*7 | 6*7 | 2 | 1 | 0.31 |
| 35 | 12 degrees | 2*7 | 6*7 | 2 | 1 | 0.35 |
| 38 | 11 degrees | 2*8 | 3*9 | 1 | 1 | 0.39 |
| 40 | 11 degrees | 2*8 | 3*9 | 1 | 1 | 0.4 |
| 40 | 11 degrees | 2*9 | 3*9 | 1 | 1 | 0.4 |
Package
About us
MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.
KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.
MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
