| Place of Origin: | China |
| Brand Name: | Mirco |
| Minimum Order Quantity: | negociated one |
|---|---|
| Price: | negociated one |
| Packaging Details: | wooden box or plastic box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Model: | 36mm 11degree 6buttons | Type: | Drill Bit |
|---|---|---|---|
| Machine Type: | Drilling Tool, Drilling Equipment | Material: | Carbon Steel |
| Processing Type: | Forging | Use: | Mining Drilling |
| Bit Diameter: | 28mm~60mm | Product Name: | Tapered Button Drill Bit |
| High Light: | hardened steel drill bits,milling drill bits |
||

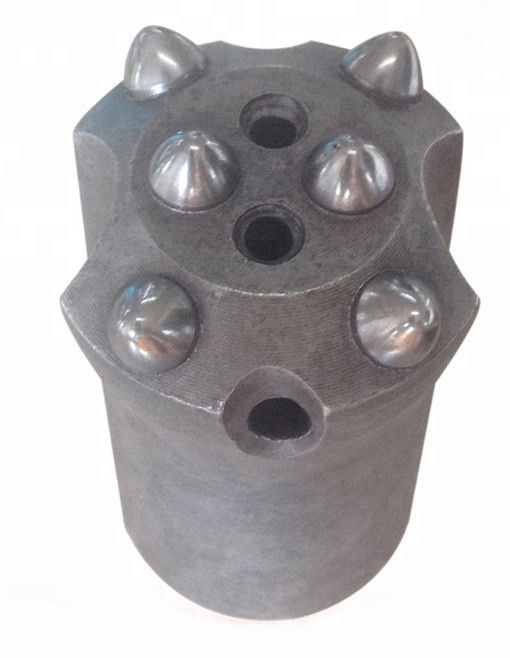

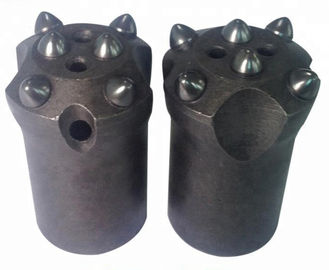

36mm 11 Degree Button Drill Bit , Hard 6 Buttons Tapered Rock Button Bit
36mm 11degree 6buttons tapered rock button bit with best price
Description & Specification
| Product Name: | tapered tungsten carbides knock off drill bit | |||
| Types | Tapered chisel bits, Tapered cross bits, Tapered button bits | |||
| Application:: | Tapered drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling | |||
| Feature: | Tapered drill bits connect tapered drill steel of rock drill for drilling holes | |||
| Material: | High quality carbide and high quality steel | |||
| MOQ: | No requirement for testing and trial order | |||
| We can design and manufature according to your requirment of diameter, number air holes and carbide button shape. | ||||
| Types of drill bits | Diameter (mm) | Taper Angle (Degree) | Length (mm) | Weight (kg) |
| Tapered chisel bits | 20/22/28/30/32/34/36/38/40 | 7 degree/ 11 degree/ 12 degree | 50/55/60/71/80 | 0.15 - 0.45 |
| Tapered cross bits | 24/26/28/30/32/33/34/35/36/3/38/40/42/48/50/55 | 50/55/60/71/80 | 0.18 - 0.7 | |
| Tapered button bits | 28/29/30/32/33/34/35/36/37/38/40/41/42/45 | 50/55/60/71/80 | 0.2 - 0.5 | |
| Dia.(mm) | Taper | Buttons | Flusing Holes | Weight(kg) | ||
| Gauge | Front | |||||
| Qty×Dia. | Qty× Dia. | Front | Side | |||
| 32 | 7 degrees | 2x7 | 5x7 | 1 | 1 | 0.3 |
| 33 | 7 degrees | 2*7 | 5*7 | 1 | 1 | 0.3 |
| 35 | 7 degrees | 2*7 | 5*8 | 1 | 1 | 0.36 |
| 38 | 7 degrees | 2*7 | 5*9 | 1 | 1 | 0.41 |
| 41 | 7 degrees | 2*7 | 5*9 | 1 | 1 | 0.41 |
| 33 | 12 degrees | 2*7 | 6*7 | 2 | 1 | 0.31 |
| 35 | 12 degrees | 2*7 | 6*7 | 2 | 1 | 0.35 |
| 38 | 11 degrees | 2*8 | 3*9 | 1 | 1 | 0.39 |
| 40 | 11 degrees | 2*8 | 3*9 | 1 | 1 | 0.4 |
| 40 | 11 degrees | 2*9 | 3*9 | 1 | 1 | 0.4 |
About us
MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.
KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.
MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
