Forging Hammer Drill Parts T38 T45 T51 Drill Pipe Couplings Sleeve

Forging Hammer Drill Parts T38 T45 T51 Drill Pipe Couplings Sleeve

    • Forging Hammer Drill Parts T38 T45 T51 Drill Pipe Couplings Sleeve
    • Forging Hammer Drill Parts T38 T45 T51 Drill Pipe Couplings Sleeve
    • Forging Hammer Drill Parts T38 T45 T51 Drill Pipe Couplings Sleeve
  • Forging Hammer Drill Parts T38 T45 T51 Drill Pipe Couplings Sleeve

    Product Details:

    Place of Origin: China
    Brand Name: KSQ

    Payment & Shipping Terms:

    Minimum Order Quantity: negociated one
    Price: negociated one
    Packaging Details: wooden box or plastic box
    Delivery Time: 10-15 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 100000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Model: Couplings/coupling Sleeves Type: Drilling Tool Parts
    Machine Type: Drilling Tool, Drilling Equipment Processing Type: Forging
    Use: Ore Mining Color: As Customers' Requirements
    Size: 150mm-210mm

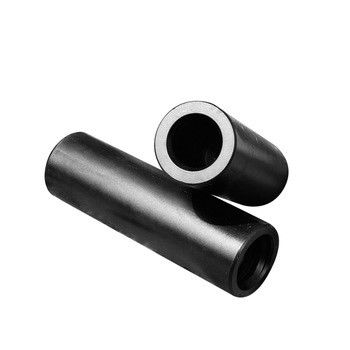

    Forging Hammer Drill Parts T38 T45 T51 Drill Pipe Couplings Sleeve



    Couplings sleeve are used to well connect the shank adapter to the drill rods or well contact two extensionrods for transmitting energy. It has standard type coupling and crossover coupling.



    Applications

    R25, R28, R32, R38

    Used in drifting and tunneling.



    T38, T45, T51

    Used in benching and long hole drilling.



    Processing

    CNC milling and proprietary heat treatment process



    Product name: Coupling sleeve,thread couplings,adapter sleeve
    Aplication: Coupling sleeve with various type of thread,widely
    used for extension rod and drill bits connection.
    Material High quality alloy steel
    Type Full bridge,semi-bridge
    Thread type R25, R28, R32, R38, T38,T45,T51,R28-R32,R28-R38,R32-T38,R32-R38,R25-R32,R32-T45
    Dia: 1 3/8"-3 1/32(34mm-77mm)
    Length: 5 7/8-9 1/4(150mm-210mm)





    the top hammer drilling tools,such as Tapered drill rod,integral drill rod,thread drill rod,thread button bits,shank adapter,extension rod,MF drill rod,speed drill rod,bench drilling rods....



    Specification

    Coupling Sleeve
    Length Diameter Thread Weight Part Number
    mm inch mm inch   kg
    T38 Coupling Sleeve
    190 7 1/2 55 2 1/6 T38 2.1 4148300803
    T45 Coupling Sleeve
    210 8 1/4 63 2 1/2 T45 3.0 4148300881
    210 8 1/4 66 2 3/5 T45 3.3 4148300882
    T51 Coupling Sleeve
    225 8 6/7 71 2 4/5 T51 4.6 4148300961
    225 8 6/7 76 3 T51 4.8 4148300962
    235 9 1/4 72 2 5/6 T51 4.7 4148300963
    235 9 1/4 77 3 T51 4.9 4148300964
