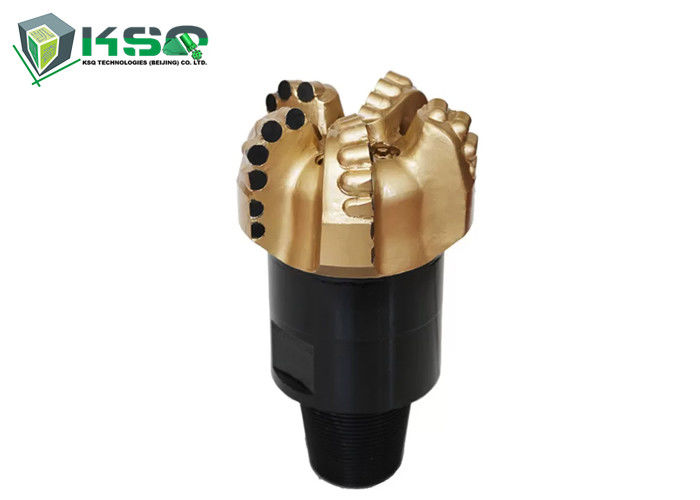

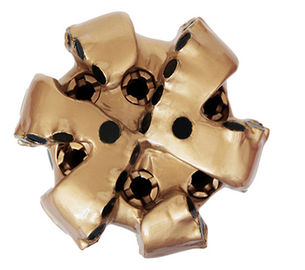

API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit

API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit

  • API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit
  • API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit
  • API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit
  • API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit
API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit
Product Details:
Place of Origin: China
Brand Name: MIRCO
Certification: ISO
Model Number: Matrix Body PDC Drill Bit
Payment & Shipping Terms:
Price: negociated price
Packaging Details: playwood box
Delivery Time: 15-20 days
Payment Terms: Western Union, L/C, T/T
Contact Now
Detailed Product Description
Item: PDC Diamond Drill Bit Type: Drill Bit
Machine Type: Drilling Tool Material: Carbide, Steel, Tungsten Carbide
Processing Type: Forging Application: Water Well Drilling And Oil Exploration
Size: 6", 81/2", 9 1/2", 12 1/4" IADC Code: M323 M332 M333 M121 M221
PDC Bit Nozzles: 4, 5, 6, 7, 8, 9 Connect Thread: 3 1/2" API Pin, 4 1/2" API Pin Etc
High Light:

stone drilling tools

,

tungsten carbide drill bits

API Certificated Diamond Oil Drill Bit PDC Drill Bit With Matrix Body



Features of PDC drill bit

1. Cutting structure is force balanced and bit blade is asymmetrically designed so that the load on bit is balanced that resulting better stability of the bit.
2. Main cutter are high performance PDC cutters to insure service life of the bit while improving ROP.
3. Cutter exposure is optimized to insure the oil bit can achieve higher ROP is soft to medium formations.
4. Shock absorbers are designed to make the bit capable of drilling through formations with hard stringers.
5. Hydraulic system of the bit is optimized using dynamic flow pattern simulation technology to enhance cleaning and cooling effects of the bit to effectively prevent bit from balling.



Use: Oil well, water well, mining, explorer well drilling.
Suitable Formation: Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble.
Size: 5 7/8", 6", 6 1/2", 8 1/2", 9 1/2", 9 5/8", 9 7/8", 12 1/4", etc.
Body Type: Matrix or Steel
Cutter Sizes: 5/16"(8mm), 1/2"(13mm), 5/8"(16mm), 3/4"(19mm), etc.
NO. Of blades: 2~8



Specifications

Regular Sizes

Regular IADC

API Reg Pin

Make-up Torque(N.m)

3 7/8"(98.4mm)

126/216/637

2 3/8

4100~4700

4 5/8"(117.4mm)

126/216/517/537/637

2 7/8

6100~7500

5 1/4"(133.3mm)

126/216/517/537/637

3 1/2

9500~12200

5 5/8"(142.8mm)

126/216/517/537/637

3 1/2

9500~12200

5 7/8"(149.2mm)

126/216/517/537/637

3 1/2

9500~12200

6"(152.4mm)

126/127/216/517/537/617/637

3 1/2

9500~12200

6 1/4"(158.7mm)

126/127/216/517/537/617/637

3 1/2

9500~12200

6 1/2"(165mm)

126/127/216/517/537/617/637

3 1/2

9500~12200

7 1/2"(190mm)

126/216/517/537

4 1/2

16300~21700

7 5/8"(193mm)

126/216/517/537

4 1/2

16300~21700

7 7/8"(200mm)

126/216/517/537

4 1/2

16300~21700

8 1/2"(215.9mm)

117/127/217/437/517/537/617/637

4 1/2

16300~21700

9 1/2"(241.3mm)

117/127/217/437/517/537/617/637

6 5/8

38000~43400

9 7/8"(250.8mm)

117/127/217/437/517/537/617/637

6 5/8

38000~43400

10 5/8(269.8mm)

117/127/137/217/517/537/617/637

6 5/8

38000~43400

11 5/8(295.3mm)

117/127/137/217/517/537/617/637

6 5/8

38000~43400

12 1/4"(311.1mm)

114/127/217/437/517/537/617/637

6 5/8

38000~43400

13 5/8"(346.0mm)

127/217/517/537/617/637

6 5/8

38000~43400

14 3/4"(374.6mm)

127/217/517/537/617/637

7 5/8

46100~54200

17 1/2"(444.5mm)

114/115/125/215/515/535/615/635

7 5/8

46100~54200

26"(660.4mm)

114/115/125/215/515/535/615

7 5/8

46100~54200



API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit 0



About us



MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.



KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.



MIROC® Rock Drilling and Ground Support Tools include:



Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers



API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit 1API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit 2API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit 3API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit 4API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit 5API Certificated Diamond Oil Drill Bit Matrix Body PDC Drill Bit 6
