AQ NQ HQ PQ Impregnated Diamond Core Bits Mineral Exploration Industry

AQ NQ HQ PQ Impregnated Diamond Core Bits Mineral Exploration Industry

    • AQ NQ HQ PQ Impregnated Diamond Core Bits Mineral Exploration Industry
    • AQ NQ HQ PQ Impregnated Diamond Core Bits Mineral Exploration Industry
    • AQ NQ HQ PQ Impregnated Diamond Core Bits Mineral Exploration Industry
  • AQ NQ HQ PQ Impregnated Diamond Core Bits Mineral Exploration Industry

    Product Details:

    Place of Origin: China
    Brand Name: Mirco

    Payment & Shipping Terms:

    Minimum Order Quantity: negociated one
    Price: negociated one
    Packaging Details: wooden box or steel box
    Delivery Time: 10-15 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 5000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Model: Core Drill Bit Type: AQ BQ HQ NQ PQ
    Machine Type: Drilling Tool, Drilling Equipment Process: Forging
    Material: Diamond, Impregnated Diamond Etc Application: Geological Drilling And Mineral
    Matrix Height: 12mm Or Customized

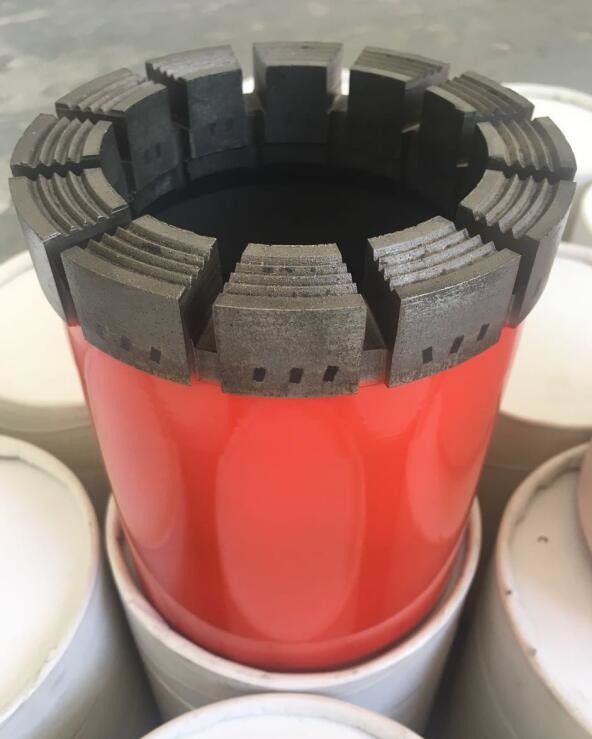

    AQ NQ HQ PQ Impregnated Diamond Core Bits Mineral Exploration Industry​


    Diamond bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application.The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series.The matrix layer of the crown contains a uniform distribution of these crystal that are embedded in a powdered metal bond.

    The matrix of our impregnated bits is designed to expose new diamonds to the bits' cutting face as wear occurs.Fast penetration rate is maintained as a result of this action.

    Our impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.


    Features

    • High penetration rate and drilling efficiency.
    • Long service life;
    • Good gauge effect;
    • Good performance in medium hard rocks and hard rocks;
    • Wide usable range, Impregnated diamond core bits are the most commonly useful bits in the mineral exploration industry.



    Specification
    Double tube surface
    Size( surface exploration drill Matric system(mm) Imperial system( in )
    Hole diameter Core diameter Hole diameter Core diameter
    BQ 60 36.4 2.36 1.43
    NQ 75.7 47.6 2.98 1.88
    HQ 96.1 63.5 3.78 2.5
    PQ 122.7 85 4.83 3.34
    Triple tube surface
    NQ3 75.7 45 2.98 1.78
    HQ3 96.1 61.1 3.78 2.41
    PQ3 122.7 83 4.83 3.27

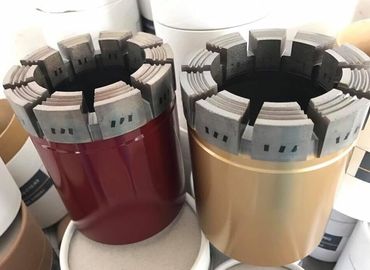

    AQ NQ HQ PQ Impregnated Diamond Core Bits Mineral Exploration Industry


    Package

    AQ NQ HQ PQ Impregnated Diamond Core Bits Mineral Exploration Industry
