| Place of Origin: | China |
| Brand Name: | Mirco |
| Minimum Order Quantity: | negociated one |
|---|---|
| Price: | negociated one |
| Packaging Details: | wooden box or plastic box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Model: | Tapered Bit | Type: | Drill Bit |
|---|---|---|---|
| Machine Type: | Drilling Tool, Drilling Equipment | Material: | Tungsten Carbide & Steel |
| Processing Type: | Forging | Use: | Mining Drilling |
| Bit Diameter: | 32mm 34mm 36mm 38mm 40mm 42mm Etc | Taper Angle: | 7/11/12 Degree |
| High Light: | industrial drill bits,milling drill bits |
||

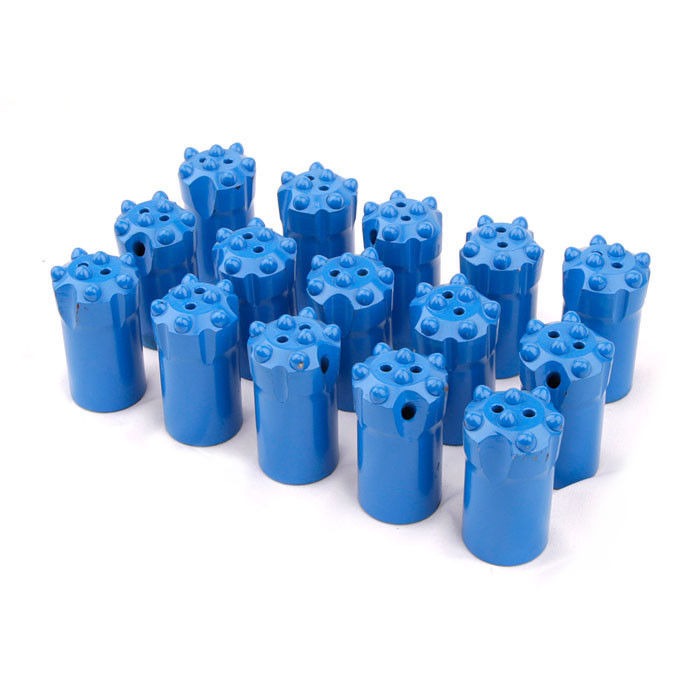

Blue Tungsten Carbide Buttons , Tipped Tapered Drill Bits For Rock Drilling
Product Characteristic:
1 .Button bit taper angle: 7°,11°,12°
2. Length: 50/55/71/80 mm
3. Diameter: 20-45 mm
4. Button bit shape: spherical/ballistic/conical
5. Socket inside diameter: 15/19/22/25(mm)
6. Material and process: high quality alloy steel bar and tungsten carbides, through heat treatment
Application:
The taper drill bit is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.
Product Feature:
We can design and manufacture according to customers' samples or drawings of the Bit Dia., No. of air / water holes, carbide button shape and the face shape.
Our button bit is made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.
Comparing with tapered chisel bits and tapered cross bits, button bits has higher technology, much longer primary drilling time and higher drilling efficiency.
According to the tungsten carbide insert, tapered button bits can be divided into the types of hemispherical, conical andparabolic button, etc.
| Description | Diameter | Length | No. of buttons | Weight |
| mm | mm | kg | ||
| button bit | 26 | 50 | 5 | 0.2 |
| Taper:a=7°,11°,12° | 27 | 50 | 5 6 | 0.2 |
| Socket inside Dia. D=19, 22, 25 | 28 | 50 | 4 5 | 0.2 |
| 29 | 50 | 4 | 0.2 | |
| 30 | 50 80 | 4 5 6 7 | 0.2 0.3 | |
| 32 | 50 55 71 80 | 5 6 7 8 | 0.2 0.22 0.3 | |
| 33 | 50 55 71 80 | 6 7 8 9 | 0.2 0.3 0.36 | |
| 34 | 50 55 | 6 7 9 | 0.22 0.3 | |
| 35 | 55 71 80 | 7 8 | 0.22 0.3 0.37 | |
| 36 | 50 55 | 4 5 6 7 | 0.3 0.35 | |
| 37 | 55 | 7 | 0.3 | |
| 38 | 50 55 | 4 6 7 | 0.25 0.35 | |
| 40 | 50 55 | 4 6 7 | 0.35 | |
| 41 | 50 55 71 | 7 | 0.35 | |
| 42 | 50 | 4 5 | 0.4 | |
| 45 | 50 55 71 | 6 7 | 0.5 |
| Description | Diameter | Length | Weight |
| mm | mm | kg | |
| cross bit | 24 | 71 80 | 0.18 |
| Taper:a=7°,11°,12° | 26 | 71 80 | 0.19 |
| Socket inside Dia. D=19, 22, 25 | 28 | 71 80 | 0.19 |
| 29 | 71 80 | 0.2 | |
| 30 | 50 67 71 80 | 0.3 | |
| 32 | 50 67 71 80 | 0.3 | |
| 33 | 71 80 | 0.32 | |
| 34 | 67 71 80 | 0.34 | |
| 35 | 67 71 80 | 0.35 | |
| 36 | 71 80 | 0.36 | |
| 38 | 67 71 80 | 0.42 | |
| 40 | 71 80 | 0.43 | |
| 41 | 71 | 0.45 | |
| 42 | 69 80 | 0.46 | |
| 44 | 80 | 0.47 | |
| 45 | 80 | 0.5 | |
| 46 | 80 | 0.51 | |
| 48 | 80 | 0.53 | |
| 50 | 80 | 0.6 | |
| 55 | 85 | 0.7 |
