    Product Details:

    Place of Origin: ShanDong, China(Mainland)
    Brand Name: MIROC
    Certification: GB / API / ISO
    Model Number: Taper Button bits

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Price: negotiation
    Packaging Details: Wooden Box or Based on Customers
    Delivery Time: 1-15 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 900000 pieces per month
    Contact Now
    Detailed Product Description
    Degree: 7°, 11°, 12° Processing Type: Hot-pressing
    Color: Based On Customers Requirements Use: Ore Mining
    Material: 45CrNiMoV, 42CrMo Machine Type: Drilling Tools

    Product Description

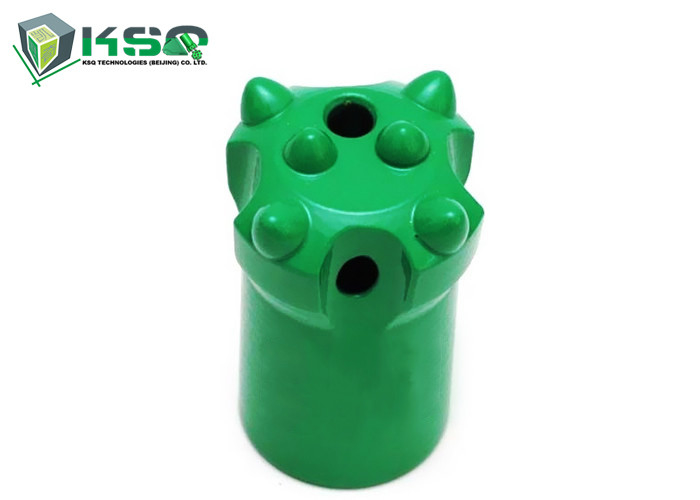

    MIROC drilling Green Taper Button Bit 7D-34mm with high quality raw materials for Hard rock

    Product 7D Taper drill bit
    Diameter 34mm
    Buttons 2x7mm,5x8mm
    Flushing hole No. Front 1, Side 1.
    Weight 0.33 KG
    Color Green (customized according to customer needs)

    Tapered Rock Drill Bits we have three types: taper chisel bit, taper cross bit and taper button bit. It's suitable for H22mm and H25mm taper rock drill rods use. It have three taper degree: 7°, 11°, 12°. It's widely used for hard rock(f=8~18) drilling use. Taper button bits is the best sales product.



    Taper Button Bits:

    1) Type: Taper button bits

    2) Shank Hex.Size: 22mm,25mm

    3) Diameter: 30-42mm.

    4) Taper degree: 7°11°12°

    5) Buttons quantity: 4, 5, 6, 7, 8

    6) Package: Plastic case, wooden case.



    MIROC drilling Green Taper Button Bit 7D-34mm with high quality raw materials for Hard rock



    Specification



    7°11°12° Taper Button Bit

      Bit Dia. Buttons and Size (mm) Flushing Hole Weight
      mm Front Gauge Front  Side kg
    1 32 1x8  3x8 1 1 0.24
    2 33 2x7  5x7 2 1 0.26
    3 34 2x7  4x7 1 1 0.29
    4 35 2x7  5x8 1 1 0.33
    5 36 2x7  5x8 1 1 0.37
    6 38 1x8  3x9 1 1 0.37
    7 40 1x8  3x9 1 1 0.38
    8 41 2x7  5x9 1 1 0.42
    9 42 2x8 5x9 1 1 0.43





    Chisel Bit, 7 ° ,  11° , 12°
      Length (mm) Chisel Size (H x W) mm Weight (Kg)
    1 26 10x7 0.17
    2 28 10x7 0.18
    3 30 13.5x8 0.22
    4 32 13.5x8 0.24
    5 34 13.5x8 0.27
    6 36 13.5x8 0.3
    7 38 13.5x8 0.33
    8 38 15x9 0.33
    9 40 3.5x9.2 0.38
    10 40 15x9.8 0.38
    11 42 13.5x9.2 0.41
    12 42 15x9.8 0.41
    13 43 13.5x9.2 0.42



    KSQ Related Rock Drilling Tools

    (1) Integral Drill Rod– chisel bit integral rod and plug hole integral drill steel,

    Shank H19 x 108mm and H22 108mm.


    (2) Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7, 11, 12 degree


    (3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming bit,extension rod, MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.


    (4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, , Furukawa, Gardner Genver, Ingersoll Rand etc.


    (5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit (diameter 80mm - 305mm)
