| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | Taper Button Bit |
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Supply Ability: | 20000 pieces per month |
| Model: | 12degree | Machine Type: | Drilling Tool, Drilling Equipment |
|---|---|---|---|
| Processing Type: | Forging | Type: | Drill Bit |
| Material: | Carbon Steel | Use: | Mining Drilling |
| Product Name: | Tapered Button Drill Bit | Bit Diameter: | 28--41mm |
| High Light: | industrial drill bits,hardened steel drill bits |
||
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered cross type bits if the goal is to minimize hole deviation in small hole range drilling. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning. Used in drifting and tunneling.
Features:
1. Tapered button bits connect with tapered drill rod for drilling holes
2. Stale and mature welding technology ensure good quality of bits
3. Accurate dimension of taper degree perfectly matches the rods
4. Work reliable and very cost-effective
Applications:
• Underground mining
• Dimensional Stone Industry
• Tunneling,quarrying
we can design and manufature according to your requirment of diamater,number of flushing holes,carbide button shape and face shape.
Specification

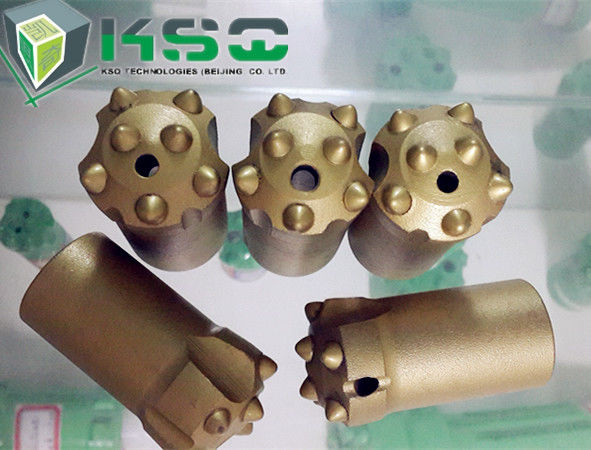

Tapered Rock Drilling Tools - 12° Button bit, Short skirt
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Part Number | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | kg | |
| 28 | 1 1/9 | 1x7 | 3x7 | 20° | 1 | 1 | 0.2 | 4148300255 |
| 28 | 1 1/9 | 1x7 | 4x7 | 35° | 1 | 1 | 0.2 | 4148300256 |
| 29 | 1 1/7 | 1x7 | 3x7 | 40° | 1 | 1 | 0.21 | 4148300257 |
| 30 | 1 1/6 | 1x7 | 3x7 | 40° | 1 | 1 | 0.22 | 4148300258 |
| 30 | 1 1/6 | 1x7 | 4x7 | 35° | 1 | 1 | 0.22 | 4148300259 |
| 30 | 1 1/6 | 2x7 | 4x7 | 30° | 1 | 1 | 0.22 | 4148300260 |
| 32 | 1 1/4 | 2x7 | 5x7 | 40° | 2 | 1 | 0.24 | 4148300261 |
| 33 | 1 2/7 | 2x7 | 5x7 | 35° | 1 | 1 | 0.25 | 4148300262 |
| 34 | 1 1/3 | 2x7 | 5x8 | 35° | 1 | 1 | 0.29 | 4148300263 |
| 35 | 1 3/8 | 2x7 | 4x7 | 35° | 1 | 1 | 0.33 | 4148300264 |
| 35 | 1 3/8 | 2x7 | 5x8 | 35° | 2 | 1 | 0.33 | 4148300265 |
| 35 | 1 3/8 | 2x7 | 5x9 | 35° | 1 | 1 | 0.33 | 4148300266 |
| 36 | 1 3/7 | 2x7 | 5x9 | 35° | 1 | 1 | 0.37 | 4148300267 |
| 37 | 1 1/2 | 2x7 | 5x9 | 40° | 1 | 1 | 0.38 | 4148300268 |
| 38 | 1 1/2 | 1x9 | 5x9 | 40° | 1 | 1 | 0.4 | 4148300269 |
| 38 | 1 1/2 | 2x7 | 5x9 | 35° | 1 | 1 | 0.4 | 4148300270 |
Tapered Rock Drilling Tools - 12° Button bit, Long skirt
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Part Number | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | kg | |
| 41 | 1 3/5 | 2x7 | 5x9 | 35° | 1 | 1 | 0.41 | 4148300271 |
| 32 | 1 1/4 | 2x7 | 5x7 | 35° | 1 | 1 | 0.3 | 4148300272 |
| 33 | 1 2/7 | 2x7 | 5x7 | 35° | 1 | 1 | 0.31 | 4148300273 |
| 33 | 1 2/7 | 2x7 | 6x7 | 40° | 2 | 1 | 0.31 | 4148300274 |
| 35 | 1 3/8 | 2x7 | 6x7 | 40° | 2 | 1 | 0.35 | 4148300275 |
| 38 | 1 1/2 | 2x7 | 5x9 | 35° | 1 | 1 | 0.41 | 4148300276 |
| 41 | 1 3/5 | 2x7 | 5x9 | 35° | 1 | 1 | 0.42 | 4148300277 |
| 35 | 1 3/8 | 2x7 | 5x9 | 35° | 1 | 1 | 0.38 | 4148300278 |
| 36 | 1 3/7 | 2x7 | 5x9 | 35° | 1 | 1 | 0.39 | 4148300279 |
| 38 | 1 1/2 | 2x7 | 5x9 | 35° | 1 | 1 | 0.41 | 4148300280 |
KSQ Related Rock Drilling Tools
(1) Integral Drill Rod– chisel bit integral rod and plug hole integral drill steel,
Shank H19 x 108mm and H22 108mm.
(2) Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7, 11, 12 degree
(3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming bit,extension rod, MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.
(4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, , Furukawa, Gardner Genver, Ingersoll Rand etc.
(5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit (diameter 80mm - 305mm)
Packaging:Carton or Wooden Box
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
Company Information
MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.
KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.
MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
