Thread Crossover Drill Coupling High Strength Alloy Steel For Tunneling

Thread Crossover Drill Coupling High Strength Alloy Steel For Tunneling

    • Thread Crossover Drill Coupling High Strength Alloy Steel For Tunneling
    • Thread Crossover Drill Coupling High Strength Alloy Steel For Tunneling
    • Thread Crossover Drill Coupling High Strength Alloy Steel For Tunneling
  • Thread Crossover Drill Coupling High Strength Alloy Steel For Tunneling

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Coupling Sleeve

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pieces
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Machine Type:: Drilling Tool Product Name: Thread Coupling Sleeve And Crossover Coupling
    Thread: R25,R28,R32,R38,T38,T45,T51 Diameter: 35mm-77mm (or 1 3/8 Inch To 3 Inch)
    Length: 150mm-235mm (or 6 Inch To 9 1/4 Inch)



    Product Description



    Couplings sleeve are used to well connect the shank adapter to the drill rods

    or well contact two extensionrods for transmitting energy. It has standard type

    coupling and crossover coupling.



    Basic Information



    Product Name:

    Thread crossover coupling and Crossover Coupling

    Thread

    R25,R28,R32,R38,T38,T45,

    Diameter

    45mm-63mm (or 1 3/8 inch to 1 7/9 inch)

    Length

    150mm-210mm (or 6 inch to 8 1/4 inch)

    Material:

    High strength alloy steel bar

    Type

    full-bridge, semi-bridge etc.

    Color

    Green, Gold, Black or based on customer requirements.

    MOQ:

    No MOQ required for testing and trial order



    Applications



    R25, R28, R32, R38

    Used in drifting and tunneling.



    T38, T45, T51

    Used in benching and long hole drilling.



    Processing



    CNC milling and proprietary heat treatment process



    Competitive Advantage


    High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

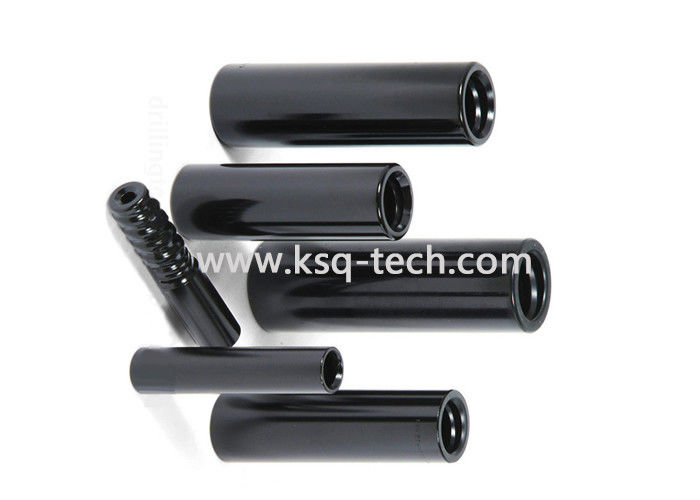

    Pictures



    Thread Crossover Drill Coupling High Strength Alloy Steel For TunnelingThread Crossover Drill Coupling High Strength Alloy Steel For Tunneling

    Thread Crossover Drill Coupling High Strength Alloy Steel For Tunneling


    Specification

    Crossover Coupling
    Length Diameter Thread Weight Part Number
    mm inch mm inch   kg
    R25-R32
    150 6    45 1 7/9 R25-R32 1.1 4148300432
    160 6 2/7 45 1 7/9 R25-R32 1.2 4148300433
    R25-R38
    160 6 2/7 56 2 1/5 R25-R38 2.5 4148300434
    170 6 2/3 56 2 1/5 R25-R38 3.2 4148300435
    R28-R32
    160 6 2/7 45 1 7/9 R28-R32 1.2 4148300485
    160 6 2/7 56 2 1/5 R28-R32 2.5 4148300486
    R28-R38
    160 6 2/7 55 2 1/6 R28-R38 1.8 4148300584
    170 6 2/3 55 2 1/6 R28-R38 2.0 4148300585
    180 7    55 2 1/6 R28-R38 2.2 4148300586
    210 8 1/4 55 2 1/6 R28-R38 2.8 4148300587
    R28-T38
    170 6 2/3 56 2 1/5 R28-T38 2.1 4148300588
    180 7    56 2 1/5 R28-T38 2.2 4148300589
    210 8 1/4 56 2 1/5 R28-T38 2.8 4148300590
    R28-T45
    190 7 1/2 63 2 1/2 R28-T45 3.2 4148300591


    Keywords



    Thread coupling sleeve, R25 R28 R32 R38 T38 T45 T51 coupling sleeve

    Crossover coupling, full bridge coupling, semi- bridge coupling



    Manguito de acoplamiento de rosca, manguito de acoplamiento R25 R28 R32 R38 T38 T45 T51
    Acoplamiento Crossover, acoplamiento de puente completo



    Packaging

    Packaging:Carton or Wooden Box

    Thread Crossover Drill Coupling High Strength Alloy Steel For Tunneling


    Our Services



    KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

    • Hazardous environment
    • Acts, regulations, and other government guidelines that has to be followed
    • Significant differences in the way people work, mostly due to physical constraints
    • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
    Company Information


    KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries.



    KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.



    Our portfolio includes:

    Consumables used in the mining and construction industries
    Equipment used in the mining and construction industries
    Spare parts used for the equipment we sell for the mining and construction industries
    Green technologies, such as products that reduce electric consumption or use alternate sources of energy (solar, wind, etc.)
