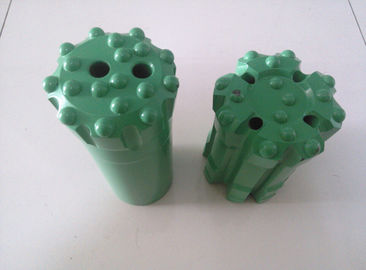

R32 R38 Retractable Drill Bit Diameter 45 - 89mm For Drifting / Tunneling

R32 R38 Retractable Drill Bit Diameter 45 - 89mm For Drifting / Tunneling

    • R32 R38 Retractable Drill Bit Diameter 45 - 89mm For Drifting / Tunneling
    • R32 R38 Retractable Drill Bit Diameter 45 - 89mm For Drifting / Tunneling
    • R32 R38 Retractable Drill Bit Diameter 45 - 89mm For Drifting / Tunneling
    • R32 R38 Retractable Drill Bit Diameter 45 - 89mm For Drifting / Tunneling
  • R32 R38 Retractable Drill Bit Diameter 45 - 89mm For Drifting / Tunneling

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: 4148300737-4148300749

    Payment & Shipping Terms:

    Minimum Order Quantity: 50
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Payment Terms: T/T or L/C
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Type: Retrac Button Bit Material: Alloy Steel Bar And Tungsten Carbide
    Color: Green,blue,red Etc Face Shape: Flat Face
    Body Shape: Body Shape Thread: R32 R38



    Description

    Button bit is well known for its high wear resistance on soft to medium-hard  rock formations (between 55 Mpa to 165 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.Recommended for eliminating hole deviation.



    • Widely used drifting and tunneling
    • Bit face design is ideal for soft to medium rock formations
    • With Retrac Wings to help guide the bit in and out of the hole
    • Effective in straight hole drilling

      R32 R38 Retractable Drill Bit Diameter 45 - 89mm For Drifting / Tunneling

    specification

    1<

    Part Number Bit Diameter (mm) Bit Diameter (inch)

    Front Buttons

    (No. x mm)

    Gauge Buttons

    (No. x mm)

    4148300521 45 1 7/9 3x8 6x9
    4148300522 48 1 8/9 3x9 6x10
    4148300523 51 2 3x9 6x10
    4148300524 64 2 1/2 3x10, 1x10 6x11
    4148300525 64 2 1/2 4x10 8x10
    4148300526 76 3 4x11, 1x11 8x11
    4148300609 48 1 8/9 3x8 6x10
    4148300610 51 2 3x9 6x10

    2<

    Product Code and Brief Description Angle

    Front Flushing

    Holes

    Side Flushing

    Holes

    Weight

    (kg)

    R945-R32-S, R32 Retrac Button Bit,

    Spherical Buttons

    40° 3 - 1.1

    R948-R32-S, R32 Retrac Button Bit,

    Spherical Buttons

    30° 3 - 1.2

    R951-R32-S, R32 Retrac Button Bit,

    Spherical Buttons

    30° 3 - 1.4
    R1064-R32-S, R32 Retrac Button Bit, Spherical Buttons 35° 3 - 2.2
    R1264-R32-S, R32 Retrac Button Bit, Spherical Buttons 40° 2 - 2.2
    R1376-R32-S, R32 Retrac Button Bit, Spherical Buttons 35° 4 1 3.5

    R948-R32-S, R32 Retrac Button Bit,

    Spherical Buttons

    40° 3 - 1.2

    R951-R32-S, R32 Retrac Button Bit,

    Spherical Buttons

    35° 3 - 1.4



    Button bit and Insert types
    Spherical Button Characteristics:
    1.Universal button
    2.Good wear resistance
    3.Best suited for hard ground
    4.27000-48000PSI(180 to 320Mpa)
    5.Suited for abrasive to very abrasive drilling conditions

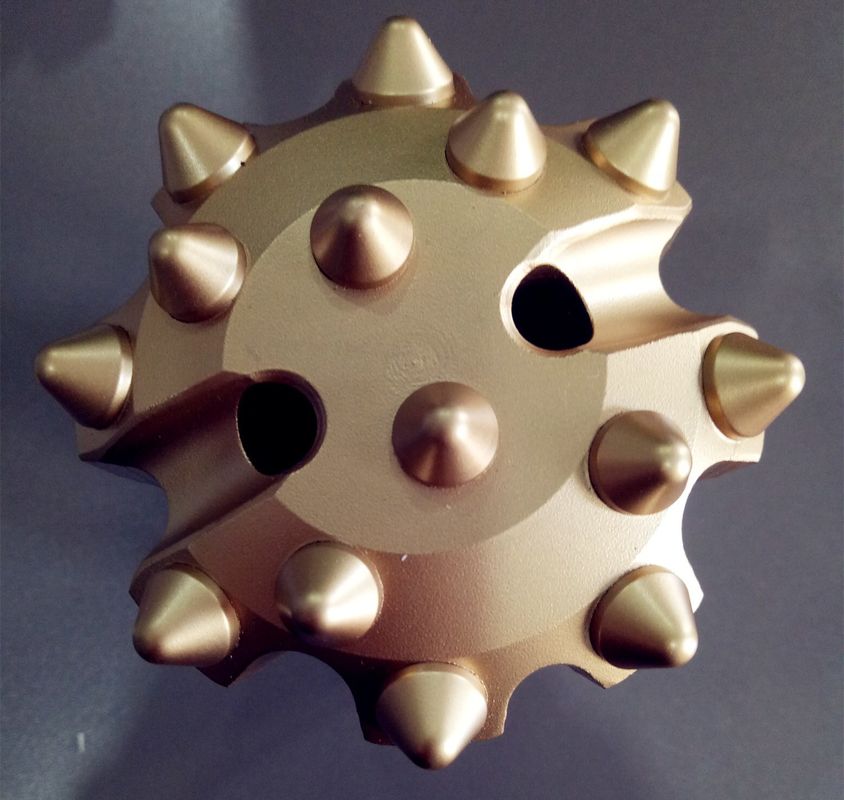

    Ballistic Button Characteristics:
    1.Fast Penetration
    2.Best suited for soft rock
    3.10000-20000PSI(70 to 140Mpa)
    4.Suited for non-abrasive drilling conditions



    Applications of rock drilling tools

    • Underground mining
    • Tunneling,quarrying



    Competitive Advantage

    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment





    Packaging

    Packaging:Carton or Wooden Box

    Threaded drilling bit R32, R38, T38, T45, T51 ,Dia32-152mm,Tungsten carbide



    Our Services



    KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

    • Hazardous environment
    • Acts, regulations, and other government guidelines that has to be followed
    • Significant differences in the way people work, mostly due to physical constraints
    • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
    Company Information

    KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.

    R32 R38 Retractable Drill Bit Diameter 45 - 89mm For Drifting / Tunneling
