| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | 4148301067-4148301076 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| Color: | Based On Customer Requirements | Material: | Tungsten Carbide |
|---|---|---|---|
| Processing: | CNC Milling | Type: | Atlas Copco Shank Adapters |
| Name: | Drill Shank Adapter | Length: | 485mm |
| High Light: | drill bit shank adapter,threaded shank drill bit adapter |
||

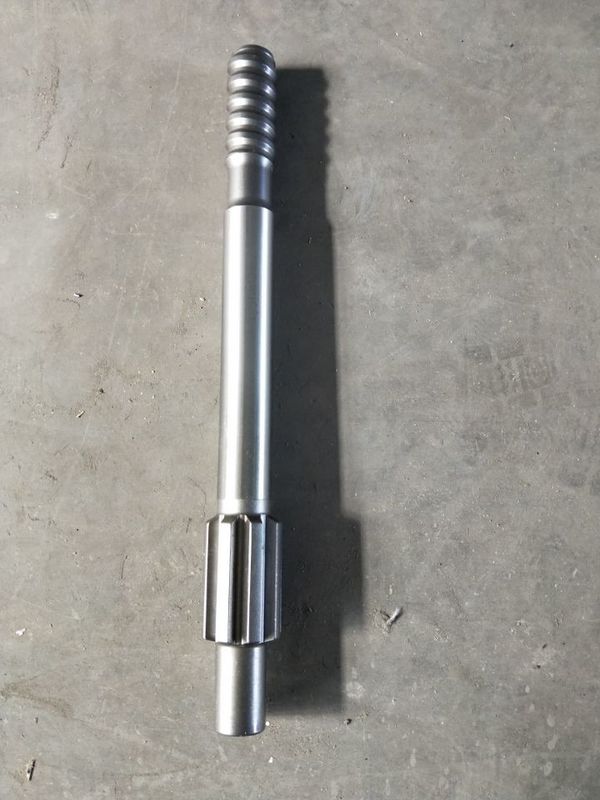

Description
In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
• Used in top hammer drilling systems
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: Atlas Copco Shank Adapters
Shank adapter equivalent to:
Applications
• Underground mining
• Tunneling
• Quarry
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
specification
| Part Number |
Product Code and Brief Description |
Thread | Length (mm) | Weight (kg) |
Flushing Hole Size (mm) |
| 4148301067 | COP 1238 [G1] | R32 | 500 | 4 | |
| 4148301068 | COP 1238 [G2] | T38 | 500 | 4.4 | |
| 4148301069 | COP 1238 [G3] | R38 | 485 | 4.2 | |
| 4148301070 | COP 1238 [G4] | T38 | 485 | 4.2 | |
| 4148301071 | COP 1238 [G5] | T45 | 500 | 5 | |
| 4148301072 | COP 1238 [G6] | R32 | 575 | 4.9 | |
| 4148301073 | COP 1238 [G7] | R38 | 575 | 5 | |
| 4148301074 | COP 1238 [G8] | T38 | 575 | 5.2 | |
| 4148301075 | COP 1238 [G9] | T38 | 575 | 5.7 | |
| 4148301076 | COP 1238 [G10] | T45 | 575 | 6.1 |
Packaging & Shipping
Wooden boxes or Carton boxes
Our Services
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
Shank adapter order information:
Rock Drill Type + Thread + Diameter + Length
Example:
(1) Rock drill Type: Atlas Copco COP1440, COP1550, COP1838
(2) Thread: R32, T38, T45, T51
(3) Diameter: 52mm
(4) Length: 525mm
If you have further questions, please do not hesitate to contact us at any time.
Contact Person: Mr. Yingkai Zhang
Tel: +86 18501231988
