F Thread Downhole Drilling Tools 50mm 60mm Od High Grade Steel For Rock

F Thread Downhole Drilling Tools 50mm 60mm Od High Grade Steel For Rock

  • F Thread Downhole Drilling Tools 50mm 60mm Od High Grade Steel For Rock
  • F Thread Downhole Drilling Tools 50mm 60mm Od High Grade Steel For Rock
  • F Thread Downhole Drilling Tools 50mm 60mm Od High Grade Steel For Rock
F Thread Downhole Drilling Tools 50mm 60mm Od High Grade Steel For Rock
Product Details:
Place of Origin: Shangdong,China
Brand Name: MIROC
Model Number: DTH Drill Pipes
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10-22days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Type: DTH Drill Pipes Length: 1000mm-3000mm
Diameter: 50mm 60mm Processing Type: Forging
Quality Level:: 95% Similarity To COP/SD/MISSION/QL/BR/DHD Etc Famous Brand MOQ:: No Requirement For Testing And Trial Order
High Light:

rock drill tools

,

downhole drilling tools

F thread DTH Drilling Tools 50mm 60mm OD High Steel DTH Drill Pipes for Rock



In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

DTH drilling enables drillers to reach hole depths that are double of what top hammer drilling can do. This is possible with the use of DTH Pipes and DTH Subs.

• High grade steel used on thread area and main drill pipe body
• Automated welding process used in joining the thread area and main drill pipe body

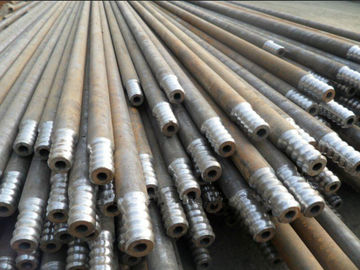

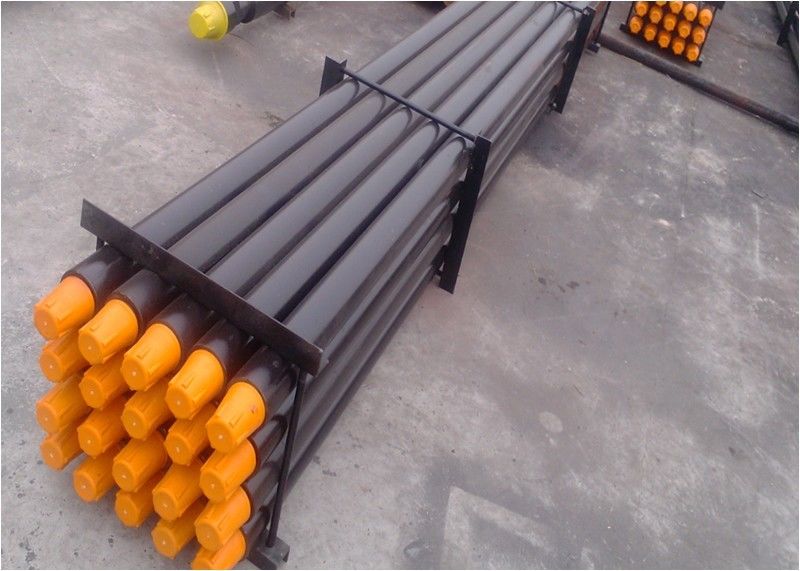

F Thread Downhole Drilling Tools 50mm 60mm Od High Grade Steel For Rock 0F Thread Downhole Drilling Tools 50mm 60mm Od High Grade Steel For Rock 1


Applications

• Underground mining
• Quarry benching operations
• Water well drilling



Competitive Advantage

High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



Specifications:


API thread F thread DTH Drilling Tools Down The Hole Drill Pipes Mining Drill Rods
Special Thread Drill Pipe
Item Diameter Length Wall thickness Thread Drill machine
Inch mm mm
1 3 1/2 89 4000 6 2 1/2" Z ECM695/760/780
2 3 1/2 89 2700 8 2 1/2" Z PIN
3 3 1/2 89 2740 8 3 1/2" API REG Box 2 1/2" Z PIN
4 4 102 4000 8 3 1/2" API REG Box 2 1/2" Z
5 4 102 2440 8 2 1/2" Z
6 4 102 4000 14 2 1/2" Z PIN
7 4 102 2740 8 3 1/2" API REG Box 2 1/2" Z PIN
8 4 1/2 114 6100-9150 8 3" BECO DM-H, DMM-2, DMM-3, DM30/45/50/L, T4W, T4BH, RD20
9 4 1/2 114 6100-9150 10 3" BECO
10 4 1/2 114 6100-9150 12 3" BECO
11 5 127 7620-10670 10 3 1/2" BECO
12 5 127 7620-10670 12 3 1/2" BECO
13 5 127 7620-10670 14 3 1/2" BECO
14 5 127 7620-10670 18 3 1/2" BECO
15 5 1/2 140 7620-10670 9 3 1/2" BECO
16 5 1/2 140 7620-10670 10 3 1/2" BECO
17 5 1/2 140 7620-10670 12 3 1/2" BECO
18 5 1/2 140 7620-10670 18 3 1/2" BECO
19 6 1/4 159 9144 14 4" BECO
20 6 1/4 159 1500-9500 10 4" BECO
21 6 1/4 159 10670 20 4" BECO
22 7 178 7620 14-25 4 1/2" BECO
23 7 178 9144 14-25 4 1/2" BECO
24 7 178 10670 14-25 4 1/2" BECO
25 7 5/8 194 7620 14-25 5 1/4" BECO
26 7 5/8 194 9144 14-25 5 1/4" BECO



Delivery time and Package

Delivery time: around 15-20days

Package: Carton or Wooden Box/Based on customers requirements
