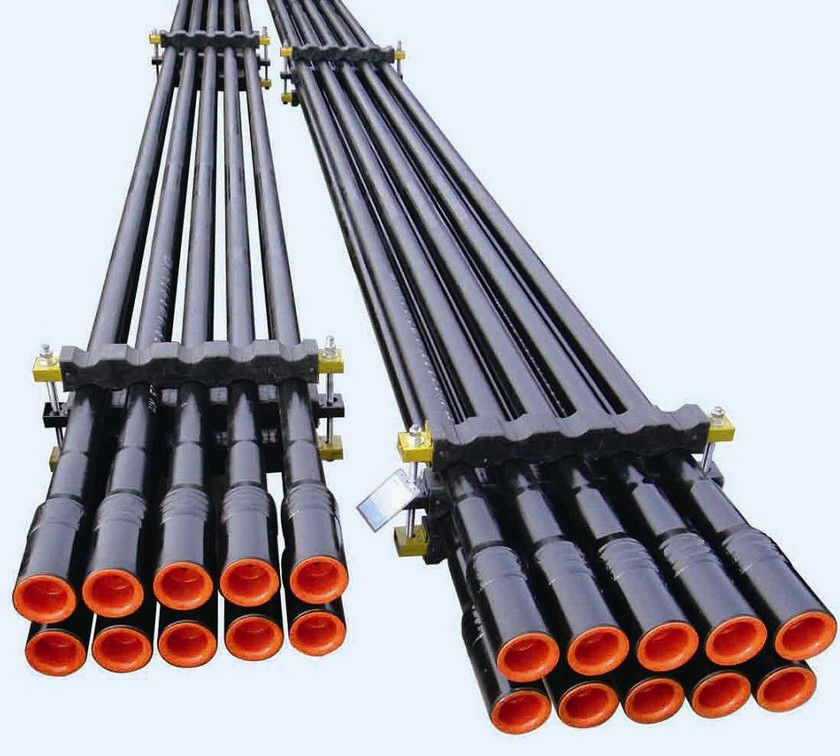

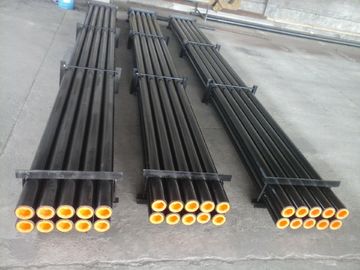

4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting

4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting

    • 4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting
    • 4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting
    • 4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting
    • 4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting
  • 4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting

    Product Details:

    Place of Origin: Shangdong,China
    Brand Name: MIROC
    Model Number: DTH Drill Pipes

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10-22days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 30000pcs per month
    Contact Now
    Detailed Product Description
    Type: DTH Drill Pipes Length: 1000mm-6000mm
    Diameter: 76mm 89mm Processing Type: Forging
    Quality Level:: 95% Similarity To COP/SD/MISSION/QL/BR/DHD Etc Famous Brand MOQ:: No Requirement For Testing And Trial Order






    4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting

    Basic Information

    Product Name DTH Drill Pipe
    Thread API Reg
    Diameter 4 inch
    Length R1
    Thickness 6mm
    Order Information Thread + Length + Diameter+Thickness
    MOQ 1 Pieces
    Color Black or based on customer requirements.



    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.



    DTH drilling enables drillers to reach hole depths that are double of what top hammer drilling can do. This is possible with the use of DTH Pipes and DTH Subs.

    • High grade steel used on thread area and main drill pipe body
    • Automated welding process used in joining the thread area and main drill pipe body.



    Applications

    • Underground mining
    • Quarry benching operations
    • Water well drilling



    Competitive Advantage

    High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



    Specifications:

    API thread F thread DTH Drilling Tools Down The Hole Drill Pipes Mining Drill Rods Atlas Copco ROC F6/ L6/ L8

    API Standard Drill Pipe
    Item Diameter Length Wall thickness Thread Wrench Flat
    Inch mm mm
    1 3 76 1000-6000 5 API 2 3/8" REG 57/64.5
    2 3 76 1000-6000 6 API 2 3/8" REG 57/64.5
    3 3 76 1000-9000 8 API 2 3/8" REG 57/64.5
    4 3 1/2 89 1000-6000 6 API 2 3/8" REG 70/64
    5 3 1/2 89 1000-6000 6 API 2 3/8" REG 70/64
    6 3 1/2 89 1000-9600 8 API 2 3/8" REG 70/64
    7 3 1/2 89 1000-9600 8 API 2 3/8" REG 70/64
    8 4 102 1000-9000 8 API 2 7/8" REG 76/89
    9 4 102 1000-9000 10 API 3 1/2" REG 76/89
    10 4 1/2 114 1500-7620 6 API 3 1/2" REG 89/95
    11 4 1/2 114 1500-9140 8 API 3 1/2" REG 89/95
    12 4 1/2 114 1500-9140 8 API 3 1/2" REG 89/95
    13 4 1/2 114 1500-9140 10 API 3 1/2" REG 89/95
    14 4 1/2 114 1500-9140 18 API 3 1/2" REG 89/95
    15 5 127 1500-9500 10 API 3 1/2" REG 89
    16 5 127 1500-9500 12 API 3 1/2" REG 89
    17 5 127 1500-9500 14 API 3 1/2" REG 89
    18 5 127 1500-9500 18 API 3 1/2" REG 89
    19 5 1/2 140 1500-9500 9 API 4 1/2" REG or 4" FH 114
    20 5 1/2 140 1500-9500 10 API 4 1/2" REG or 4" FH 114
    21 5 1/2 140 1500-9500 12 API 4 1/2" REG or 4" FH 114
    22 6 152 3000 12 API 4 1/2" REG or 4" IF /
    23 6 152 6000 12 API 4 1/2" REG or 4" IF /
    24 6 152 9144 12 API 4 1/2" REG or 4" IF /
    25 6 1/4 159 3000 12 API 4 1/2" REG or 4" IF 127
    26 6 1/4 159 6000 12 API 4 1/2" REG or 4" IF 127
    27 6 1/4 159 9144 12 API 4 1/2" REG or 4" IF 127
    28 7 178 3000 14 5 1/2" FH 127
    29 7 178 6000 14 5 1/2" FH 127
    30 7 178 9144 14 5 1/2" FH 127
    31 7 5/8 194 3000 14 6 5/8" FH 152
    32 7 5/8 194 6000 14 6 5/8" FH 152
    33 7 5/8 194 9144 14 6 5/8" FH 152


    Delivery time and Package

    Delivery time: around 15-20days

    Package: Carton or Wooden Box/Based on customers requirements


    Our Services

    KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

    • Hazardous environment
    • Acts, regulations, and other government guidelines that has to be followed
    • Significant differences in the way people work, mostly due to physical constraints
    • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
    4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting
    4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting
    4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting

     4 inch DTH Drill Rod with API Standard Drill Pipes for water well and blasting
