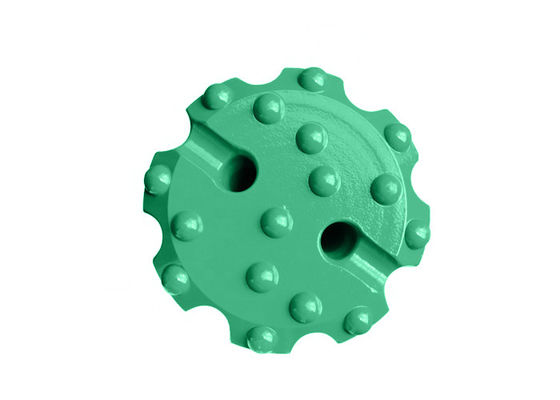

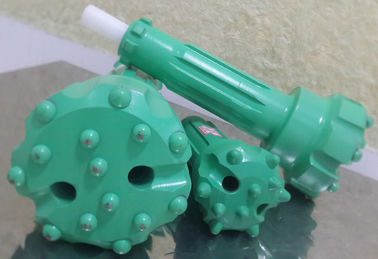

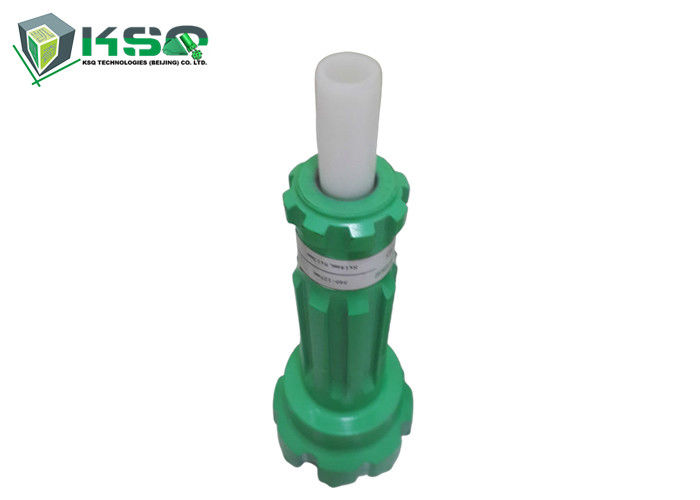

Green Color For Water Well down The Hole Hammer Drilling Dth Hammer Bit

Green Color For Water Well down The Hole Hammer Drilling Dth Hammer Bit

Green Color For Water Well  down The Hole Hammer Drilling Dth Hammer Bit
Green Color For Water Well  down The Hole Hammer Drilling Dth Hammer Bit
Green Color For Water Well  down The Hole Hammer Drilling Dth Hammer Bit
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: SGS certified, ISO
Model Number: DTH Bits
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: wooden box
Delivery Time: 15-20days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Color:: Green/Yellow Application:: Water Well Drilling, Quarry Drilling, Stone Drilling, Construction Rock Drilling
Shank:: DHD340 COP44 QL40 SD4 Mission40 Shank Hammer Type: DHD340 COP44 QL40 SD4 Mission40 Middle Air Pressure
Bit Diameter: 105mm 110mm 115mm 120mm 127mm Drilling Method: DTH Drilling
Product Name: DTH Hammer Bit
High Light:

dth hammer bits

,

dth button bits

DHD340 COP44 QL40 SD4 Mission40 DTH Bit for water well drilling



Green Color For Water Well  down The Hole Hammer Drilling Dth Hammer Bit 0
Concave Face

The all-around application bit face specifically for medium hard and homogenerous rock formations.

Good hole deviation control and good flushing capacity

Ballistic Button

Ballistic buttons are usually used as front buttons of DTH bits, suitable for medium abrasive and medium hard formation. They can also be used as gauge buttons if the rock is soft.

Green Color For Water Well  down The Hole Hammer Drilling Dth Hammer Bit 1
Concave Face

Spherical Button

Spherical/Domed/Round Button

Domed/Round Buttons are usually used as gauged buttons of DTH bits, suitable or very abrasive and very hard formations.

Green Color For Water Well  down The Hole Hammer Drilling Dth Hammer Bit 2 Convex Face

For high penetration rates in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, any may reduce the load and wear on gauge buttons, but poor hole deviation control.

Ballistic Button
Green Color For Water Well  down The Hole Hammer Drilling Dth Hammer Bit 3 Flat Face

This kind of face shape is suitable for hard to very hard and abrasive rock formation is applications with high air pressure. Good penetration rates and resistance to steel wash.

Spherical Button



Face: Flat Face, Concave Face, Convex Face
Tungsten Carbide: Ballistic Buttons, or Spherical Buttons
Color: Green or Based on Customer requirements



In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.



Applications

1. Underground mining

2. Quarry benching operations

3. Water well drilling



4 Inch High Air Pressure DTH Bit
DTH Button Bit Diameter Buttons and Size (mm) Flushing hole Weight
mm inch Front Gauge kg

DHD340A

COP44

105 4 1/8 5x13 6x14 2 8.5
110 4 3/8 6x13 7x14 2 8.8
115 4 1/2 7x13 7x14 2 9.0
120 4 3/4 7x13 8x14 2 9.8
127 5 7x14 8x14 2 11.0
SD4 105 4 1/8 5x13 6x14 2 9.0
110 4 3/8 6x13 7x14 2 9.5
115 4 1/2 7x13 7x14 2 9.8
120 4 3/4 7x13 8x14 2 11.5
127 5 7x14 8x14 2 12.3
QL40 105 4 1/8 5x13 6x14 2 9.0
110 4 3/8 6x13 7x14 2 9.2
115 4 1/2 7x13 7x14 2 9.5
120 4 3/4 7x13 8x14 2 10.3
127 5 7x14 8x14 2 11.5
Mission40 105 4 1/8 5x13 6x14 2 6.0
110 4 3/8 6x13 7x14 2 6.2
115 4 1/2 7x13 7x14 2 6.6
120 4 3/4 7x14 8x14 2 7.0
127 5 7x14 8x14 2 7.4



DTH Drill Bits/DTH hammer bits/DTH биты молоток/DTH martilyo bits/DTH บิตค้อน/DTH martillo de bits/สว่านเจาะลึก DTH/Brocas DTH

Green Color For Water Well  down The Hole Hammer Drilling Dth Hammer Bit 4

Features and Advantages:

We take pride in being the only manufacturers in China that has a diverse line of DTH bits that range from 3"-47"(76mm~1200mm) in diameter with most the leading hammer shanks.



Made from high quality alloy steel and advanced heat-treatment, our bits are ensured extreme protection against wear and fatigue. They're also available in four different bit-head designs - Convex, Flat, Concave and Drop center face, and four different inserts-Spherical,Ballistic,Semi-ballistic,Two-Step to tackle any challenge and rock formations.
