165*9144mm DTH Drilling Tools High Grade Steel Forging Type API Standard

165*9144mm DTH Drilling Tools High Grade Steel Forging Type API Standard

    • 165*9144mm DTH Drilling Tools High Grade Steel Forging Type API Standard
    • 165*9144mm DTH Drilling Tools High Grade Steel Forging Type API Standard
  • 165*9144mm DTH Drilling Tools High Grade Steel Forging Type API Standard

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: API
    Model Number: DTH Drill Pipe

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces DTH Pipe
    Price: negotiation
    Packaging Details: Bundle and Wooden Box
    Delivery Time: 10- 25 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 20000pcs per month
    Contact Now
    Detailed Product Description
    Type: DTH Drill Pipes Length: 1000mm-6000mm
    Diameter: 76mm 89mm 102mm Processing Type: Forging
    Quality Level:: 95% Similarity To COP/SD/MISSION/QL/BR/DHD Etc Famous Brand MOQ:: No Requirement For Testing And Trial Order

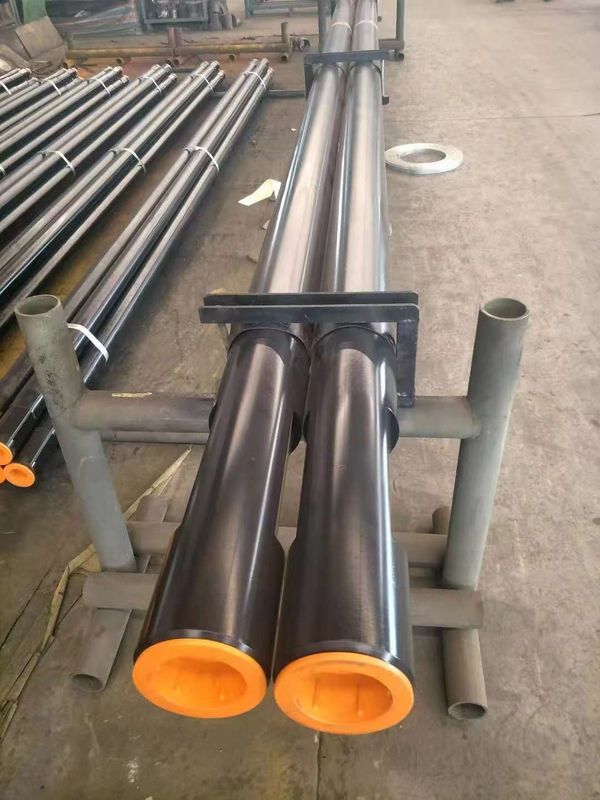

    165*9144mm Drill pipe High Grade Steel DTH Drilling Tools API Standard Drilling Pipe



    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.



    Product Name:

    DTH drill pipe

    Description:

    dth button bit are used for blast hole drilling and water well drilling project.

    Working with DTH drilling pipe and DTH drill bit, mainly applied in Mining,

    Marble quarry or well drilling and other construction projects.

    Quality level:

    95% similarity to COP/SD/MISSION/QL/BR/DHD etc famous brand

    MOQ:

    No requirement for testing and trial order

    Series:

    COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc



    Competitive Advantage

    High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



    Specification:



    API thread F thread DTH Drilling Tools Down The Hole Drill Pipes Mining Drill Rods Atlas Copco ROC F6/ L6/ L8

    API Standard Drill Pipe
    Item Diameter Length Wall thickness Thread Wrench Flat
    Inch mm mm
    1 3 76 1000-6000 5 API 2 3/8" REG 57/64.5
    2 3 76 1000-6000 6 API 2 3/8" REG 57/64.5
    3 3 76 1000-9000 8 API 2 3/8" REG 57/64.5
    4 3 1/2 89 1000-6000 6 API 2 3/8" REG 70/64
    5 3 1/2 89 1000-6000 6 API 2 3/8" REG 70/64
    6 3 1/2 89 1000-9600 8 API 2 3/8" REG 70/64
    7 3 1/2 89 1000-9600 8 API 2 3/8" REG 70/64
    8 4 102 1000-9000 8 API 2 7/8" REG 76/89
    9 4 102 1000-9000 10 API 3 1/2" REG 76/89
    10 4 1/2 114 1500-7620 6 API 3 1/2" REG 89/95
    11 4 1/2 114 1500-9140 8 API 3 1/2" REG 89/95
    12 4 1/2 114 1500-9140 8 API 3 1/2" REG 89/95
    13 4 1/2 114 1500-9140 10 API 3 1/2" REG 89/95
    14 4 1/2 114 1500-9140 18 API 3 1/2" REG 89/95
    15 5 127 1500-9500 10 API 3 1/2" REG 89
    16 5 127 1500-9500 12 API 3 1/2" REG 89
    17 5 127 1500-9500 14 API 3 1/2" REG 89
    18 5 127 1500-9500 18 API 3 1/2" REG 89
    19 5 1/2 140 1500-9500 9 API 4 1/2" REG or 4" FH 114
    20 5 1/2 140 1500-9500 10 API 4 1/2" REG or 4" FH 114
    21 5 1/2 140 1500-9500 12 API 4 1/2" REG or 4" FH 114
    22 6 152 3000 12 API 4 1/2" REG or 4" IF /
    23 6 152 6000 12 API 4 1/2" REG or 4" IF /
    24 6 152 9144 12 API 4 1/2" REG or 4" IF /
    25 6 1/4 159 3000 12 API 4 1/2" REG or 4" IF 127
    26 6 1/4 159 6000 12 API 4 1/2" REG or 4" IF 127
    27 6 1/4 159 9144 12 API 4 1/2" REG or 4" IF 127
    28 7 178 3000 14 5 1/2" FH 127
    29 7 178 6000 14 5 1/2" FH 127
    30 7 178 9144 14 5 1/2" FH 127
    31 7 5/8 194 3000 14 6 5/8" FH 152
    32 7 5/8 194 6000 14 6 5/8" FH 152
    33 7 5/8 194 9144 14 6 5/8" FH 152







    API thread F thread DTH Drilling Tools Down The Hole Drill Pipes Mining Drill Rods
    Special Thread Drill Pipe
    Item Diameter Length Wall thickness Thread Drill machine
    Inch mm mm
    1 3 1/2 89 4000 6 2 1/2" Z ECM695/760/780
    2 3 1/2 89 2700 8 2 1/2" Z PIN
    3 3 1/2 89 2740 8 3 1/2" API REG Box 2 1/2" Z PIN
    4 4 102 4000 8 3 1/2" API REG Box 2 1/2" Z
    5 4 102 2440 8 2 1/2" Z
    6 4 102 4000 14 2 1/2" Z PIN
    7 4 102 2740 8 3 1/2" API REG Box 2 1/2" Z PIN
    8 4 1/2 114 6100-9150 8 3" BECO DM-H, DMM-2, DMM-3, DM30/45/50/L, T4W, T4BH, RD20
    9 4 1/2 114 6100-9150 10 3" BECO
    10 4 1/2 114 6100-9150 12 3" BECO
    11 5 127 7620-10670 10 3 1/2" BECO
    12 5 127 7620-10670 12 3 1/2" BECO
    13 5 127 7620-10670 14 3 1/2" BECO
    14 5 127 7620-10670 18 3 1/2" BECO
    15 5 1/2 140 7620-10670 9 3 1/2" BECO
    16 5 1/2 140 7620-10670 10 3 1/2" BECO
    17 5 1/2 140 7620-10670 12 3 1/2" BECO
    18 5 1/2 140 7620-10670 18 3 1/2" BECO
    19 6 1/4 159 9144 14 4" BECO
    20 6 1/4 159 1500-9500 10 4" BECO
    21 6 1/4 159 10670 20 4" BECO
    22 7 178 7620 14-25 4 1/2" BECO
    23 7 178 9144 14-25 4 1/2" BECO
    24 7 178 10670 14-25 4 1/2" BECO
    25 7 5/8 194 7620 14-25 5 1/4" BECO
    26 7 5/8 194 9144 14-25 5 1/4" BECO




    Pictures:

    165*9144mm DTH Drilling Tools High Grade Steel Forging Type API Standard165*9144mm DTH Drilling Tools High Grade Steel Forging Type API Standard



    165*9144mm DTH Drilling Tools High Grade Steel Forging Type API Standard

    Applications

    • Underground mining
    • Quarry benching operations
    • Water well drilling
