| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | Taper Button Bit |
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Supply Ability: | 20000 pieces per month |
| Type: | Taper Button Bit | Material: | Alloy Steel Bar And Tungsten Carbide Bit |
|---|---|---|---|
| Color: | Green,blue,golden Etc | Processing Type: | Forging |
| Use: | Tunneling, Mining,Quarrying,Construction | ||
| High Light: | industrial drill bits,milling drill bits |
||

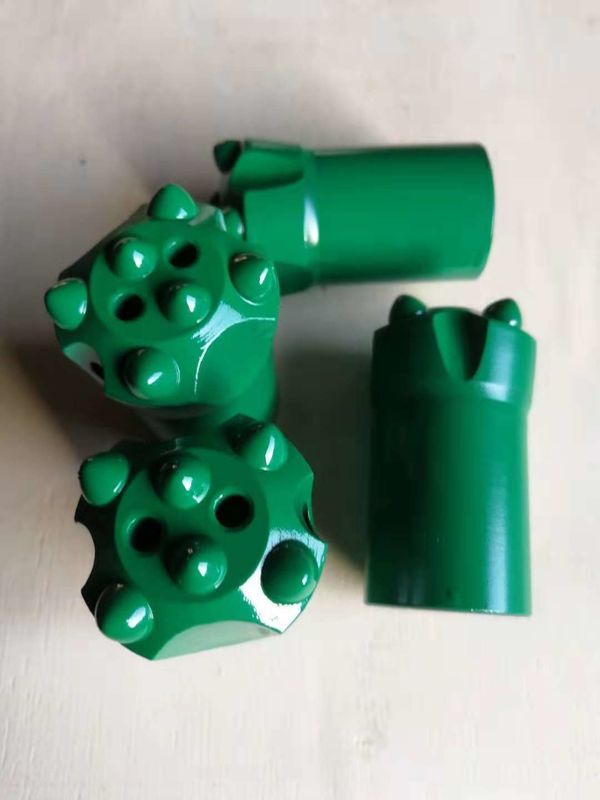

Diameter 28- 41mm Tapered Rock bits With long or short skirt Rock
For 7 / 11 / 12 Degree Drill Rod
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered cross type bits if the goal is to minimize hole deviation in small hole range drilling. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning. Used in drifting and tunneling.
Basic Information:
Taper drill bit- Taper 7° Taper, 11°, Taper 12°
|
Product Name: |
mining tungsten carbides taper button rock drill tool bit |
|||
|
Types |
Tapered chisel bits, Tapered cross bits, Tapered button bits |
|||
|
Application:: |
Tapered drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling |
|||
|
Feature: |
Tapered drill bits connect tapered drill steel of rock drill for drilling holes |
|||
|
Material: |
High quality carbide and high quality steel |
|||
|
MOQ: |
No requirement for testing and trial order |
|||
|
We can design and manufature according to your requirment of diameter, number air holes and carbide button shape. |
||||
|
Types of drill bits |
Diameter (mm) |
Taper Angle (Degree) |
Length (mm) |
Weight (kg) |
|
Tapered chisel bits |
20/22/28/30/32/34/36/38/40 |
4 degree/ 6 degree/ 7 degree/ 11 degree/ 12 degree |
50/55/60/71/80 |
0.15 - 0.45 |
|
Tapered cross bits |
24/26/28/30/32/33/34/35/36/3/38/40/42/48/50/55 |
50/55/60/71/80 |
0.18 - 0.7 |
|
|
Tapered button bits |
28/29/30/32/33/34/35/36/37/38/40/41/42/45 |
50/55/60/71/80 |
0.2 - 0.5 |
|
Specification
| Tapered drilling tools Types | Diameter (mm) | Taper Angle (Degree) | Skirt | Weight (kg) |
| Tapered chisel bits | 20-60mm | 4°,6°,7°,11°,12° | Normal, Length | 0.15 - 0.45 |
| Tapered cross bits | 32-60mm | Normal, Length | 0.18 - 0.7 | |
| Tapered button bits | 30-55mm | Normal, Length |
0.2 - 0.5 |
Pictures
KSQ Related Rock Drilling Tools
(1) Integral Drill Rod– chisel bit integral rod and plug hole integral drill steel,
Shank H19 x 108mm and H22 108mm.
(2) Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7, 11, 12 degree
(3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming bit,extension rod, MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.
(4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, , Furukawa, Gardner Genver, Ingersoll Rand etc.
(5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit (diameter 80mm - 305mm)
Other products: Tricone bits, PDC bits, self- drilling hollow anchor bar etc.
Button bit and Insert types
Spherical Button Characteristics:
1.Universal button
2.Good wear resistance
3.Best suited for hard ground
4.27000-48000PSI(180 to 320Mpa)
5.Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
1.Fast Penetration
2.Best suited for soft rock
3.10000-20000PSI(70 to 140Mpa)
4.Suited for non-abrasive drilling conditions
Feature of Taper Button Bit
1.tapered button bits connect with tapered drill rod for drilling holes
2.Stale and mature welding technology ensure good quality of bits
3.Accurate dimension of taper degree perfectly matches the rods
4.work reliable and very cost-effective
