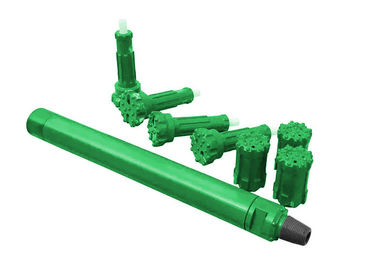

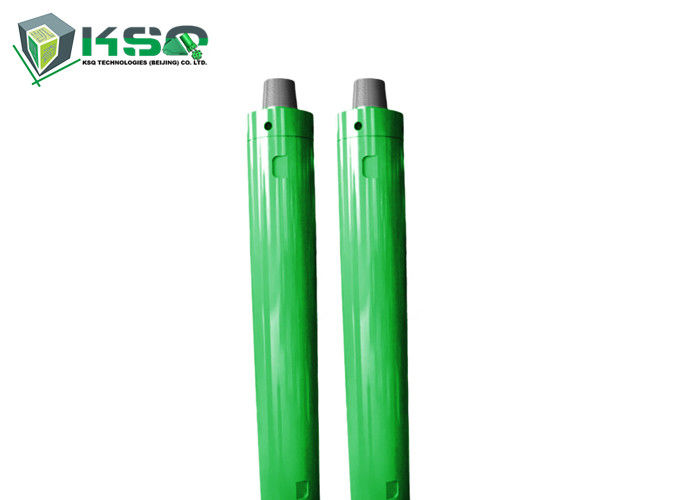

3 Inch DTH Hammer High Air Pressure Rock Drilling Tool DHD3.5 COP32

3 Inch DTH Hammer High Air Pressure Rock Drilling Tool DHD3.5 COP32

    • 3 Inch DTH Hammer High Air Pressure Rock Drilling Tool DHD3.5 COP32
    • 3 Inch DTH Hammer High Air Pressure Rock Drilling Tool DHD3.5 COP32
    • 3 Inch DTH Hammer High Air Pressure Rock Drilling Tool DHD3.5 COP32
  • 3 Inch DTH Hammer High Air Pressure Rock Drilling Tool DHD3.5 COP32

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: DHD3.5 COP32 hammer

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: negotiation
    Packaging Details: wooden box
    Delivery Time: 15-20days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union
    Supply Ability: 20000pcs per month
    Contact Now
    Detailed Product Description
    Color:: Any Color Is Available Application:: Water Well Drilling, Quarry Drilling, Construction Rock Drilling
    Bit Shank Type:: DHD3.5 COP32 Shank Hammer Type: DHD3.5 COP32 DTH Hammer High Air Pressure
    Bit Diameter: φ90 - φ110mm Drilling Method: DTH Drilling
    Product Name: DHD3.5 COP32 DTH Hammer , High Air Pressure Down The Hole Hammer

    3 inch High Air Pressure Rock Drilling Tool DTH Hammer DHD3.5 COP32



    Applications

    1. Underground mining

    2. Quarry benching operations

    3. Water well drilling





    Our DTH Hammer and Bit - Fully Compatible with Atlas Copco, drilling rigs, industry leading manufacturer of drilling tools in China.

    3 Inch DTH Hammer High Air Pressure Rock Drilling Tool DHD3.5 COP32



    Hammers Size Bit Shank Hole Range
    2" BR2/HD25 70-90mm
    3" DHD3.5/COP32/COP34/QL30/M30/BR3/BR33/XL3/Mach303 90-110mm
    4" DHD340/COP44/QL40/SD4/M40/
    Mach44/TD40(COP44 gold)
    110-135mm
    5" DHD350/COP54/QL50/SD5/M50 135-155mm
    6" DHD360/COP64/QL60/SD6/M60/TD60 (COP64 gold) 155-190mm
    8" DHD380/COP84/QL80/SD8/M80 195-254mm
    10" SD10/NUMA100 254-311mm
    12" DHD1120/NUMA120/NUMA125 305-445mm

    DTH молоток/DTH hammer/ค้อน DTH/Down The Hole Hammers/Abajo los martillos del agujero/Por el agujero Martillos/Martillos DTH/Herramientas de martillo DTH/เครื่องมือค้อนทุบ DTH/DTH Hammer Tools





    Selecting the right hammer

    The optimum range of hole size for blast hole drilling with DTH is 90 mm to 254 mm (3 ½"–10"). Smaller blast holes are generally drilled using tophammer, and larger holes generally use rotary machines. In other applications, like foundation drilling, DTH hammers can be used with single bit in hole sizes up to 750 mm (30"). With multiple hammer units CD (Cluster drills) drill holes up to 70" or 1778 mm.

    As a rule of thumb, the smallest hole diameter a DTH hammer can drill is its nominal size. A 4 inch hammer will drill a 4 inch (102 mm) hole. The limiting factor is the outside diameter of the hammer, because, as hole diameter reduces, airflow is restricted. Maximum hole size for production drilling is the nominal hammer size plus 1 inch, so for a 4 inch hammer the maximum hole size is 5 inch (127–130 mm).

    Choosing the right hammer is largely determined by hole size and type of rock formation. Ideally, the size of the hammer should match the required hole dimension as closely as possible, leaving just enough space for cuttings to evacuate the hole. Scope of application:Mining, quarry, road building, well hole drilling, blasting, landslide prevention, dam reinforement, anchoring, geothermal, hydrology, etc.



    3 Inch DTH Hammer High Air Pressure Rock Drilling Tool DHD3.5 COP32



    3 Inch DTH Hammer High Air Pressure Rock Drilling Tool DHD3.5 COP32
