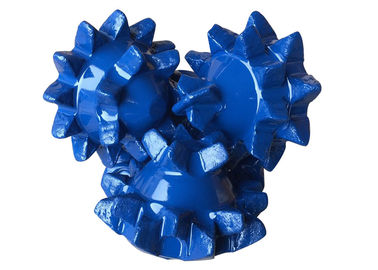

17-1/2" Tricone Rock bit, IADC code 135,Steel Tooth Rock Bit for soft to medium soft formations

17-1/2" Tricone Rock bit, IADC code 135,Steel Tooth Rock Bit for soft to medium soft formations

    • 17-1/2" Tricone Rock bit, IADC code 135,Steel Tooth Rock Bit for soft to medium soft formations
    • 17-1/2" Tricone Rock bit, IADC code 135,Steel Tooth Rock Bit for soft to medium soft formations
  • 17-1/2" Tricone Rock bit, IADC code 135,Steel Tooth Rock Bit for soft to medium soft formations

    Product Details:

    Place of Origin: China
    Brand Name: Mirco
    Certification: SGS,ISO
    Model Number: Steel Tooth Tricone Rock bit

    Payment & Shipping Terms:

    Minimum Order Quantity: negociated one
    Price: negociated one
    Packaging Details: wooden box or steel box
    Delivery Time: 10-30 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Type: Steel Tooth Tricone Rock Bit Machine Type: Drilling Tool
    Material: Carbide Processing Type: Forging
    Use: Drilling Soft-medium Formation Application: Mining,hydrology Well Drilling

    17-1/2" Tricone Rock bit, IADC code 135,Steel Tooth Rock Bit

    for soft to medium soft formations



    Product Description

    • Bit size range from 3 7/8'' to 26''
    •Meet with API Spec7-1 Standdrad
    •Open roller bearing or seal bearing
    •Steel tooth tricone bie sizes from 3 7/8'' to 26'' and cover almost all IADC codes.

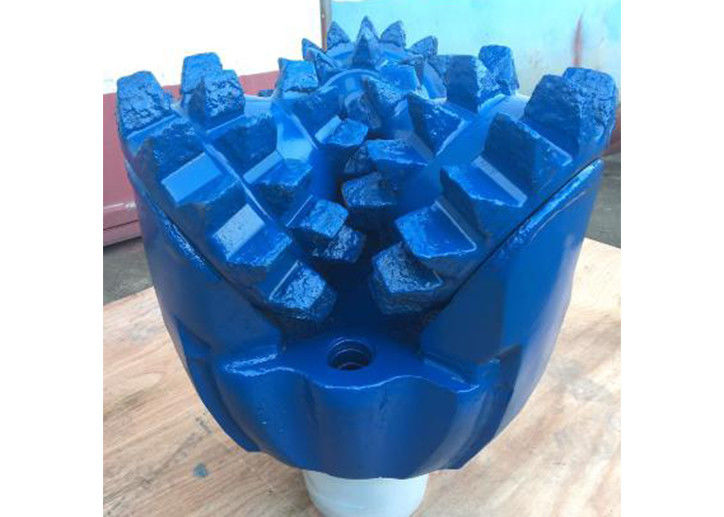

    Pictrue

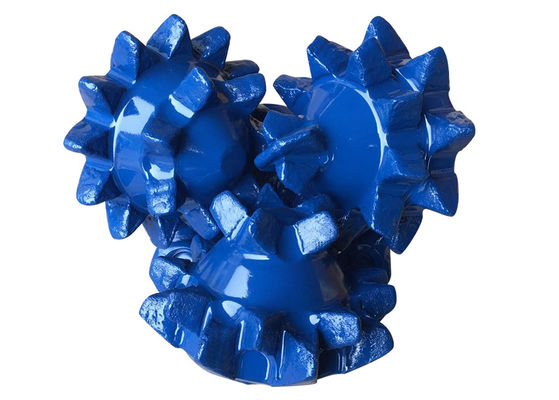

    17-1/2" Tricone Rock bit, IADC code 135,Steel Tooth Rock Bit for soft to medium soft formations

    1.17-1/2" Tricone Rock bit, IADC code 135 with 3 Nozzles;

    2. Full length/surface teeth hard facing tungsten carbide inserts on cones & shirt-tails for gauge protection motor quality bit,
    3. 7⅝ API Reg. Pin connection.
    4.WOB(KN/MM)0.3~0.95, RPM(R/MIN)150~160
    5.Weight 240Kg



    Feature

    17-1/2" Tricone Rock bit, IADC code 135,Steel Tooth Rock Bit for soft to medium soft formations

    PRODUCT PARAMETERS

    Product Name

    Steel Tooth Tricone Bit

    Size of Rock Bit

    14 3/4''    374.6mm

    IADC Code

    135G

    Thread Connection

    7 5/8 API reg pin

    WOB

    0.3~0.95

    RRM

    150~60

    Formation

    soft to medium soft formations with low compressive strength and hjgh drillability,such as medium soft shale,hard gypsum,soft limestone,medium soft sandstone,soft formation with harder interbeds





    Application

    The steel tooth bit are always be used in drilling soft-medium formation,using fields like mining,hydrology well drilling,subterranean heat well drilling,water well drilling,oil well drilling,gas well drilling.This type of tricone bits have optimal bearing design,it can be working stably in low WOB,and high quality tungsten carbide on suiface of cones and gauge make a good wear resisance,largely extend the working life of bit.



    Process

    17-1/2" Tricone Rock bit, IADC code 135,Steel Tooth Rock Bit for soft to medium soft formations



    Packaging & Shipping

    1. Delivery time: around 15-20days

    2. Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

    Bulk order: we suggest by air or by sea.

    3. Package : Carton or Wooden Box

    17-1/2" Tricone Rock bit, IADC code 135,Steel Tooth Rock Bit for soft to medium soft formations
