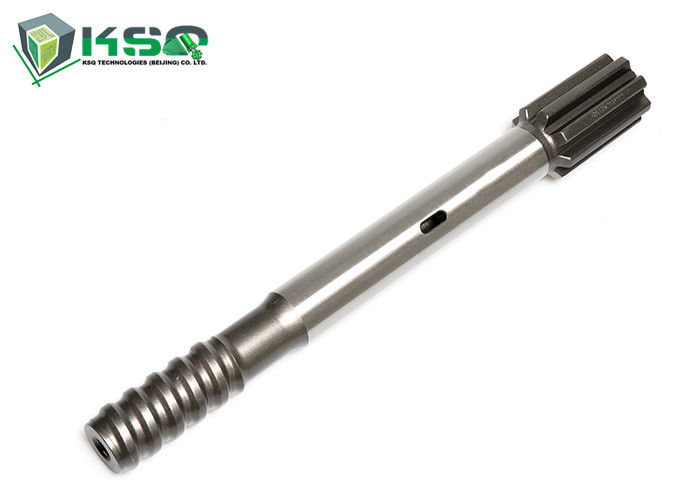

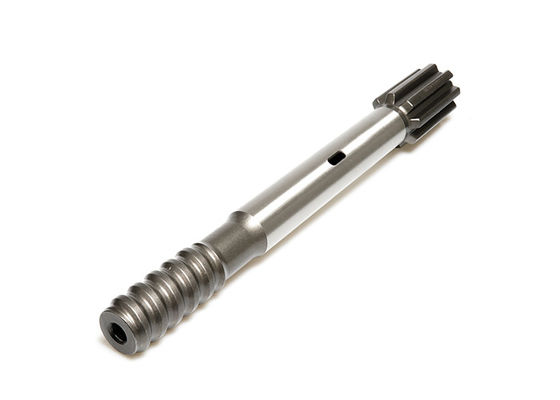

Professional Drilling Rig Tools Drill Shank Adapter R38 T38 T45 Thread

Professional Drilling Rig Tools Drill Shank Adapter R38 T38 T45 Thread

    • Professional Drilling Rig Tools Drill Shank Adapter R38 T38 T45 Thread
    • Professional Drilling Rig Tools Drill Shank Adapter R38 T38 T45 Thread
    • Professional Drilling Rig Tools Drill Shank Adapter R38 T38 T45 Thread
  • Professional Drilling Rig Tools Drill Shank Adapter R38 T38 T45 Thread

    Product Details:

    Place of Origin: China
    Brand Name: MIROC Shank Adapter
    Model Number: Shank Adapter (for Furukawa Drifter)

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Piece Shank Adapter
    Price: Negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Product: Shank Adapter Diameter: 40mm 44mm 45mm 51mm
    Length: 500mm 515mm 654mm Thread: R38 T38 T45
    Color: Black Weight: 4.3kg-6.7kg

    Shank Adapter for Furukawa HD90 HD90 HD300 HD609 HD612RP PD200 Drifter



    While every component in the drill string is crucial, the shank adapter must be engineered to withstand the most extreme stress. Its function is to transmit impact energy from the rock-drill piston, as well as rotation torque, into the drill string without energy losses. It must withstand and transmit up to 6300 blows per minute from the piston continually, with great endurance and dependability. With this in mind, we manufactures premium quality shank adapters for most brands of rock drill.



    Shank Adapter for Furukawa Drifter

    Professional Drilling Rig Tools Drill Shank Adapter R38 T38 T45 Thread



    Shank Adapter Specification

    Furukawa SHANK ADAPTER
    Furukawa HD 90 Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    R38 40 515 - 4.3 414832528
    Furukawa HD 190 Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    R38 40 500 - 4.5 414832529
    T38 40 500 - 4.5 414832530
    Furukawa HD 300 Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    T38 45 654 16 6.0 414832531
    T45 45 654 16 6.7 414832532
    Furukawa HD 609 Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    T38 45 690 - 6.3 414832533
    T45 45 690 - 6.4 414832534
    Furukawa HD 612 RP Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    T45 51 884 - 11.2 414832535
    Furukawa PD200 Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    T38 45 485 14.3 5.0 414832536
    T45 45 485 14.3 5.4 414832537

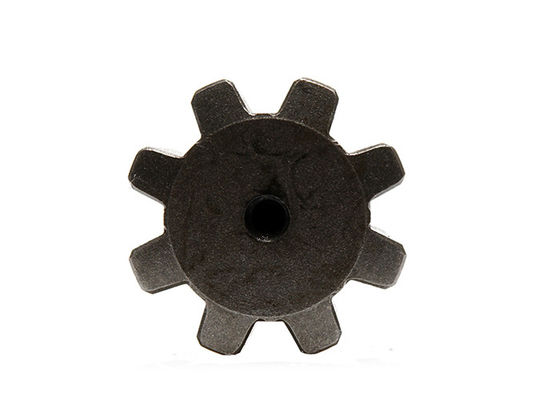

    Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.



    Competitive Advantage

    • High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
    • Accurate dimension of thread perfectly matches the rock drill
    • Work reliable and very cost-effective

    Applications



    • Bolting, drifting

    • Bench drilling
    • Production drilling



    Professional Drilling Rig Tools Drill Shank Adapter R38 T38 T45 Thread
    We can design and manufacture the personalized products to meet your specical apllication, such as changing the length, diameter etc.
