| Place of Origin: | China |
| Brand Name: | MIROC Shank Adapter |
| Model Number: | Shank Adapter (for Gardner Denver Drifter) |
| Minimum Order Quantity: | 10 Piece Shank Adapter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Supply Ability: | 20000 pieces per month |
| Product: | Shank Adapter | Diameter: | 32mm 38mm 44mm 51mm |
|---|---|---|---|
| Length: | 380mm 770mm 914mm | Thread: | R38 T38 T45 |
| Color: | Black | Weight: | 2.1kg-14.3kg |
| High Light: | drill bit shank adapter,threaded shank drill bit adapter |
||

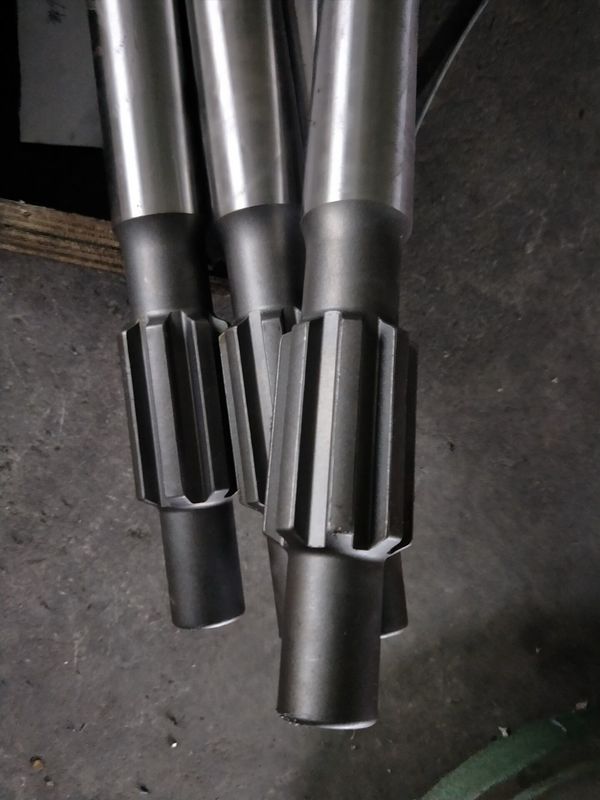

Shank Adapter for Gardner Denver 93 HPR 1H HPR45 RP123 Rock Drill
Male shank adapters/striking bar are generally better suited for drifting, tunneling & extension applications where high bending stresses are present.
Female shank adapters/striking bar are used when the drilling space is limited and the total feed length is important (i.e., underground roof bolting)
Shank Adapter for Gardner Denver Rock Drill
| Rock Drill Manufacturer and Model |
| Ingersoll Rand 350 |
| Ingersoll Rand Hydrastar 200 |
| Ingersoll Rand VL 120, VL 140 |
| Ingersoll Rand VL 120, VL 140 |
| Ingersoll Rand EVL 130, VL 140 |
| Ingersoll Rand YD 90 M |
| Ingersoll Rand YH 45, YH50, YH55 |
| Ingersoll Rand YH 60A |
| Ingersoll Rand YH 65, YH70 |
| Ingersoll Rand YH 65 RP |
| Ingersoll Rand YH 80A |
| Ingersoll Rand YH 80A RP |
| Ingersoll Rand YH 95 RP, YH100 RP |
| Ingersoll Rand YH 110 VRP, Y135 RP |
| Ingersoll Rand YH 110 V, Y135 |
Shank Adapter Specification
| SHANK ADAPTER | ||||||
| Rock Drill Manufacturer and Model | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| Ingersoll Rand 350 | R32 | 32 | 380 | 9.0 | 2.1 | 414832550 |
| Ingersoll Rand Hydrastar 200 | R32 | 45 | 351 | - | 3.7 | 414832551 |
| Ingersoll Rand VL 120, VL 140 | R32 | 44 | 381 | 14.3 | 3.4 | 414832552 |
| R38 | 44 | 381 | 14.3 | 3.6 | 414832553 | |
| T38 | 44 | 381 | 14.3 | 3.7 | 414832554 | |
| T45 | 44 | 381 | 14.3 | 3.9 | 414832555 | |
| Ingersoll Rand VL 120, VL 140 | T38 | 44 | 446 | 14.3 | 4.0 | 414832556 |
| Ingersoll Rand EVL 130, VL 140 | T38 | 44 | 350 | 14.3 | 3.9 | 414832557 |
| T45 | 44 | 350 | 14.3 | 4.2 | 414832558 | |
| Ingersoll Rand YD 90 M | R32 | 44 | 350 | 9.0 | 2.6 | 414832559 |
| R32 | 38 | 350 | 12.7 | 2.5 | 414832560 | |
| Ingersoll Rand YH 45, YH50, YH55 | T38 | 38 | 440 | 16 | 3.8 | 414832561 |
| Ingersoll Rand YH 60A | T45 | 38 | 530 | 14.3 | 6.1 | 414832562 |
| Ingersoll Rand YH 65, YH70 | T38 | 44 | 500 | 19.0 | 5.2 | 414832563 |
| T45 | 45 | 500 | 19.0 | 5.5 | 414832564 | |
| Ingersoll Rand YH 65 RP | T38 | 45 | 700 | 19.0 | 7.8 | 414832565 |
| T45 | 45 | 700 | 19.0 | 7.9 | 414832566 | |
| Ingersoll Rand YH 80A | T38 | 45 | 500 | 19.0 | 5.5 | 414832567 |
| T45 | 51 | 500 | 19.0 | 5.7 | 414832568 | |
| T51 | 51 | 500 | 19.0 | 6.4 | 414832569 | |
| Ingersoll Rand YH 80A RP | T45 | 51 | 700 | 19.0 | 8.8 | 414832570 |
| T51 | 51 | 700 | 19.0 | 9.3 | 414832571 | |
| Ingersoll Rand YH 95 RP, YH100 RP | T51 | 51 | 840 | 11.6 | 11.6 | 414832572 |
| Ingersoll Rand YH 110 VRP, Y135 RP | T51 | 55 | 900 | 14.2 | 14.2 | 414832573 |
| Ingersoll Rand YH 110 V, Y135 | T45 | 55 | 728 | 11.4 | 11.4 | 414832574 |
| T51 | 55 | 728 | 11.7 | 11.7 | 414832575 | |
Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.
Competitive Advantage
Applications
• Bolting, drifting
• Bench drilling
• Production drilling
We can design and manufacture the personalized products to meet your specical apllication, such as changing the length, diameter etc.
