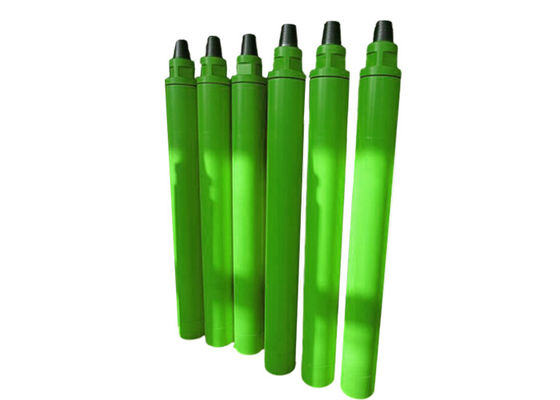

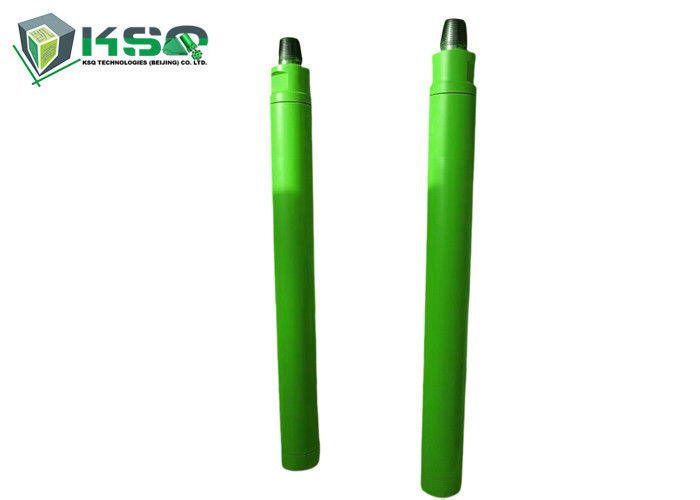

ql 60 dhd 360 DTH Hammers air hammer drill water well drilling hammer

DHD3.5 COP35 QLX35 TD35.2 Terranox 3 DTH Hammer , High Air Pressure Down The Hole Hammer

Applications

1. Underground mining

2. Quarry benching operations

3. Water well drilling

3" High Air Pressure DTH Hammer Without Foot Valve
	Description Weight(kg) 1.Top sub 4.20 2. O-ring Of Top Sub 0.01 3.Breakout Ring 0.01 4.Check Valve 0.20 5. Spring 0.02 6. Compression Buffer 0.04 7. Air Distributor 1.40 8. Internal cylinder 1.60 9. Piston 5.40 10. External Cylinder 9.50 11. Guide sleeve   12. O-ring Of Stop Ring 0.01 13. Stop Ring 0.20 14. Breakout Ring 0.01 15. Drive Chuck 1.95 16. Drill Bit 5.00
	Technical Data
	Length (Without Bit) 930mm Weight (Without Bit) 25.00kg External Diameter φ82mm Bit Shank DHD3.5 Hole Range φ92 - φ110mm Connection Thread API 2 3/8 '' Reg Working Pressure 1.0 - 1.5 Mpa Impact Rate at 17 Bar 28HZ Recommended Rotation Speed 25 - 40 r/min Air Consumption 1.0Mpa: 4.5 m³/ min 1.5Mpa: 9 m³/ min

High Air Pressure DTH Hammer With Foot Valve

The Characteristics of High Air Pressure DTH Hammers With Foot Valve:

It is a kind of valveless high air pressure DTH hammer with foot valve. It has the following advantages:

The main features are as following:

1. Valveless air distribution, more reliable.

2. Simple design of the piston. Long life span.

3. More efficient energy transfer, faster drilling speed, low air consumption and lower oil consumption.

4. Fewer internal parts, simple structure, long life span, less failure and easier to maintain because all the parts are heat treated.

5. Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multiple steps thread.

DTH молоток/DTH hammer/ค้อน DTH/Down The Hole Hammers/Abajo los martillos del agujero/Por el agujero Martillos/Martillos DTH/Herramientas de martillo DTH/เครื่องมือค้อนทุบ DTH/DTH Hammer Tools

Production Line View

About US

The MIROC® Rock Drilling Tools product line by KSQ Tecnologies (Beijing) Co. Ltd. is the result of years
of advanced engineering, precision manufacturing, and dedication to the use of high quality materials.


MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.

KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high
quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development
team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.
