Durable Drill Shank Adapter For Ingersoll Rand VL120 VL140 YH65 YH70 YH80A Rock Drill

Durable Drill Shank Adapter For Ingersoll Rand VL120 VL140 YH65 YH70 YH80A Rock Drill

    • Durable Drill Shank Adapter For Ingersoll Rand VL120 VL140 YH65 YH70 YH80A Rock Drill
    • Durable Drill Shank Adapter For Ingersoll Rand VL120 VL140 YH65 YH70 YH80A Rock Drill
    • Durable Drill Shank Adapter For Ingersoll Rand VL120 VL140 YH65 YH70 YH80A Rock Drill
  • Durable Drill Shank Adapter For Ingersoll Rand VL120 VL140 YH65 YH70 YH80A Rock Drill

    Product Details:

    Place of Origin: China
    Brand Name: MIROC Shank Adapter / Striking Bar
    Model Number: Shank Adapter (for Ingersoll Rand Rock Drill)

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Piece Shank Adapter
    Price: Negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Product: Shank Adapter Diameter: 32mm 44mm 51mm
    Length: 380mm 500mm 700mm Thread: R38 T38 T45
    Color: Black Drifter: Ingersoll Rand

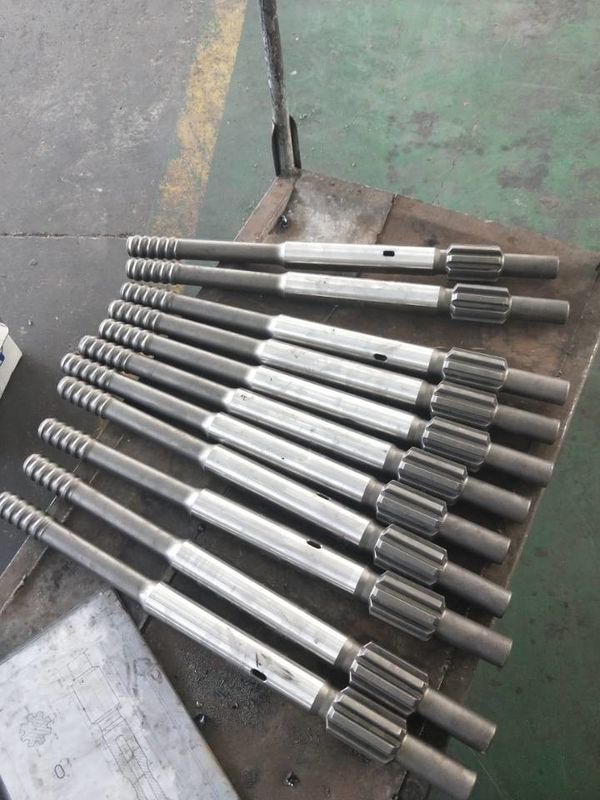

    Shank Adapter for Ingersoll Rand VL120 VL140 YH65 YH70 YH80A Rock Drill



    Shank Adapter



    Manufactured from high quality Alloy Steel and Heat Treated to give high values and fatgue strength.

    The task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string.



    Male shank adapters/striking bar are generally better suited for drifting, tunneling & extension applications where high bending stresses are present.



    Female shank adapters/striking bar are used when the drilling space is limited and the total feed length is important (i.e., underground roof bolting)



    Shank Adapter for Following Ingersoll Rand Rock Drill Model



    Rock Drill Manufacturer and Model
    Ingersoll Rand 350
    Ingersoll Rand Hydrastar 200
    Ingersoll Rand VL 120, VL 140
    Ingersoll Rand VL 120, VL 140
    Ingersoll Rand EVL 130, VL 140
    Ingersoll Rand YD 90 M
    Ingersoll Rand YH 45, YH50, YH55
    Ingersoll Rand YH 60A
    Ingersoll Rand YH 65, YH70
    Ingersoll Rand YH 65 RP
    Ingersoll Rand YH 80A
    Ingersoll Rand YH 80A RP



    Shank Adapter Specification

    SHANK ADAPTER
    Rock Drill Manufacturer and Model Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    Ingersoll Rand 350 R32 32 380 9.0 2.1 414832550
    Ingersoll Rand Hydrastar 200 R32 45 351 - 3.7 414832551
    Ingersoll Rand VL 120, VL 140 R32 44 381 14.3 3.4 414832552
    R38 44 381 14.3 3.6 414832553
    T38 44 381 14.3 3.7 414832554
    T45 44 381 14.3 3.9 414832555
    Ingersoll Rand VL 120, VL 140 T38 44 446 14.3 4.0 414832556
    Ingersoll Rand EVL 130, VL 140 T38 44 350 14.3 3.9 414832557
    T45 44 350 14.3 4.2 414832558
    Ingersoll Rand YD 90 M R32 44 350 9.0 2.6 414832559
    R32 38 350 12.7 2.5 414832560
    Ingersoll Rand YH 45, YH50, YH55 T38 38 440 16 3.8 414832561
    Ingersoll Rand YH 60A T45 38 530 14.3 6.1 414832562
    Ingersoll Rand YH 65, YH70 T38 44 500 19.0 5.2 414832563
    T45 45 500 19.0 5.5 414832564
    Ingersoll Rand YH 65 RP T38 45 700 19.0 7.8 414832565
    T45 45 700 19.0 7.9 414832566
    Ingersoll Rand YH 80A T38 45 500 19.0 5.5 414832567
    T45 51 500 19.0 5.7 414832568
    T51 51 500 19.0 6.4 414832569
    Ingersoll Rand YH 80A RP T45 51 700 19.0 8.8 414832570
    T51 51 700 19.0 9.3 414832571



    Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.



    Competitive Advantage

    • High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
    • Accurate dimension of thread perfectly matches the rock drill
    • Work reliable and very cost-effective

    Applications



    • Bolting, drifting

    • Bench drilling
    • Production drilling



    Durable Drill Shank Adapter For Ingersoll Rand VL120 VL140 YH65 YH70 YH80A Rock Drill
    We can design and manufacture the personalized products to meet your specical apllication, such as changing the length, diameter etc.
