3 Nozzles Mining Diamond Drill Bit 8-1/2" Steel Tooth High Strength

3 Nozzles Mining Diamond Drill Bit 8-1/2" Steel Tooth High Strength

    • 3 Nozzles Mining Diamond Drill Bit 8-1/2" Steel Tooth High Strength
    • 3 Nozzles Mining Diamond Drill Bit 8-1/2" Steel Tooth High Strength
  • 3 Nozzles Mining Diamond Drill Bit 8-1/2" Steel Tooth High Strength

    Product Details:

    Place of Origin: China
    Brand Name: Mirco
    Certification: SGS,ISO
    Model Number: Tricone Rock bit

    Payment & Shipping Terms:

    Minimum Order Quantity: negociated one
    Price: negociated one
    Packaging Details: wooden box or steel box
    Delivery Time: 10-30 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Type: Steel Tooth Tricone Bit Machine Type: Drilling Tool
    Material: Carbide Processing Type: Forging
    Use: Drilling Soft-medium Formation Application: Mining,hydrology Well Drilling



    IADC code 217with 3 Nozzles,8-1/2" Steel tooth rock tricone bit,

    SOFT-CLEAN OUT CMT



    Product Description



    •  8-1/2" Tricone Rock bit, IADC code 217 with 3 Nozzles;
    •  Full length/surface teeth hard facing and tungsten carbide and Diamond inserts on cones & shirt-tails for gauge protection motor quality bit,
    •  4½ API Reg. Pin connection.
    • SOFT-CLEAN OUT CMT
    • Weight 35Kg

    Product Name 8 1/2'' iadc code 217 Steel tooth rock tricone bit
    Application oil,gas,water drilling etc.
    Formation Such As medium soft shale,limstone and sandstone,hard streaks,etc.
    Bit Size 8 1/2''(215.9mm)
    Metal material High manganese steel and tungsten carbide alloy
    Connection 4 1/2'' API Reg
    OEM OEM is accepted
    Weight 35 Kg
    After sale We provide technical support.
    Type of shipping Air transport, Marine transportation, Land transport
    Service OEM serive offered
    Structural feature Sealed journal bearing gage protection.

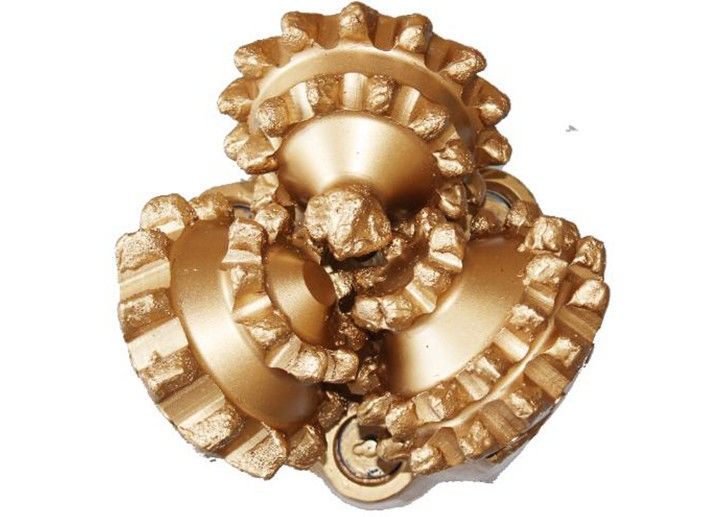

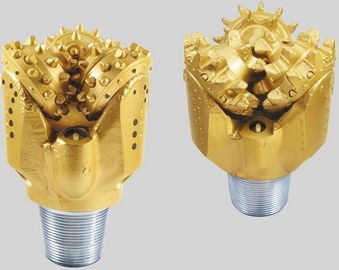

    Pictrue



    3 Nozzles Mining Diamond Drill Bit 8-1/2" Steel Tooth High Strength



    3 Nozzles Mining Diamond Drill Bit 8-1/2" Steel Tooth High Strength



    Feature





    1.High strength and high wear resistant cemented carbide is adopted to improve wear resistance and strength.

    2.Multiple protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone

    3.tungsten carbide inserts and hardfacing on the shirttail extend greatly the bit service life

    4.Steel Tooth.Higher speed, low penetration cost

    5.OEM is accepted,we can manufacture according to your requirements and offered drawing.OEM is accepted,we can manufacture according to your requirements and offered drawing.



    1. Roller bits for Mining and Rock Drilling

    The strength and wear resistance of inserts are improved
    1. Roller bits for Mining and Rock Drilling
    The strength and wear resistance of inserts are improve by using carbide inserts with high

    strength and high wear resistance.
    Surface of the high precision bearing heat treated by using advanced heat treatment process to

    improve the load capacity and service life of the bearing.
    The service life of the bearing is further extended by adopting harder and mort wear resistant

    material for thrust bearing.
    Preventing reflux structure has dual function, it can avoid air counterflow and dust entering into

    bearing when the air-compressor stop working accidentally, and separate air and water

    in order to avoid water entering into bearing when it works normally to prolong the life of bearing.



    2. Roller bits for Oil Drilling

    1. This series tricone bit use Sealed roller bearing structure. With rollers arranged in grooves

    recessed in the cone body, the size of the bearing journal is increased.
    2. Thrust bearing surfaces are hardfaced and treated with friction reducing technology.
    3. Ball locked cone, suitable for high rotary speed.



    3.Steel teeth Tricone bits
    1 This series tricone bit use Journal bearing. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. The load capacity and seizure resistance of the

    bearing is greatly improved.
    2. O ring seal is made of the more wear resistance high saturated buna-N with the increased

    seal section and precisely designed sealing flange in the cone sealing area increased the

    reliability of the seal.
    3. The bit bearing can be ball locked
    4. For steel tooth bit, the tooth surface is hardfaced with new type of wear resistan
    Material and thus extended working life of the cutting structure while still maintaining high ROP


    Application

    Apply to Construction, Water Drilling, Mining, Horizontal Directional Drilling, Geothermal and Environ-mental.

    3 Nozzles Mining Diamond Drill Bit 8-1/2" Steel Tooth High Strength



    Packaging & Shipping

    1. Delivery time: around 15-20days

    2. Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

    Bulk order: we suggest by air or by sea.

    3. Package : Carton or Wooden Box

    3 Nozzles Mining Diamond Drill Bit 8-1/2" Steel Tooth High Strength



    Company Information

    KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.



    About ordering the products

    You can send the inquiry with detail item description or with Model number. If possible

    please attach one reference picture to avoid any misunderstanding or any links fromour

    website for we get a better understanding.

    PLs add the information in your inquiry.

    1) the size of the tricone bit

    2) the IADC tooth model, like 537G

    3) PLs tell the drilling information of the layer.

    4) PLs tell the quantity.



    Tag:Tricone Rock bit, IADC code 217,Steel tooth
