High Performance Hammer Drill Bit Adapter For Boart Cannon Joy Krupp Secoma SIG Rock Drill

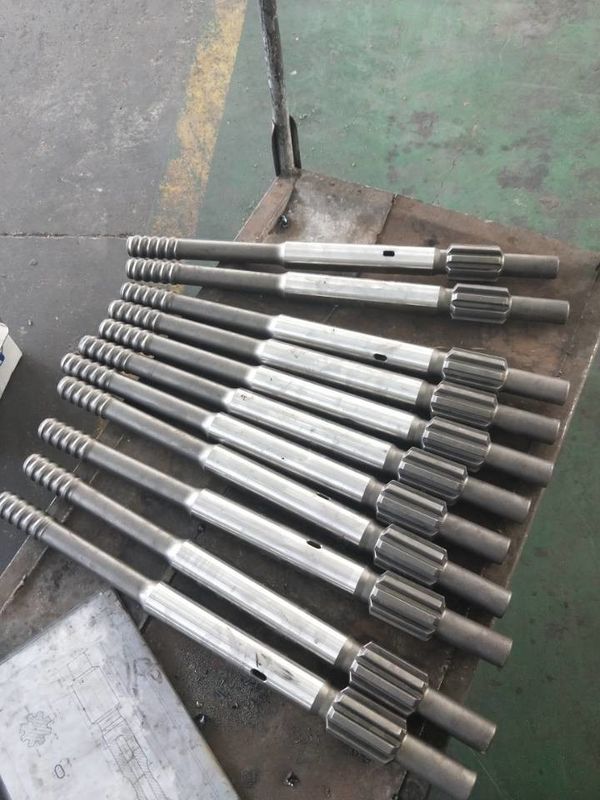

Shank Adapter for Boart Cannon Joy Krupp Secoma SIG Rock Drill

Two flushing options of shank adapters: internal or external.

• Internal flushing uses a water tube that fits through the center of the drill and into an o-ring seal in the end of the shank, to transfer flushing into the drill string
• External flushing, holes or a slot are required in the side of the shank adapter.These line up between seals inside the front head or water box of the rock drill, when the shank is installed. Flushing medium is supplied directly to this device and is introduced into the drill string through the shank.  External flushing is considered superior to internal flushing, as greater volumes of flushing agent can be delivered with less risk of leakage and hammer damage from water.

Shank Adapter for Boart Cannon Joy Krupp Secoma SIG Rock Drill

Shank Adapter Specification

Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.

Competitive Advantage

• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
• Accurate dimension of thread perfectly matches the rock drill
• Work reliable and very cost-effective

Applications

• Bolting, drifting

• Bench drilling
• Production drilling
