R32 64mm Button Bit and Retrac Button Bit With High Grade YK05 Tungsten Carbide Inserts

R32 64mm Button Bit and Retrac Button Bit With High Grade YK05 Tungsten Carbide Inserts

  • R32 64mm Button Bit and Retrac Button Bit With High Grade YK05 Tungsten Carbide Inserts
  • R32 64mm Button Bit and Retrac Button Bit With High Grade YK05 Tungsten Carbide Inserts
  • R32 64mm Button Bit and Retrac Button Bit With High Grade YK05 Tungsten Carbide Inserts
  • R32 64mm Button Bit and Retrac Button Bit With High Grade YK05 Tungsten Carbide Inserts
R32 64mm Button Bit and Retrac Button Bit With High Grade YK05 Tungsten Carbide Inserts
Product Details:
Place of Origin: China
Brand Name: MIROC R32 Button Bit
Model Number: R32 Thread Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: L/C, T/T
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product: R32 Button Bit Diameter: 38mm 48mm 64mm 76mm
Front Flushing Hole: 2 Side Flushing Hole: 1
Color: Green Part Number: 4148300487
High Light:

industrial drill bits

,

hardened steel drill bits

R32 Drill Bit With High Grade YK05 Tungsten Carbide Inserts


Thread: R32



Color: Green or Based on Customer requirements



Type: R32 Drill Bit



Widely used drifting and tunneling




R32 Thread Button Bit Specification

R32 Button Bit
Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
Spherical
41 1 5/8 2×9 4×9 35° 1 1 0.6 4148300487
41 1 5/8 2×8 5×9 35° 1 1 0.7 4148300488
43 1 5/7 2×9 5×9 35° 1 2 0.7 4148300489
43 1 5/7 2×9 5×10 35° 1 1 0.7 4148300490
43 1 5/7 2×9 6×9 40° 2 - 0.7 4148300491
45 1 7/9 2×9 5×11 30° 1 1 0.8 4148300492
45 1 7/9 2×9 6×10 35° 2 - 0.8 4148300493
45 1 7/9 3×8 6×10 30° 3 - 0.8 4148300494
48 1 8/9 2×9 5×11 35° 1 1 0.9 4148300495
48 1 8/9 2×9 6×10 40° 2 - 0.9 4148300496
48 1 8/9 3×8 6×10 40° 3 - 0.9 4148300497
48 1 8/9 3×9 6×10 30° 3 - 0.9 4148300498
51 2 2×10 5×11 35° 1 1 1 4148300499
51 2 2×10 6×10 40° 2 - 1 4148300500
51 2 3×9 6×10 35° 3 - 1 4148300501
57 2 1/4 3×9 6×11 35° 3 - 1.3 4148300502
64 2 1/2 3×10, 1×10 6×11 35° 3 - 1.6 4148300503
64 2 1/2 4×10 8×10 40° 2 - 1.6 4148300504
76 3 4×11 8×11 40° 2 - 2.6 4148300505
Ballistic
41 1 5/8 2×8 5×9 40° 1 1 0.7 4148300506
43 1 5/7 2×9 5×9 40° 1 2 0.7 4148300507
43 1 5/7 2×9 6×9 40° 2 - 0.7 4148300508
43 1 5/7 3×8 6×8 40° 3 1 0.7 4148300509
45 1 7/9 2×9 5×11 30° 1 2 0.8 4148300510
45 1 7/9 2×9 6×9 40° 2 2 0.8 4148300511
45 1 7/9 3×8 6×9 40° 3 1 0.8 4148300512
48 1 8/9 2×9 5×11 35° 1 1 0.9 4148300513
48 1 8/9 2×9 6×10 40° 2 - 0.9 4148300514
48 1 8/9 3×8 6×10 40° 3 - 0.9 4148300515
51 2 2×10 6×10 40° 2 - 1 4148300516
51 2 3×9 6×10 40° 3 1 1 4148300517
54 2 1/8 3×9 6×10 40° 3 1 1 4148300518
57 2 1/4 3×9 6×11 35° 3 - 1.3 4148300519
64 2 1/2 4×10 8×10 40° 2 - 1.6 4148300520


R32 Thread Retract Button Bit Specification



R32 Retract Button Bit
Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge Angle front Side kg
Spherical
45 1 7/9 3×8 6×9 40° 3 - 1.1 4148300521
48 1 8/9 3×9 6×10 30° 3 - 1.2 4148300522
51 2 3×9 6×10 30° 3 - 1.4 4148300523
64 2 1/2 3×10, 1×10 6×11 35° 3 - 2.2 4148300524
64 2 1/2 4×10 8×10 40° 2 - 2.2 4148300525
76 3 4×11, 1×11 8×11 35° 4 1 3.5 4148300526
Ballistic
45 1 7/9 3×8 6×9 40° 3 - 1.1 4148300527
48 1 8/9 3×9 6×10 30° 3 - 1.2 4148300528
51 2 3×9 6×10 30° 3 - 1.4 4148300529
64 2 1/2 3×10, 1×10 6×11 35° 3 - 2.2 4148300530
64 2 1/2 4×10 8×10 40° 2 - 2.2 4148300531
76 3 4×11, 1×11 8×11 35° 4 1 3.5 4148300532



Applications

Used in small hole drilling.

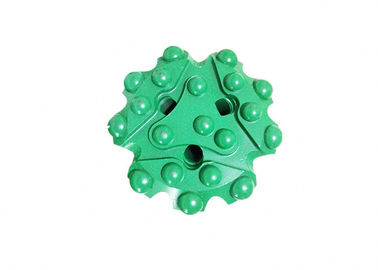

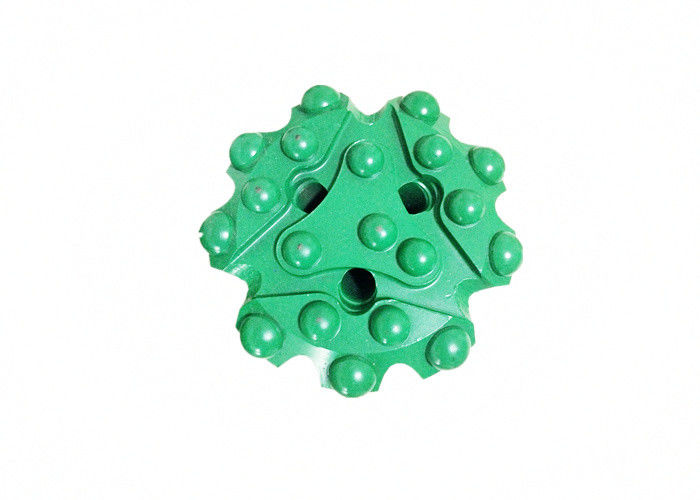

R32 64mm Button Bit Photos
R32 64mm Button Bit and Retrac Button Bit With High Grade YK05 Tungsten Carbide Inserts 0R32 64mm Button Bit and Retrac Button Bit With High Grade YK05 Tungsten Carbide Inserts 1

Information need to know before order

1. Thread
2. Button Bit Diameter
3. Face Design: Flat Face or drop center
3. Body/Skirt: Rugular or retract body
4. Carbide/ Button: Spherical or Ballistic
