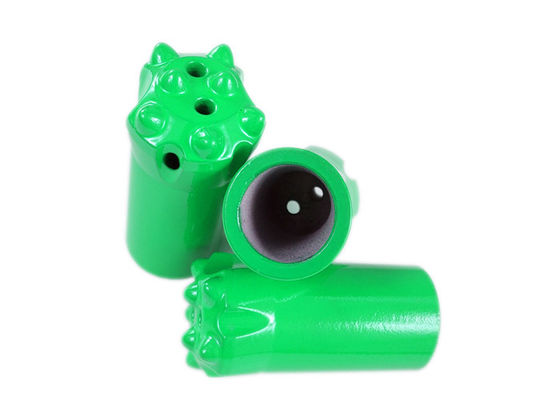

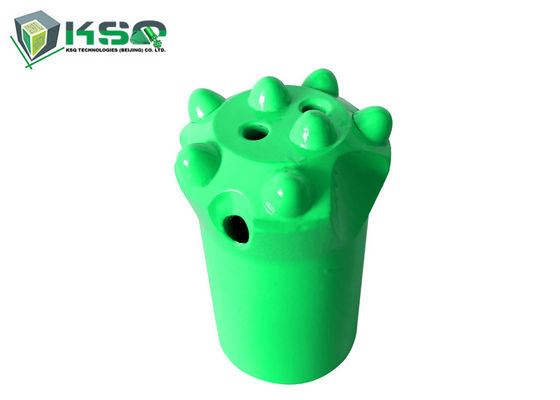

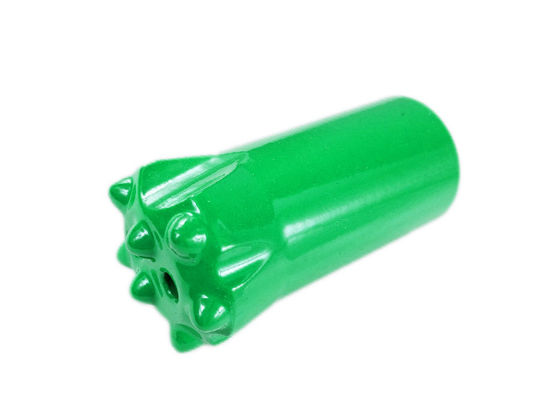

Hard Rock Tools Tungsten Carbide For Mining Tapered Button Drill Bits

Hard Rock Tools Tungsten Carbide For Mining Tapered Button Drill Bits

Hard Rock Tools Tungsten Carbide For Mining Tapered Button Drill Bits
Hard Rock Tools Tungsten Carbide For Mining Tapered Button Drill Bits
Hard Rock Tools Tungsten Carbide For Mining Tapered Button Drill Bits
Product Details:
Place of Origin: China
Brand Name: Mirco
Model Number: 7°, 11° and 12° tapered button bits
Payment & Shipping Terms:
Minimum Order Quantity: negociated one
Price: negociated one
Packaging Details: wooden box or plastic box
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Product Name: 7°, 11° And 12° Tapered Button Bits Type: Drill Bit
Machine Type: Drilling Tool, Drilling Equipment Material: Tungsten Carbide & Steel
Processing Type: Casting Use: Mining Drilling
Bit Diameter: 32mm 34mm 36mm 38mm 40mm 42mm Etc Taper Angle: 7/11/12 Degree
High Light:

stone drilling tools

,

rock drill tools

Hard Rock Tools Tungsten Carbide Tapered Button Drill Bits For Mining


Product Introduction:

Cutting Structure Design:  Chisel bits, Cross bits, Button bits

Bit diameter: 26-43mm, 28-51mm, 28-45mm

Taper degree: 7º, 11º and 12º

Application:
The taper drill bit is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.



  Chisel Bits Cross Bits Button Bits
Taper Degree 7º, 11º and 12º 7º, 11º and 12º
Bits Socket Diameter mm 23 23 22
inch 27/32 27/32 7/8
Bit Diameter mm 26 ~ 43 28 ~ 51 28 ~ 45
inch 1 1/32 ~ 1 45/64 1 7/64 ~ 2 1 7/64 ~ 1 25/32
Remark There are horseshoe and oblique chipways designs;
To drill media hard, hard and crack not grown formation with rock hardness not above f15 and in place where the compacting power of the rock drill doesn’t exceed 8Kg/MPa
To drill hard, very hard and crack grown formation There are short skirt, average long skirt and enhanced long skirt;
with hemi-spherical or parabolic inserts configurations;
to drill all rock formations except very hard and abrasive formations



 Hard Rock Tools Tungsten Carbide For Mining Tapered Button Drill Bits 0
