| Place of Origin: | China |
| Brand Name: | Mirco |
| Model Number: | Drill pipe |
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | 9 /16 units each bundle |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Material: | High Manganese Steel | Diameter: | 2 3/8''-5 1/2'' |
|---|---|---|---|
| Length: | 1000~4500mm | Outside Diameter: | 63~140mm |
| Type: | Drill Pipe | Processing Type: | Forging |
| Wrench Slot: | B40, B65, B57, B76 | Application:: | Water Well Drilling, Mining, Oil Rig |
| High Light: | rock drill tools,down the hole drilling tools |
||

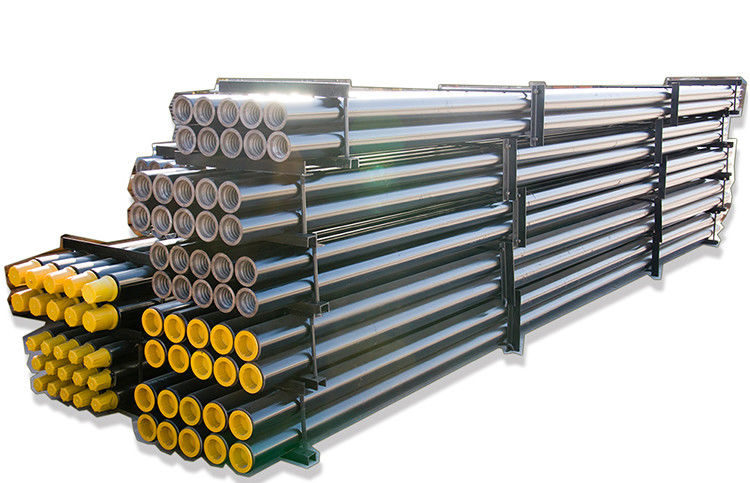

Mining Machine DTH Tools API 2 3/8 Water Well Drilling Dth Pipe
1. Bit diameter: 60-89mm, 102-108mm, 114-152mm
2.Length: 1000-7620mm, 1000-9140mm, 1000-10670mm
3.Connection thread: T42*10*2, 2 3/8” API REG/IF,2 7/8” API IF,3 1/2” API REG
PRODUCT SPECIFICATION
DTH Drill Rods:
| Diameter | Length | Connection Thread | Wall Thickness | |||
| mm | inch | mm | Foot | mm | inch | |
| 60 | 2 3/8 | 1,000~4,500 | 3 3/8 ~ 14 3/4 | T42×10×2 | 5~8 | 13/64~5/16 |
| 76 | 3 | 1,000~4,500 | 3 3/8 ~ 14 3/4 | 2 3/8” API REG | 5~8 | 13/64~5/16 |
| 89 | 3 1/2 | 1,000~7,620 | 3 3/8 ~ 25 | 2 3/8” API REG/IF | 5~12 | 13/64~15/32 |
| 102 | 4 | 1,000~9140 | 3 3/8 ~ 30 | 2 3/8” API REG, 2 7/8” API IF, 3 1/2” API REG | 6.5~20 | 1/4~25/32 |
| 108 | 4 1/4 | 1,000~9140 | 3 3/8 ~ 30 | 2 3/8” API REG, 2 7/8” API IF, 3 1/2” API REG | 6.5~20 | 1/4~25/32 |
| 114 | 4 1/2 | 1,000~10,670 | 3 3/8 ~ 35 | 2 7/8” API IF, 3 1/2” API REG | 6.5~20 | 1/4~25/32 |
| 127 | 5 | 1,000~10,670 | 3 3/8 ~ 35 | 3 1/2” API REG | 8~20 | 5/16~25/32 |
| 133 | 5 1/4 | 1,000~10,670 | 3 3/8 ~ 35 | 3 1/2” API REG | 8~20 | 5/16~25/32 |
| 140 | 5 1/2 | 1,000~10,670 | 3 3/8 ~ 35 | 3 1/2” API REG | 10~22 | 25/64~7/8 |
| 146 | 5 3/4 | 1,000~10,670 | 3 3/8 ~ 35 | 3 1/2” API REG | 10~22 | 25/64~7/8 |
| 152 | 6 | 1,000~10,670 | 3 3/8 ~ 35 | 4 1/2” API REG | 10~22 | 25/64~7/8 |
Sub Adapters:
| Type | Diameter | Length | Connection Thread | ||
| mm | inch | mm | inch | API REG/IF | |
| Pin to Box | 59~146 | 2 3/8 ~ 5 3/4 | 120~235 | 4 23/32 ~ 9 1/4 | 2 3/8”, 2 7/8”, 3 1/2”, 4 1/2” |
| Pin to Pin | 90~115 | 3 1/2 ~ 4 1/2 | 70~97 | 2 3/4 ~ 3 5/8 | 2 3/8” , 2 7/8”, 3 1/2” |
| Box to Box | 77~205 | 3 ~ 8 1/8 | 200~270 | 7 7/8 ~ 10 5/8 | 2 3/8”, 2 7/8”, 3 1/2”, 4 1/2”, 6 5/8” |
About us
KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.
