    Product Details:

    Place of Origin: Shangdong,China
    Brand Name: MIROC
    Certification: ISO9001 SGS
    Model Number: Drill Pipe

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10-22days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 30000pcs per month
    Contact Now
    Detailed Product Description
    Type: Drill Pipe Length: 1000~9140mm
    Diameter: 60~89mm ,102~108mm, 114~152mm Application: Water Well,blasting Holes,Mining, Oil Rig
    Connection Thread: T42*10*2 ,2 3/8” API REG/IF,2 7/8” API IF,3 1/2” API REG Produce Type: Heat-treated And Friction-welded
    Wrench Slot: B40, B65, B57, B76 Material: High Manganese Steel, High Carbon Steel, Carbide Alloy Steel
    Color: Black Or Customized

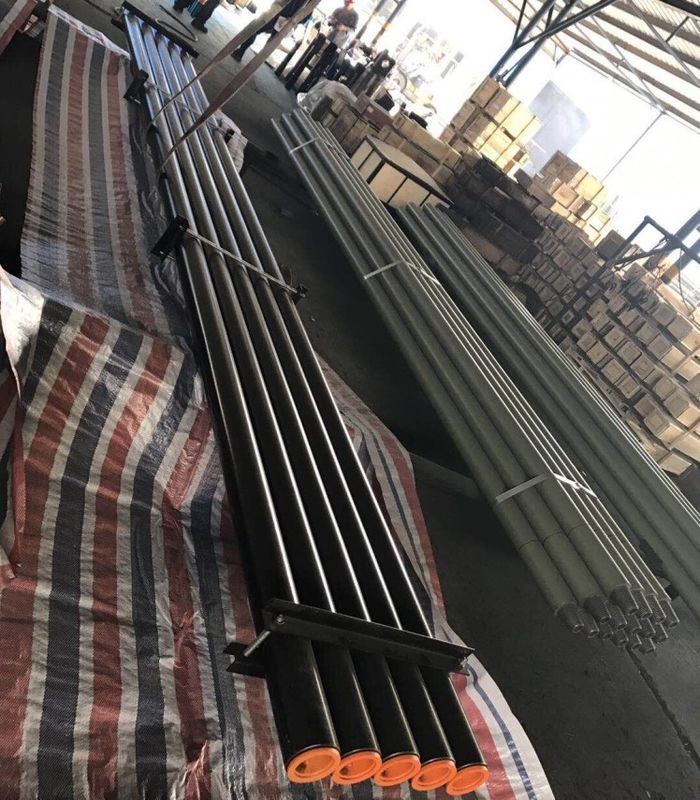

    Drilling Tools DTH Water Well Oil Drill Pipe Heavy Weight Drill Pipe



    DTH drill pipes are widely used in mining,water well drilling,geothermal,oil and all kinds of DTH rock drilling,with high quality low carbon steel to ensure good resistance to strengthen and tensile,friction welded to ensure the adapter and pipe connect tightly as a whole set the cyclic extrusion-compression ensure reliable pipe



    In principle, the lighter the rod is, the better it is for the drilling operation. So a thinner one is always preferable than a thicker one if other parameters were the same. While in the mean time, the yield strength and the tensile strength must also be taken into accounts, which means relatively rod wall thickness would be needed to obtain enough strength. Of course, once the thickness is rigidly requested as thin as possible to minimize the drill string weight, there is also another method to get optimum drill tubes that using better grade steels.

    Drilling Tools DTH Water Well Oil Drill Pipe / Heavy Weight Drill Pipe



    Specification of Drilling Pipe



    Diameter Length Connection Thread Wall Thickness
    mm inch mm Foot mm inch
    60 2.375 1,000~4,500 3 3/8 ~ 14 3/4 T42×10×2 5~8 13/64~5/16
    76 3 1,000~4,500 3 3/8 ~ 14 3/4 2 3/8” API REG 5~8 13/64~5/16
    89 3.5 1,000~7,620 3 3/8 ~ 25 2 3/8” API REG/IF 5~12 13/64~15/32
    102 4 1,000~9140 3 3/8 ~ 30 2 3/8” API REG, 2 7/8” API IF, 3 1/2” API REG 6.5~20 1/4~25/32
    108 4.25 1,000~9140 3 3/8 ~ 30 2 3/8” API REG, 2 7/8” API IF, 3 1/2” API REG 6.5~20 1/4~25/32
    114 4.5 1,000~10,670 3 3/8 ~ 35 2 7/8” API IF, 3 1/2” API REG 6.5~20 1/4~25/32
    127 5 1,000~10,670 3 3/8 ~ 35 3 1/2” API REG 8~20 5/16~25/32
    133 5.25 1,000~10,670 3 3/8 ~ 35 3 1/2” API REG 8~20 5/16~25/32
    140 5.5 1,000~10,670 3 3/8 ~ 35 3 1/2” API REG 10~22 25/64~7/8
    146 5.75 1,000~10,670 3 3/8 ~ 35 3 1/2” API REG 10~22 25/64~7/8
    152 6 1,000~10,670 3 3/8 ~ 35 4 1/2” API REG 10~22 25/64~7/8



    Sub Adapter

    Type Diameter Length Connection Thread
    mm inch mm inch API REG/IF
    Pin to Box 59~146 2 3/8 ~ 5 3/4 120~235 4 23/32 ~ 9 1/4 2 3/8”, 2 7/8”, 3 1/2”, 4 1/2”
    Pin to Pin 90~115 3 1/2 ~ 4 1/2 70~97 2 3/4 ~ 3 5/8 2 3/8” , 2 7/8”, 3 1/2”
    Box to Box 77~205 3 ~ 8 1/8 200~270 7 7/8 ~ 10 5/8 2 3/8”, 2 7/8”, 3 1/2”, 4 1/2”, 6 5/8”
