API Standard DTH Drill Pipe OD 114mm Length 6m For Atlas Copco ROC860 Drill

API Standard DTH Drill Pipe OD 114mm Length 6m For Atlas Copco ROC860 Drill

API Standard DTH Drill Pipe OD 114mm Length 6m For Atlas Copco ROC860 Drill
API Standard DTH Drill Pipe OD 114mm Length 6m For Atlas Copco ROC860 Drill
API Standard DTH Drill Pipe OD 114mm Length 6m For Atlas Copco ROC860 Drill
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: API
Model Number: DTH Drill Pipe
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece Drill Pipe
Price: Negotiation
Packaging Details: Bundle
Delivery Time: 10- 25 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Type: DTH Drill Pipes Length: 4m/5m/6m
Diameter: 89mm 114mm Thread: 2 3/8” API Reg
Joint Material: 4145H Pipe Material: 45# Steel
High Light:

down the hole drilling tools

,

downhole drilling tools

Drill Pipe OD 114mm Length 6m With Thread 2 3/8” API Reg Pin & 2 3/8” API Reg Box For Atlas Copco ROC860 Drill



Drill Pipe Description



In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.



114mm - 6m Drill Pipe



Drill pipe 114mm OD x 6.00m Length x 10mm wall thickness x 3 1/2" API Reg Pin & 3 1/2" API Reg Box, no wrench flats for Atlas Copco ROC L8 equivalent to Secoroc P/N214-8760-44,40-06

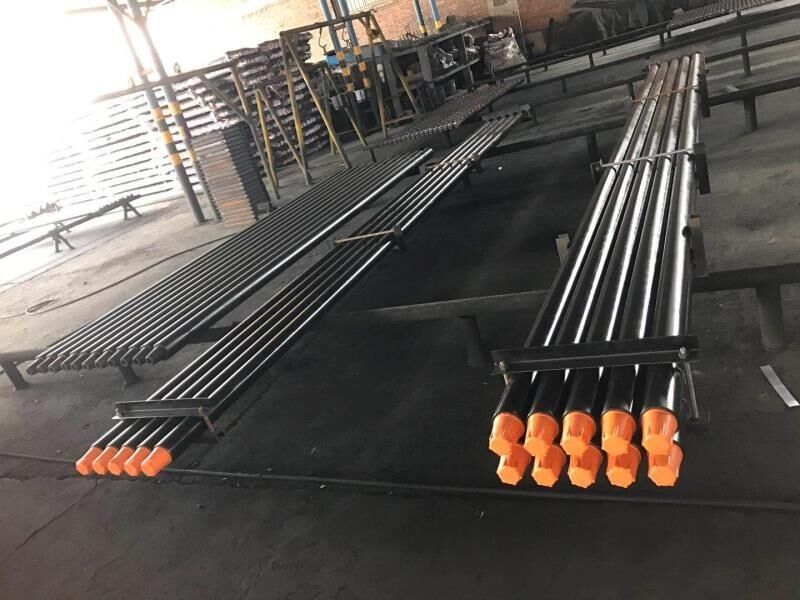

Drill Pipe Photos:

API Standard DTH Drill Pipe OD 114mm Length 6m For Atlas Copco ROC860 Drill 0API Standard DTH Drill Pipe OD 114mm Length 6m For Atlas Copco ROC860 Drill 1API Standard DTH Drill Pipe OD 114mm Length 6m For Atlas Copco ROC860 Drill 2



Drill Pipe Features:



Friction welded
• Friction welding gives much stronger joints compared with electrode welding due to less risk of impure joints.



Competitive Advantage

High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



More Drill Pipe Specification:

DTH DRILL PIPES
Outer diameter Thread Wall thickness Length Wrench flat Weight Part Number
mm inch mm inch mm foot mm inch kg
API regular thread
76 3    2 3/8 API Reg 5.5  2/9 1000 3 2/7 57 2 1/4 17 4148301544
76 3    2 3/8 API Reg 5.5  2/9 1500 5    57 2 1/4 22 4148301545
76 3    2 3/8 API Reg 5.5  2/9 2000 6 5/9 57 2 1/4 26 4148301546
76 3    2 3/8 API Reg 5.5  2/9 3000 9 5/6 57 2 1/4 35 4148301547

76 3    2 3/8 API Reg



5.5
 2/9 1000 3 2/7 65 2 5/9 17 4148301548
76 3    2 3/8 API Reg 5.5  2/9 1500 5    65 2 5/9 22 4148301549
76 3    2 3/8 API Reg 5.5  2/9 2000 6 5/9 65 2 5/9 26 4148301550
76 3    2 3/8 API Reg 5.5  2/9 3000 9 5/6 65 2 5/9 35 4148301551

76 3    2 3/8 API Reg 6.5  1/4 3000 9 5/6 65 2 5/9 46 4148301552
76 3    2 3/8 API Reg 6.5  1/4 4500 14 3/4 65 2 5/9 56 4148301553
76 3    2 3/8 API Reg 6.5  1/4 6000 19 2/3 65 2 5/9 73 4148301554

89 3 1/2 2 3/8 API Reg 5.5  2/9 1000 3 2/7 65 2 5/9 20 4148301555
89 3 1/2 2 3/8 API Reg 5.5  2/9 1500 5    65 2 5/9 25 4148301556
89 3 1/2 2 3/8 API Reg 5.5  2/9 2000 6 5/9 65 2 5/9 30 4148301557
89 3 1/2 2 3/8 API Reg 5.5  2/9 3000 9 5/6 65 2 5/9 40 4148301558

89 3 1/2 2 3/8 API Reg 6.5  1/4 1000 3 2/7 65 2 5/9 21 4148301559
89 3 1/2 2 3/8 API Reg 6.5  1/4 1500 5    65 2 5/9 26 4148301560
89 3 1/2 2 3/8 API Reg 6.5  1/4 2000 6 5/9 65 2 5/9 32 4148301561
89 3 1/2 2 3/8 API Reg 6.5  1/4 3000 9 5/6 65 2 5/9 45 4148301562
89 3 1/2 2 3/8 API Reg 6.5  1/4 4500 14 3/4 65 2 5/9 65 4148301563
89 3 1/2 2 3/8 API Reg 6.5  1/4 6000 19 2/3 65 2 5/9 84 4148301564
F Thread
Outer diameter Thread Wall thickness Length Wrench flat Weight Part Number
mm inch mm inch mm foot mm inch kg
50 2 F42×10 4.5  1/6 1000 3 2/7 40 1 5/8 - 4148301565
60 2 3/8 F48×10 4.5  1/6 1000 3 2/7 40 1 5/8 - 4148301566
60 2 3/8 F48×10 4.5  1/6 1500 5    40 1 5/8     -  4148301567
60 2 3/8 F48×10 4.5  1/6 2000 6 5/9 40 1 5/8     -  4148301568
60 2 3/8 F48×10 4.5  1/6 3000 9 5/6 40    1 5/8     -  4148301569




Available in a variety of lengths, diameters, wall thicknesses, and thread configurations.



Applications



• Underground mining
• Quarry benching operations
• Water well drilling
