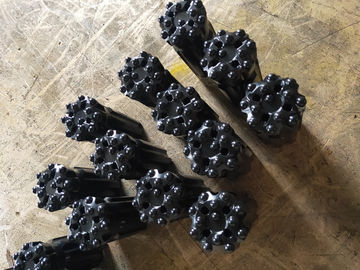

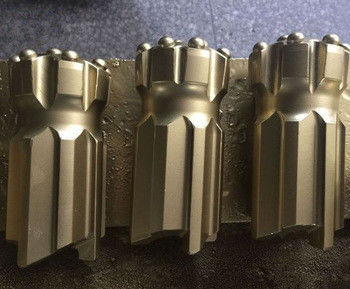

Forging Top Hammer Drilling / T45 Retract Thread Button Rock Drill Bit 76mm

Forging Top Hammer Drilling / T45 Retract Thread Button Rock Drill Bit 76mm

    • Forging Top Hammer Drilling / T45 Retract Thread Button Rock Drill Bit 76mm
    • Forging Top Hammer Drilling / T45 Retract Thread Button Rock Drill Bit 76mm
  • Forging Top Hammer Drilling / T45 Retract Thread Button Rock Drill Bit 76mm

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Retractable Drill Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10-22days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 30000pcs per month
    Contact Now
    Detailed Product Description
    Type: Retractable Drill Bit Thread: T45,76mm
    Processing Type: Forging Use: Mining,Tunneling,Quarrying,Construction
    Color: Any Color Is Available

    Top hammer drilling tools bits / T45 retrac thread button rock drill bit 76mm





    Description for button rock drill bits :

    1.Mterial: drill bit made from tugestun carbide , which is same as BORT LONGYEAR.

    2.Type: Hot-press inserting .



    With the top quality of alloy steels imported from USA and the best carbides made in China, we produce all threaded button bits by hot press technology.

    A comprehensive range of various button bits shown as below:
    Thread sizes: R25, R28, SSR28, R32, SSR32, R35, SSR35, R38, T38, T45, T51, SST58, SST68, SGT60;
    Head diameters: 33mm ~ 152mm;
    Face designs : flat face, drop center, uni-face;





    specification

    1<

    Part Number Bit Diameter (mm) Bit Diameter (inch)

    Front Buttons

    (No. x mm)

    Gauge Buttons

    (No. x mm)

    4148300521 45 1 7/9 3x8 6x9
    4148300522 48 1 8/9 3x9 6x10
    4148300523 51 2 3x9 6x10
    4148300524 64 2 1/2 3x10, 1x10 6x11
    4148300525 64 2 1/2 4x10 8x10
    4148300526 76 3 4x11, 1x11 8x11
    4148300609 48 1 8/9 3x8 6x10
    4148300610 51 2 3x9 6x10

    2<

    Product Code and Brief Description Angle

    Front Flushing

    Holes

    Side Flushing

    Holes

    Weight

    (kg)

    R945-R32-S, R32 Retrac Button Bit,

    Spherical Buttons

    40° 3 - 1.1

    R948-R32-S, R32 Retrac Button Bit,

    Spherical Buttons

    30° 3 - 1.2

    R951-R32-S, R32 Retrac Button Bit,

    Spherical Buttons

    30° 3 - 1.4
    R1064-R32-S, R32 Retrac Button Bit, Spherical Buttons 35° 3 - 2.2
    R1264-R32-S, R32 Retrac Button Bit, Spherical Buttons 40° 2 - 2.2
    R1376-R32-S, R32 Retrac Button Bit, Spherical Buttons 35° 4 1 3.5

    R948-R32-S, R32 Retrac Button Bit,

    Spherical Buttons

    40° 3 - 1.2

    R951-R32-S, R32 Retrac Button Bit,

    Spherical Buttons

    35° 3 - 1.4



    Forging Top Hammer Drilling / T45 Retract Thread Button Rock Drill Bit 76mm
