BR Series Middle Low Air Pressure DTH Hammers Model BR1 BR2 BR3 With Fast Drilling Speed

BR Series Middle Low Air Pressure DTH Hammers Model BR1 BR2 BR3 With Fast Drilling Speed

BR Series Middle Low Air Pressure DTH Hammers Model BR1 BR2 BR3 With Fast Drilling Speed

Product Details:

Place of Origin: China
Brand Name: MIROC Rock Drilling Tools
Certification: API
Model Number: BR Series DTH Hammer

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece DTH Hammer
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 10-15 Days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product Name: Middle Low Air Pressure DTH Hammers Model: BR1 BR2 BR3
Series: BR DTH Hammer Type: With Foot Valve, Without Foot Valve
Use: Tunneling, Mining,Quarrying,Water Well Color: Green

BR Series Middle Low Air Pressure DTH Hammers With Model BR1 BR2 BR3





BR Series Middle Low Air Pressure DTH Hammer With Foot Valve Specification:

Description Weight(kg)
BR1 BR2 BR3
1.Top sub 1.70 2.60 5.20
2. O Type Ring 0.10 0.10 0.10
3. Check Valve 0.10 0.10 0.10
4. Spring 0.05 0.05 0.20
5. Air Distributor 0.80 0.60 0.80
6. Internal cylinder 0.80 0.80 1.30
7. Piston 1.20 3.80 5.50
8. External Cylinder 4.00 4.50 9.50
9. Guide sleeve 0.15 0.60 1.00
10. O-ring Of Stop Ring 0.005 0.005 0.05
11. Stop Ring 0.10 0.10 0.15
12. Drive Chuck 0.80 1.20 2.00
13. Drill Bit 1.70 2.50 4.00
Technical Data
Model BR1A BR2A BR3A
Length (Without Bit) 760mm 880mm 889mm
Weight (Without Bit) 10.00kg 14.50kg 26.00kg
External Diameter φ54mm φ62mm φ82mm
Bit Shank BR1 BR2 BR3
Hole Range φ64 - φ76mm φ70- φ90mm φ90- φ110mm
Connection Thread Br40, Box Rd50, Box API 2 3/8 '' Reg
Working Pressure 1.0 - 1.5 Mpa 1.0 - 1.5 Mpa 1.0 - 1.5 Mpa
Impact Rate at 17 Bar 27HZ 25HZ 25HZ
Recommended Rotation Speed 25 - 40 r/min 25 - 40 r/min 25 - 40 r/min
Air Consumption 0.7Mpa: 1.5 m³/ min 0.7Mpa: 2.5 m³/ min 0.7Mpa: 4 m³/ min
1.0Mpa: 2.5 m³/ min 1.0Mpa: 4 m³/ min 1.0Mpa: 6 m³/ min
1.4Mpa: 3 m³/ min 1.4Mpa: 5 m³/ min 1.4Mpa: 8 m³/ min






BR DTH Hammer Features:



1. The operating air pressure is between 0.7 MPa and 1.75 MPa.

2. Valveless hammers.

3. Simple structure, easy to assemble and to disassemble, long life span.

4. Higher impact frequency and faster drilling speed.

5. Lower air consumption and lower oil consumption. A hole can be drilled on the check valve to provide more efficient cuttings discharge.

6. Especially suitable for quarrying.




BR1 BR2 BR3 Middle - Low Air Pressure DTH Hammer Applications



1. Underground mining

2. Quarry benching operations

3. Water well drilling





BR DTH Hammer Advantage:



BR1, BR2, BR3 series DTH hammers are designed to operate efficiently at low air pressures and medium air pressures, using BR series bits.

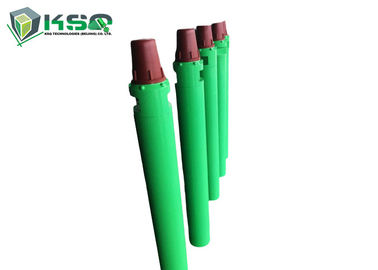

BR DTH Hammer Photo:



BR Series Middle Low Air Pressure DTH Hammers Model BR1 BR2 BR3 With Fast Drilling Speed
