| Product Name: | DTH Hammer | Series: | DHD And COP Series |
|---|---|---|---|
| Bit Shank: | DHD3.5 COP44/DHD340 COP54/DHD350R DHD350Q COP64/DHD360 COP84/DHD380 DHD1120 | Type: | With Foot Valve |
| Diameter: | 82mm-275mm | Color: | Green, Black, Orange, Blue, Golden Etc. |
| High Light: | down hole hammer,down the hole hammer |
||

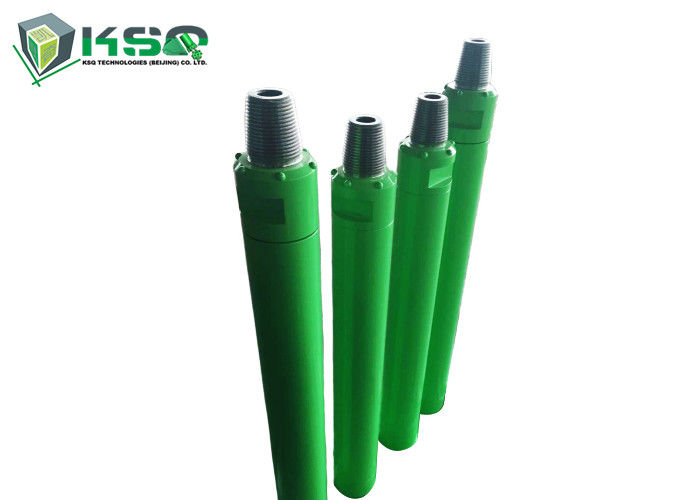

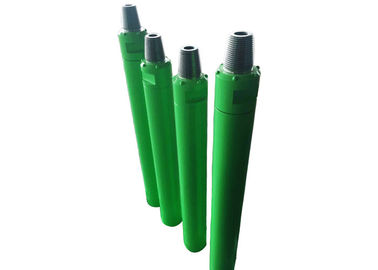

DHD and COP Series DTH Hammers High Air Pressure With Low Consumption of Impaction Energy
DHD and COP Series DTH Hammer Structure and Specification:
| Description | Weight(kg) | ||||||
| DHD3.5 |
COP44 /DHD340 |
COP54 /DHD350R |
DHD350Q |
COP64 /DHD360 |
COP84 /DHD380 |
DHD1120 | |
| 1.Top sub | 4.20 | 6.50 | 15.00 | 13.70 | 20.00 | 41.00 | 70.00 |
| 2. O-ring Of Top Sub | 0.01 | 0.01 | 0.01 | 0.01 | 0.02 | 0.02 | 0.04 |
| 3.Breakout Ring | 0.01 | - | - | - | - | 0.20 | 0.80 |
| 4.Check Valve | 0.20 | 0.42 | 1.00 | 1.00 | 1.00 | 1.50 | 3.00 |
| 5. Spring | 0.02 | 0.04 | 0.04 | 0.04 | 0.04 | 0.10 | 0.10 |
| 6. Compression Buffer | 0.04 | 0.04 | 0.08 | 0.08 | 0.08 | 0.42 | 1.00 |
| 7. Air Distributor | 1.40 | 2.20 | 3.70 | 3.50 | 5.00 | 12.50 | 20.00 |
| 8. Internal cylinder | 1.60 | 2.30 | 4.50 | 4.20 | 5.00 | 8.60 | 23.00 |
| 9. Piston | 5.40 | 9.00 | 15.50 | 17.20 | 23.60 | 41.00 | 125.00 |
| 10. External Cylinder | 9.50 | 15.00 | 30.00 | 26.50 | 36.80 | 62.00 | 170.00 |
| 11. Guide sleeve | 1.20 | 2.40 | 9.60 | 16.00 | |||
| 12. O-ring Of Stop Ring | 0.01 | 0.01 | 0.01 | 0.02 | 0.02 | 0.02 | 0.04 |
| 13. Stop Ring | 0.20 | 0.20 | 0.30 | 0.50 | 0.60 | 1.20 | 4.50 |
| 14. Breakout Ring | 0.01 | 0.20 | 0.80 | ||||
| 15. Drive Chuck | 1.95 | 3.50 | 6.40 | 4.50 | 6.00 | 17.50 | 48.00 |
| 16. Drill Bit | 5.00 | 9.00 | 16.00 | 15.60 | 26.00 | 40.00 | 120.00 |
| Technical Data | |||||||
| Model | DHD3.5 |
COP44 /DHD340 |
COP54 /DHD350R |
DHD350Q |
COP64 /DHD360 |
COP84 /DHD380 |
DHD1120 |
| Length (Without Bit) | 930mm | 1030mm | 1214mm | 1160mm | 1248mm | 1492mm | 1900mm |
| Weight (Without Bit) | 25.00kg | 39.00kg | 76.50kg | 72.50kg | 100.00kg | 188.00kg | 480.00kg |
| External Diameter | φ82mm | φ99mm | φ126mm | φ126mm |
φ142mm, φ144mm, φ146mm, φ148mm, |
φ180mm, φ185mm, | φ275mm |
| Bit Shank | DHD3.5 |
COP44 /DHD340 |
COP54 /DHD350R |
ND55C /DHD350Q |
COP64 /DHD360 |
COP84 /DHD380 |
DHD1120 |
| Hole Range | φ92 - φ110mm | φ110 - φ135mm | φ135 - φ155mm | φ135 - φ155mm | φ155 - φ190mm | φ195 - φ254mm | φ305 - φ445mm |
| Connection Thread | API 2 3/8 '' Reg | API 2 3/8 '' Reg | API 2 3/8 '' Reg, API 3 1/2 '' Reg, API 2 7/8 '' Reg | API 2 3/8 '' Reg, API 3 1/2 '' Reg, API 2 7/8 '' Reg | API 3 1/2 '' Reg | API 4 1/2 '' Reg | API 6 5/8 '' Reg |
| Working Pressure | 1.0 - 1.5 Mpa | 1.2 - 2.0 Mpa | 1.3 - 2.3 Mpa | 1.3 - 2.3 Mpa | 1.5 - 2.5 Mpa | 1.5 - 3.0 Mpa | 2.0 - 3.5 Mpa |
| Impact Rate at 17 Bar | 28HZ | 27HZ | 25HZ | 25HZ | 23HZ | 27HZ | 16HZ |
| Recommended Rotation Speed | 25 - 40 r/min | 25 - 40 r/min | 20 - 35 r/min | 20 - 35 r/min | 20 - 30 r/min | 20 - 30 r/min | 15 - 25 r/min |
| Air Consumption | 1.0Mpa: 4.5 m³/ min | 1.0Mpa: 6 m³/ min | 1.0Mpa: 9 m³/ min | 1.0Mpa: 9 m³/ min | 1.0Mpa: 10 m³/ min | 1.0Mpa: 15 m³/ min | 1.0Mpa: 30 m³/ min |
| 1.5Mpa: 9 m³/ min | 1.8Mpa: 10 m³/ min | 1.8Mpa: 15 m³/ min | 1.8Mpa: 15 m³/ min | 1.8Mpa: 20 m³/ min | 1.8Mpa: 26 m³/ min | 1.8Mpa: 56 m³/ min | |
| 2.4Mpa: 23 m³/ min | 2.4Mpa: 23 m³/ min | 2.4Mpa: 23 m³/ min | 2.4Mpa: 28.5 m³/ min | 2.4Mpa: 34 m³/ min | 2.4Mpa: 78 m³/ min | ||
The Characteristics of High Air Pressure DTH Hammers With Foot Valve:
It is a kind of valveless high air pressure DTH hammer with foot valve.
Valveless air distribution hammer, more reliable of air distribution.
Good sealabIlity, no water and cuttings entering into hammer in water exists drilling.
DHD and COP Series DTH Hammers Features:
1. Valveless air distribution, more reliable.
2. The simple design of the piston. Long life span.
3. More efficient energy transfer, faster drilling speed, low air consumption, and lower oil consumption.
4. Fewer internal parts, simple structure, long life span, less failure and easier to maintain because all the parts are heat treated.
5. Easy to disassemble because the top sub, the drive chuck, and the external cylinder are connected by multiple steps thread.
DHD / COP Series DTH Hammers Advantages:
1. Simple and reasonable design, easy to assemble and dis-assemble, low problem rate.
2. Low air consumption, smooth drilling, maximum impact power, high penetration rate.
3. Multiple precise heat-treatment with all hammer parts to provide long lifespan under roughest working conditions.
Applications
Available for all working conditions, high performance in overburden and water well drilling projects
Factory
Rock Drilling Tools Brand MIROC®
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
