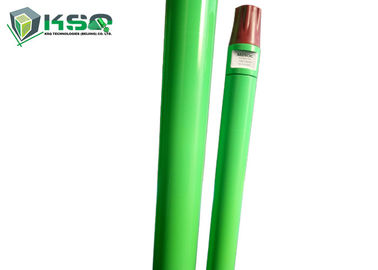

High Air Pressure Dth Drilling System / Down Hole Hammer Without Foot Valve

High Air Pressure Dth Drilling System / Down Hole Hammer Without Foot Valve

  • High Air Pressure Dth Drilling System / Down Hole Hammer Without Foot Valve
  • High Air Pressure Dth Drilling System / Down Hole Hammer Without Foot Valve
  • High Air Pressure Dth Drilling System / Down Hole Hammer Without Foot Valve
High Air Pressure Dth Drilling System / Down Hole Hammer Without Foot Valve
Product Details:
Place of Origin: China
Brand Name: MIROC DTH Rock Drilling Tools
Certification: API
Model Number: DHD and COP Series DTH Hammer Without Foot Valve
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece DTH Hammer
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 10-15 Days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product Name: DTH Hammer Series: DHD And COP Series
Bit Shank: DHD3.5 COP44/DHD340 COP54/DHD350R DHD350Q COP64/DHD360 COP84/DHD380 DHD1120 Type: Without Foot Valve
Working Pressure: 1.0Mpa - 2.3Mpa Color: Green, Black, Orange, Blue, Golden Etc.
High Light:

down the hole drilling tools

,

down the hole hammer

High Air Pressure DTH Hammer Without Foot Valve - COP/DHD Series DTH Hammer



DTH Hammer Model:



3'' - IR 3.5 DTH Hammer



COP Series DTH Hammer



4'' - COP44 DTH Hammer

5'' - COP54 DTH Hammer

6'' - COP64 DTH Hammer

8'' - COP84 DTH Hammer



DHD Series DTH Hammer



4'' - DHD340 DTH Hammer

5'' - DHD350 DTH Hammer

6'' - DHD360 DTH Hammer

8'' - DHD380 DTH Hammer

12'' - DHD1120 DTH Hammer





DHD and COP Series DTH Hammer Without Foot Valve Structure and Specification:

High Air Pressure Dth Drilling System / Down Hole Hammer Without Foot Valve 0



Description Weight(kg)
IR3.5

COP44

/DHD340

COP44

/DHD340

COP54

/DHD350R

COP54

/DHD350R

1.Top sub 4.20 6.50 6.00 13.70 13.30
2. O-ring Of Top Sub 0.01 0.01 0.01 0.015 0.015
3.Breakout Ring - - - - -
4.Check Valve 0.20 0.35 0.30 0.70 0.70
5. Spring 0.02 0.05 0.05 0.10 0.10
6. Air Distributor 0.80 1.50 1.30 2.00 1.90
7. Internal cylinder 1.30 2.10 1.90 2.80 2.70
8. Piston 5.50 8.50 7.80 15.00 14.50
9. External Cylinder 9.50 15.20 14.60 24.00 23.00
10. Guide sleeve 1.00 1.30 1.20 2.60 2.50
11. O-ring Of Stop Ring 0.05 0.01 0.005 0.01 0.01
12. Stop Ring 0.15 0.30 0.20 0.50 0.50
13. Breakout Ring - - - - -
14. Drive Chuck 1.90 3.40 3.40 6.50 6.20
15. Drill Bit 5.00 9.00 8.50 16.00 15.50





Description Weight(kg)
DHD350Q

COP64

/DHD360

COP64

/DHD360

COP84

/DHD380

DHD1120
1.Top sub 13.70 20.00 23.00 34.00 70.00
2. O-ring Of Top Sub 0.015 0.02 0.015 0.015 0.040
3.Breakout Ring - - - 0.30 0.80
4.Check Valve 0.70 0.70 0.70 1.20 2.00
5. Spring 0.10 0.10 0.10 0.10 0.10
6. Air Distributor 2.00 3.50 4.50 6.00 16.00
7. Internal cylinder 2.80 4.20 6.50 6.50 25.00
8. Piston 15.00 23.00 28.00 42.50 113.00
9. External Cylinder 25.00 31.50 40.00 60.00 173.00
10. Guide sleeve 3.20 6.50 7.50 5.30 24.00
11. O-ring Of Stop Ring 0.01 0.01 0.01 0.01 0.01
12. Stop Ring 0.50 0.60 0.80 1.20 4.00
13. Breakout Ring - - - 0.30 0.80
14. Drive Chuck 4.00 6.00 8.00 17.50 46.00
15. Drill Bit 15.90 26.00 28.50 40.00 140.00





DHD and COP Series DTH Hammer Without Foot Valve Technical Parameters



Technical Data
Model IR3.5

COP44

/DHD340

COP44

/DHD340

COP54

/DHD350R

COP54

/DHD350R

Length (Without Bit) 888mm 1011mm 986mm 1110mm 1110mm
Weight (Without Bit) 25.00kg 43.20kg 37.00kg 69.00kg 66.00kg
External Diameter φ82mm φ99mm φ92mm φ126mm φ116mm
Bit Shank IR3.5

COP44

/DHD340

COP44

/DHD340

COP54

/DHD350R

COP54

/DHD350R

Hole Range φ90 - φ115mm φ110 - φ135mm φ105 - φ120mm φ135 - φ155mm φ127 - φ145mm
Connection Thread API 2 3/8 '' Reg API 2 3/8 '' Reg API 2 3/8 '' Reg API 2 3/8 '' Reg, API 3 1/2 '' Reg, API 2 7/8 '' Reg, API 2 7/8 '' IF API 2 3/8 '' Reg, API 3 1/2 '' Reg, API 2 7/8 '' Reg
Working Pressure 1.0 - 1.5 Mpa 1.2 - 2.0 Mpa 1.2 - 2.0 Mpa 1.3 - 2.3 Mpa 1.3 - 2.3 Mpa
Impact Rate at 17 Bar 25HZ 30HZ 30HZ 28HZ 28HZ
Recommended Rotation Speed 25 - 40 r/min 22 - 35 r/min 25 - 40 r/min 20 - 35 r/min 20 - 35 r/min
Air Consumption 1.0Mpa: 3.8 m³/ min 1.0Mpa: 6 m³/ min 1.8Mpa: 8 m³/ min 1.0Mpa: 7 m³/ min 1.0Mpa: 7 m³/ min
1.5Mpa: 7.5 m³/ min 1.8Mpa: 10 m³/ min 2.4Mpa: 13 m³/ min 1.8Mpa: 14 m³/ min 1.8Mpa: 13.5 m³/ min
  2.4Mpa: 15 m³/ min   2.4Mpa: 19 m³/ min 2.4Mpa: 18 m³/ min



Technical Data
Model DHD350Q

COP64

/DHD360

COP64

/DHD360

COP84

/DHD380

DHD1120
Length (Without Bit) 1102mm 1238mm 1258mm 1359mm 1880mm
Weight (Without Bit) 68.00kg 98.00kg 120.00kg 175.00kg 474.00kg
External Diameter φ126mm φ142mm, φ146mm φ165mm φ180mm, φ185mm φ275mm
Bit Shank

ND55C

/DHD350Q

COP64

/DHD360

COP64

/DHD360

COP84

/DHD380

DHD1120
Hole Range φ135 - φ155mm φ155 - φ203mm φ175 - φ216mm φ195 - φ254mm φ305 - φ445mm
Connection Thread API 2 3/8 '' Reg, API 3 1/2 '' Reg, API 2 7/8 '' Reg API 3 1/2 '' Reg API 3 1/2 '' Reg API 4 1/2 '' Reg API 6 5/8 '' Reg
Working Pressure 1.3 - 2.3 Mpa 1.5 - 3.0 Mpa 1.5 - 3.0 Mpa 1.5 - 3.0 Mpa 2.0 - 3.5 Mpa
Impact Rate at 17 Bar 28HZ 25HZ 23HZ 22HZ 20HZ
Recommended Rotation Speed 20 - 35 r/min 20 - 30 r/min 20 - 30 r/min 15 - 25 r/min 15 - 25 r/min
Air Consumption 1.0Mpa: 8 m³/ min 1.0Mpa: 9 m³/ min 1.0Mpa: 11 m³/ min 1.0Mpa: 12 m³/ min 1.0Mpa: 28 m³/ min
1.8Mpa: 14 m³/ min 1.8Mpa: 18 m³/ min 1.8Mpa: 20 m³/ min 1.8Mpa: 22 m³/ min 1.8Mpa: 50 m³/ min
2.4Mpa: 19 m³/ min 2.4Mpa: 26 m³/ min 2.4Mpa: 28 m³/ min 2.4Mpa: 28 m³/ min 2.4Mpa: 71 m³/ min



The Characteristics of High Air Pressure DTH Hammers Without Foot Valve:



It is a kind of high air pressure DTH hammer without foot valve, and it is our newest design. It is also one of the most advanced DTH hammers in the world.



High Air Pressure DTH Hammers Without Foot Valve Advantages:



1. Out of the trouble of foot valve fracture and expansion and contraction.

2. Lower energy consumption and higher impact frequency.

    The drilling speed is 15-30% higher than the one with foot valve.

3. Simple structure, reliable parts, long life span, easy and cheap maintenance.

4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.





DHD and COP Series DTH Hammers Features:



1. Valveless air distribution, more reliable.

2. The simple design of the piston. Long life span.

3. More efficient energy transfer, faster drilling speed, low air consumption, and lower oil consumption.

4. Fewer internal parts, simple structure, long life span, less failure and easier to maintain because all the parts are heat treated.

5. Easy to disassemble because the top sub, the drive chuck, and the external cylinder are connected by multiple steps thread.



DHD / COP Series DTH Hammers Advantages:



1. Simple and reasonable design, easy to assemble and dis-assemble, low problem rate.
2. Low air consumption, smooth drilling, maximum impact power, high penetration rate.
3. Multiple precise heat-treatment with all hammer parts to provide long lifespan under roughest working conditions.



Applications

  • Blast hole
  • Water well
  • Environmental
  • Exploration
  • Construction

Available for all working conditions, high performance in overburden and water well drilling projects
