    Detailed Product Description

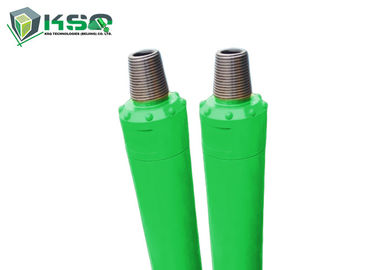

    Product Name: DTH Hammer Series: QL Series QL4 QL5 QL6 QL8
    Foot Valve: Without Foot Valve Thread: API 3 1/2 '' Reg, API 2 7/8 '' Reg, API 2 7/8 '' IF
    Size: 4'' 5'' 6'' 8'' Inch Drilling Hole Range: 110mm-254mm

    High Air Pressure DTH Hammer Without Foot Valve - QL Series DTH Hammer



    DTH Hammer Model:



    4'' - QL4 DTH Hammer

    5''- QL5 DTH Hammer

    6''- QL6 DTH Hammer

    8''- QL8 DTH Hammer



    QL (QL4 QL5 QL6 QL8) Series Series DTH Hammer - Without Foot Valve

    Structure and Specification:

    8'' Inch Water Well Drilling Tools / Air Drill Hammers And Bits Long Life Span



    Description Weight(kg)
    QL40 QL50 QL60 QL80 QL80
    1.Top sub 6.50 13.70 20.00 34.00 35.00
    2. O-ring Of Top Sub 0.01 0.015 0.015 0.015 0.01
    3.Breakout Ring - - - 0.30 0.04
    4.Check Valve 0.35 0.70 0.70 1.20 1.20
    5. Spring 0.05 0.10 0.10 0.10 0.10
    6. Air Distributor 1.50 2.00 3.50 6.00 7.00
    7. Internal cylinder 2.10 2.70 4.20 6.50 7.50
    8. Piston 8.50 15.00 23.00 42.50 48.00
    9. External Cylinder 15.20 24.00 30.00 59.00 75.00
    10. Guide sleeve 1.80 3.00 4.00 6.30 12.00
    11. O-ring Of Stop Ring 0.005 0.01 0.01 0.01 0.01
    12. Stop Ring 0.20 0.40 0.60 1.40 1.70
    13. Breakout Ring - - - 0.30 0.40
    14. Drive Chuck 3.20 4.50 5.50 13.00 15.00
    15. Drill Bit 9.00 16.00 25.00 35.00 50.00



    QL (QL4 QL5 QL6 QL8) Series DTH Hammer -Without Foot Valve Technical Parameter



    Technical Data
    Model QL40 QL50 QL60 QL80 QL80
    Length (Without Bit) 1070mm 1090mm 1183mm 1330mm 1340mm
    Weight (Without Bit) 40.00kg 67.00kg 92.00kg 171.00kg 203.00kg
    External Diameter φ99mm φ126mm φ146mm, φ148mm φ180mm, φ185mm φ203mm
    Bit Shank QL40 QL50 QL60 QL80 QL80
    Hole Range φ110 - φ135mm φ135- φ155mm φ155 - φ203mm φ195 - φ254mm φ216 - φ254mm
    Connection Thread API 2 3/8 '' Reg API 2 3/8 '' Reg, API 3 1/2 '' Reg, API 2 7/8 '' Reg API 3 1/2 '' Reg API 4 1/2 '' Reg API 4 1/2 '' Reg
    Working Pressure 1.2 - 2.0 Mpa 1.3 - 2.3 Mpa 1.5 - 2.5 Mpa 1.5 - 3.0 Mpa 1.8 - 3.0 Mpa
    Impact Rate at 17 Bar 30HZ 28HZ 25HZ 22HZ 22HZ
    Recommended Rotation Speed 20 - 30 r/min 20 - 35 r/min 20 - 30 r/min 15 - 25 r/min 15 - 25 r/min
    Air Consumption 1.0Mpa: 5 m³/ min 1.0Mpa: 7 m³/ min 1.0Mpa: 9 m³/ min 1.0Mpa: 12 m³/ min 1.0Mpa: 16 m³/ min
    1.8Mpa: 9 m³/ min 1.8Mpa: 14 m³/ min 1.8Mpa: 18 m³/ min 1.8Mpa: 22 m³/ min 1.8Mpa: 28 m³/ min
    2.4Mpa: 14 m³/ min 2.4Mpa: 19 m³/ min 2.4Mpa: 26 m³/ min 2.4Mpa: 28 m³/ min 2.4Mpa: 39 m³/ min





    The Characteristics of High Air Pressure DTH Hammers Without Foot Valve:



    It is a kind of high air pressure DTH hammer without foot valve, and it is our newest design. It is also one of the most advanced DTH hammers in the world.





    Valveless air distribution hammer, more reliable of air distribution.



    Good sealabIlity, no water, and cuttings entering into hammer in water exist drilling.



    High Air Pressure DTH Hammers Without Foot Valve Advantages:



    1. Out of the trouble of foot valve fracture and expansion and contraction.

    2. Lower energy consumption and higher impact frequency.

    The drilling speed is 15-30% higher than the one with foot valve.

    3. Simple structure, reliable parts, long life span, easy and cheap maintenance.

    4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.





    QL Series DTH Hammers Features:



    1. Valveless air distribution, more reliable.

    2. The simple design of the piston. Long life span.

    3. More efficient energy transfer, faster drilling speed, low air consumption, and lower oil consumption.

    4. Fewer internal parts, simple structure, long life span, less failure and easier to maintain because all the parts are heat treated.

    5. Easy to disassemble because the top sub, the drive chuck, and the external cylinder are connected by multiple steps thread.



    QL Series DTH Hammers Advantages:



    1. Simple and reasonable design, easy to assemble and dis-assemble, low problem rate.
    2. Low air consumption, smooth drilling, maximum impact power, high penetration rate.
    3. Multiple precise heat-treatment with all hammer parts to provide long lifespan under roughest working conditions.



    Applications

    • Blast hole
    • Water well
    • Environmental
    • Exploration
    • Construction

    Available for all working conditions, high performance in overburden and water well drilling projects



    DTH Hammer Package

    8'' Inch Water Well Drilling Tools / Air Drill Hammers And Bits Long Life Span



    8'' Inch Water Well Drilling Tools / Air Drill Hammers And Bits Long Life Span

    Rock Drilling Tools Brand MIROC®

    DTH Drill Bit 127mm DHD340 Bit Shank With Spherical and Ballistic Carbide Have Foot Valve

    The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.



    MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.



    MIROC® Rock Drilling Tools include:

    • Integral Rods
    • Plug Hole Rods
    • Tapered Drilling Tools
    • Extension Drilling Tools
    • Drifting and Tunneling Tools
    • Reaming Tools
    • Shank Rods
    • Shank Adapters (Striking Bars)
    • Down-the-hole (DTH) Bits
    • Down-the-hole (DTH) Hammer
    • PDC Bit
    • Tricone Bits

    Company

    DTH Drill Bit 127mm DHD340 Bit Shank With Spherical and Ballistic Carbide Have Foot Valve                      KSQ Technologies (Beijing) Co. Ltd.provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high-quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’drilling needs and have the service skills to recommend the right drilling tools for the job.



    Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven to perform beyond industry expectations.




    Tag: QL Series DTH Hammer, down-the-hole rock drilling tools
