Forging Type Hammer Drill Bit Adapter T38 T45 T51 R32 R38 Thread For Rock Drill

Forging Type Hammer Drill Bit Adapter T38 T45 T51 R32 R38 Thread For Rock Drill

    • Forging Type Hammer Drill Bit Adapter T38 T45 T51 R32 R38 Thread For Rock Drill
    • Forging Type Hammer Drill Bit Adapter T38 T45 T51 R32 R38 Thread For Rock Drill
    • Forging Type Hammer Drill Bit Adapter T38 T45 T51 R32 R38 Thread For Rock Drill
  • Forging Type Hammer Drill Bit Adapter T38 T45 T51 R32 R38 Thread For Rock Drill

    Product Details:

    Place of Origin: China
    Brand Name: MIROC

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10 - 20 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 30000pcs per month
    Contact Now
    Detailed Product Description
    Name: Atlas Copco Shank Adapter Material: Alloy Steel
    Color: Any Color Is Available Processing Type: Forging
    Application: Ore Mining Length: 380mm-1180mm
    Thread: R25 R28 R32 T45 T51 GT60

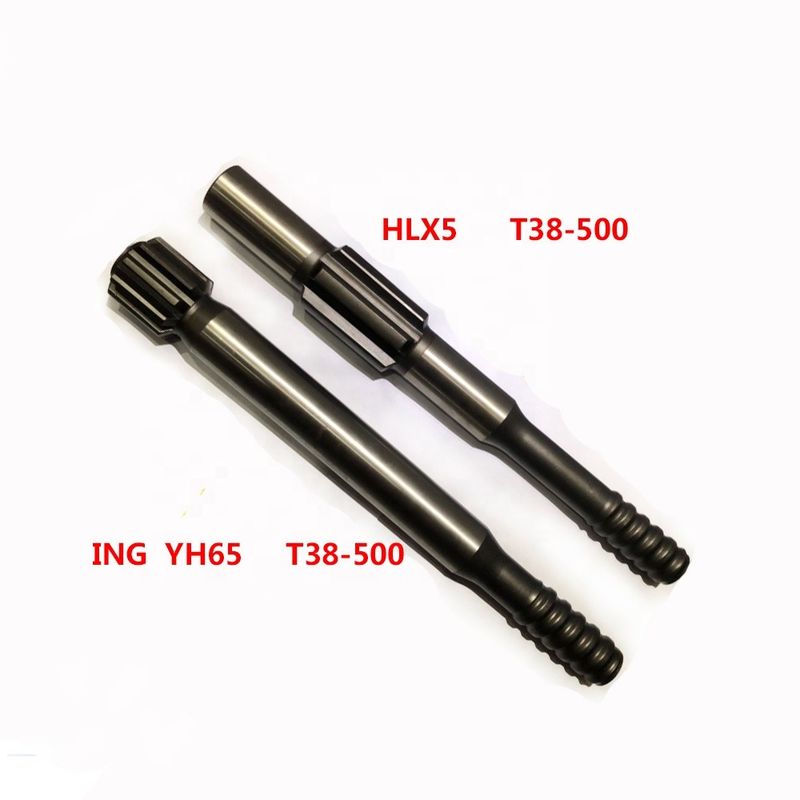

    T38 T45 T51 R32 R38 shank adapter for Rock Drill Top Hammer Tools





    Description

    Shank adapters are used for transmitting power from the rock drill to the drill stems. Generally there are male threaded shank adapters and famal threaded shank adapters. Male shank adapters are more popular than famale shank adapter. Male shank adapter are generally suited for drifting , tunneling and extension applications where high stresses are present. Females shank adapters are used when the drilling space is limited.





    We are able to produce the shank adapter to match the rock machine as follow:

    Rock drill brand: Atlas Copco, Tamrock, Ingersoll Rand, Boart Longyear, Furukawa, Montabert, Soonsan, Everdigm, others.

    Thread size: R25, R28, SSR28, R32, SSR32, R35, SSR35, R38, T38, T45, T51, SST58, SST68, SGT60





    Shank Adapter Specification





    SHANK ADAPTER
    Rock Drill Manufacturer and Model Thread Diameter Length Flushing Weight Part Number
    mm mm kg
    Ingersoll Rand 350 R32 32 380 9.0 2.1 414832550
    Ingersoll Rand Hydrastar 200 R32 45 351 - 3.7 414832551
    Ingersoll Rand VL 120, VL 140 R32 44 381 14.3 3.4 414832552
    R38 44 381 14.3 3.6 414832553
    T38 44 381 14.3 3.7 414832554
    T45 44 381 14.3 3.9 414832555
    Ingersoll Rand VL 120, VL 140 T38 44 446 14.3 4.0 414832556
    Ingersoll Rand EVL 130, VL 140 T38 44 350 14.3 3.9 414832557
    T45 44 350 14.3 4.2 414832558
    Ingersoll Rand YD 90 M R32 44 350 9.0 2.6 414832559
    R32 38 350 12.7 2.5 414832560
    Ingersoll Rand YH 45, YH50, YH55 T38 38 440 16 3.8 414832561
    Ingersoll Rand YH 60A T45 38 530 14.3 6.1 414832562
    Ingersoll Rand YH 65, YH70 T38 44 500 19.0 5.2 414832563
    T45 45 500 19.0 5.5 414832564
    Ingersoll Rand YH 65 RP T38 45 700 19.0 7.8 414832565
    T45 45 700 19.0 7.9 414832566
    Ingersoll Rand YH 80A T38 45 500 19.0 5.5 414832567
    T45 51 500 19.0 5.7 414832568
    T51 51 500 19.0 6.4 414832569
    Ingersoll Rand YH 80A RP T45 51 700 19.0 8.8 414832570
    T51 51 700 19.0 9.3 414832571
