| Place of Origin: | China |
| Brand Name: | MIROC DTH Rock Drilling Tools |
| Certification: | BECO |
| Model Number: | DTH Drill Pipe |
| Minimum Order Quantity: | 1 Piece Drill Pipe |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Bundle |
| Delivery Time: | 10- 25 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 20000pcs per month |
| Name: | DTH Blast Hole Drill Pipe | Length: | 9144mm |
|---|---|---|---|
| Diameter: | 5 1/2 Inch | Thread: | 4” BECO Pin & 4” BECO Box |
| Joint Material: | 4145H | Pipe Material: | 45# Steel |
| High Light: | down the hole drilling tools,downhole drilling tools |
||
Blast Hole Drill Pipe Diameter 140mm Length 30 Feet
140mm - 30 feet Drill Pipe Information
Blast hole Drill pipe
Diameter: 140mm (5 1/2") OD
Length: 9144mm (30 feet) shoulder to shoulder length
Wall Thickness: 20mm
Thread: 4” BECO Pin & 4” BECO Box
for CAT model MD6290
Material: 4145 and 45# steel
Weight: 560kg per piece

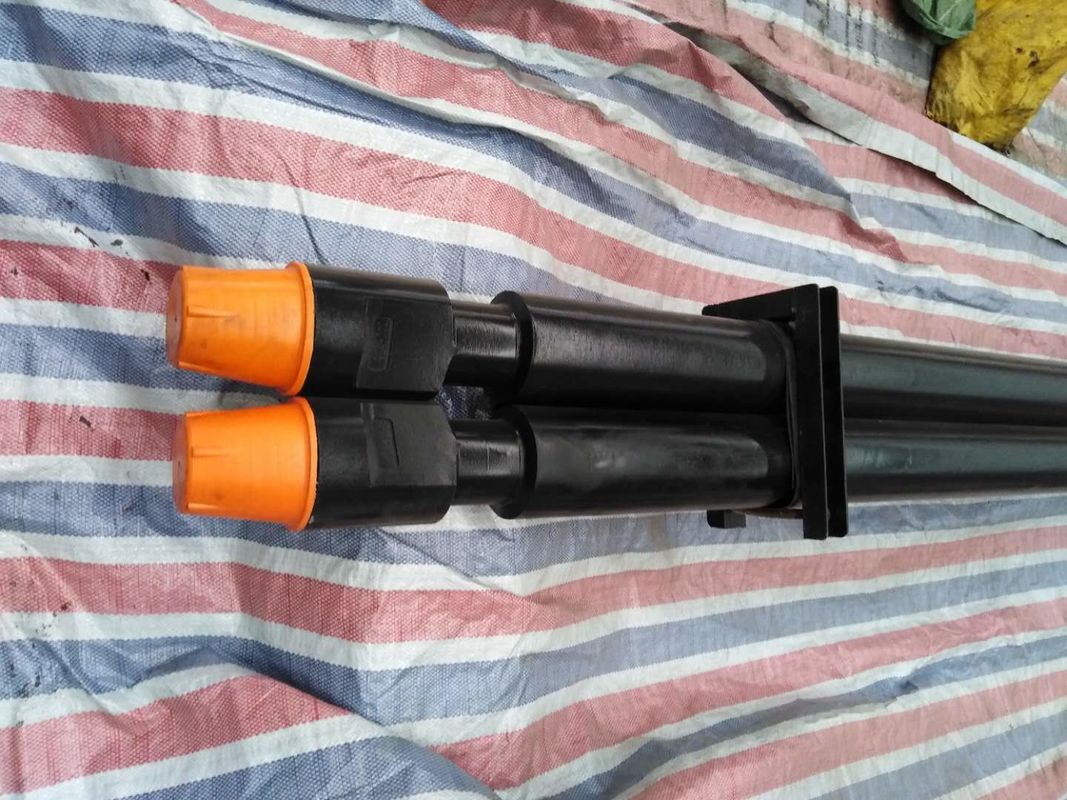

Drill Pipe Package Photo:
Drill Pipe Description
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
Drill Pipe Features:
Friction welded
• Friction welding gives much stronger joints compared with electrode welding due to less risk of impure joints.
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
More Drill Pipe Specification:
| DTH DRILL PIPES | |||||||||||
| Outer diameter | Thread | Wall thickness | Length | Wrench flat | Weight | Part Number | |||||
| mm | inch | mm | inch | mm | foot | mm | inch | kg | |||
| API regular thread | |||||||||||
| 76 | 3 | 2 3/8 API Reg | 5.5 | 2/9 | 1000 | 3 2/7 | 57 | 2 1/4 | 17 | 4148301544 | |
| 76 | 3 | 2 3/8 API Reg | 5.5 | 2/9 | 1500 | 5 | 57 | 2 1/4 | 22 | 4148301545 | |
| 76 | 3 | 2 3/8 API Reg | 5.5 | 2/9 | 2000 | 6 5/9 | 57 | 2 1/4 | 26 | 4148301546 | |
| 76 | 3 | 2 3/8 API Reg | 5.5 | 2/9 | 3000 | 9 5/6 | 57 | 2 1/4 | 35 | 4148301547 | |
| 76 | 3 | 2 3/8 API Reg |
|
2/9 | 1000 | 3 2/7 | 65 | 2 5/9 | 17 | 4148301548 | |
| 76 | 3 | 2 3/8 API Reg | 5.5 | 2/9 | 1500 | 5 | 65 | 2 5/9 | 22 | 4148301549 | |
| 76 | 3 | 2 3/8 API Reg | 5.5 | 2/9 | 2000 | 6 5/9 | 65 | 2 5/9 | 26 | 4148301550 | |
| 76 | 3 | 2 3/8 API Reg | 5.5 | 2/9 | 3000 | 9 5/6 | 65 | 2 5/9 | 35 | 4148301551 | |
| 76 | 3 | 2 3/8 API Reg | 6.5 | 1/4 | 3000 | 9 5/6 | 65 | 2 5/9 | 46 | 4148301552 | |
| 76 | 3 | 2 3/8 API Reg | 6.5 | 1/4 | 4500 | 14 3/4 | 65 | 2 5/9 | 56 | 4148301553 | |
| 76 | 3 | 2 3/8 API Reg | 6.5 | 1/4 | 6000 | 19 2/3 | 65 | 2 5/9 | 73 | 4148301554 | |
| 89 | 3 1/2 | 2 3/8 API Reg | 5.5 | 2/9 | 1000 | 3 2/7 | 65 | 2 5/9 | 20 | 4148301555 | |
| 89 | 3 1/2 | 2 3/8 API Reg | 5.5 | 2/9 | 1500 | 5 | 65 | 2 5/9 | 25 | 4148301556 | |
| 89 | 3 1/2 | 2 3/8 API Reg | 5.5 | 2/9 | 2000 | 6 5/9 | 65 | 2 5/9 | 30 | 4148301557 | |
| 89 | 3 1/2 | 2 3/8 API Reg | 5.5 | 2/9 | 3000 | 9 5/6 | 65 | 2 5/9 | 40 | 4148301558 | |
| 89 | 3 1/2 | 2 3/8 API Reg | 6.5 | 1/4 | 1000 | 3 2/7 | 65 | 2 5/9 | 21 | 4148301559 | |
| 89 | 3 1/2 | 2 3/8 API Reg | 6.5 | 1/4 | 1500 | 5 | 65 | 2 5/9 | 26 | 4148301560 | |
| 89 | 3 1/2 | 2 3/8 API Reg | 6.5 | 1/4 | 2000 | 6 5/9 | 65 | 2 5/9 | 32 | 4148301561 | |
| 89 | 3 1/2 | 2 3/8 API Reg | 6.5 | 1/4 | 3000 | 9 5/6 | 65 | 2 5/9 | 45 | 4148301562 | |
| 89 | 3 1/2 | 2 3/8 API Reg | 6.5 | 1/4 | 4500 | 14 3/4 | 65 | 2 5/9 | 65 | 4148301563 | |
| 89 | 3 1/2 | 2 3/8 API Reg | 6.5 | 1/4 | 6000 | 19 2/3 | 65 | 2 5/9 | 84 | 4148301564 | |
| F Thread | |||||||||||
| Outer diameter | Thread | Wall thickness | Length | Wrench flat | Weight | Part Number | |||||
| mm | inch | mm | inch | mm | foot | mm | inch | kg | |||
| 50 | 2 | F42×10 | 4.5 | 1/6 | 1000 | 3 2/7 | 40 | 1 5/8 | - | 4148301565 | |
| 60 | 2 3/8 | F48×10 | 4.5 | 1/6 | 1000 | 3 2/7 | 40 | 1 5/8 | - | 4148301566 | |
| 60 | 2 3/8 | F48×10 | 4.5 | 1/6 | 1500 | 5 | 40 | 1 5/8 | - | 4148301567 | |
| 60 | 2 3/8 | F48×10 | 4.5 | 1/6 | 2000 | 6 5/9 | 40 | 1 5/8 | - | 4148301568 | |
| 60 | 2 3/8 | F48×10 | 4.5 | 1/6 | 3000 | 9 5/6 | 40 | 1 5/8 | - | 4148301569 | |
Available in a variety of lengths, diameters, wall thicknesses, and thread configurations.
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
Company Information
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
Tag: Drill Pipe, Drill Rod
