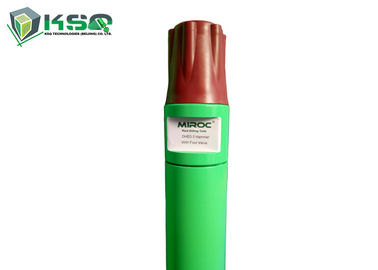

5”Dth Drilling Tools Hammer Thread Connection 3 1/2" API Reg Pin With Foot Valve

5”Dth Drilling Tools Hammer Thread Connection 3 1/2" API Reg Pin With Foot Valve

    • 5”Dth Drilling Tools Hammer Thread Connection 3 1/2" API Reg Pin With Foot Valve
    • 5”Dth Drilling Tools Hammer Thread Connection 3 1/2" API Reg Pin With Foot Valve
  • 5”Dth Drilling Tools Hammer Thread Connection 3 1/2" API Reg Pin With Foot Valve

    Product Details:

    Place of Origin: China
    Brand Name: MIROC DTH Hammer
    Certification: API
    Model Number: QL50 DTH Hammer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece DTH Hammer
    Price: Negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Name: DTH QL50 Hammer With Foot Valve Series: QL50 Bit Shank
    Size: 5 Inch Type: With Foot Valve
    Use: Tunneling, Mining,Quarrying,Water Well Color: Green



    5” DTH Hammer QL50 Top Sup Thread Connection 3 1/2" API Reg Pin With Foot Valve



    QL50 DTH Hammer Description:



    5.0” Hammer QL50 Top Sup



    Thread Connection: 3 1/2" API Reg Pin



     Bit Shank: QL50



    Type: with foot valve



    Feature: top sup have tungsten carbide buttons.



    P/N4148301741



    Photos:

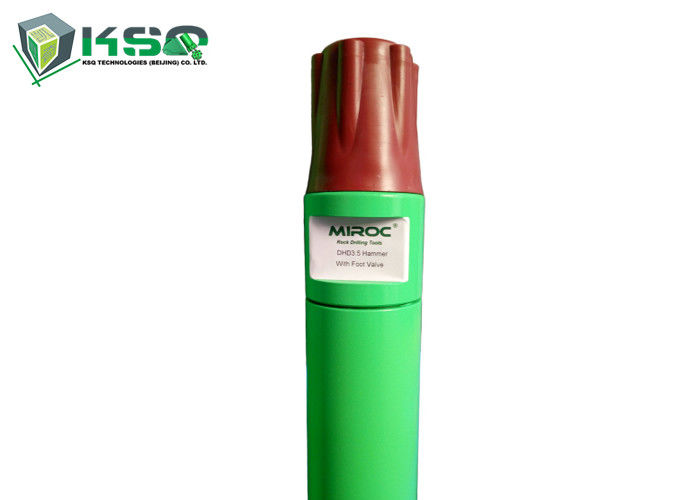

    5”Dth Drilling Tools Hammer Thread Connection 3 1/2" API Reg Pin With Foot Valve


    Basic Information

    Items Replacement Parts
    1 Top sub
    2 O-ring of top sub
    3 Breakout Ring
    4 Check Valve
    5 Spring
    6 Compression Buffer
    7 Air Distributor
    8 Internal cylinder
    9 Piston
    10 External cylinder
    11 Guide sleeve
    12 O-ring of stop ring
    13 Stop ring
    14 Breakout ring
    15 Drive chunk
    16 Drill bit



    Drilling Diameter(mm) Hammer Length(mm) External Diameter(mm) Weight(kg)
    φ135-φ155 1156(without bit) 125 73(without bit)
    Working Pressure(Mpa) Air Consumption(m³/min)
    1.3-2.3 1.0Mpa: 9m³/min 1.8Mpa: 15m³/min 2.4Mpa: 23m³/min
    Impact rate at 17 bar Connection Rod Thread Recommended Rotation Speed  Bit Shank
    25HZ

    API 3 1/2'' Reg

    API 2 7/8'' Reg

    25-40r/min.

    QL50 (with foot valve)



    Applications


    • Underground mining
    • Down the hole rock drilling



    Competitive Advantage


    •  Valveless air distribution, more reliable.

    •  The simple design of the piston. Long life span.

    •  More efficient energy transfer, faster drilling speed, low air consumption, and lower oil consumption.

    •  Fewer internal parts, simple structure, less failure and easier to maintain.

    •  Easy to disassemble because the top sub, the drive chuck, and the external cylinder are connected by multiple steps thread.

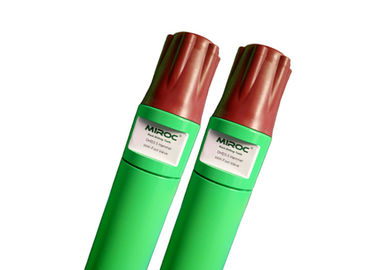

    DTH Hammer Package Photos

    5”Dth Drilling Tools Hammer Thread Connection 3 1/2" API Reg Pin With Foot Valve


    5”Dth Drilling Tools Hammer Thread Connection 3 1/2" API Reg Pin With Foot Valve
