| Place of Origin: | China |
| Brand Name: | MIROC Top Hammer Rock Drilling Tools |
| Model Number: | T45 Thread Button Bit |
| Minimum Order Quantity: | 10 Pieces Rock Drill Bit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 10- 15 days Production |
| Supply Ability: | 20000 pieces per month |
| Name: | Button Bit | Thread: | T45 |
|---|---|---|---|
| Diameter: | 76mm, 89mm | Carbide Material: | YK05 |
| Skirt Material: | 45CrNiMoVa | Color: | Green |
| High Light: | industrial drill bits,milling drill bits |
||
KSQ New T45 76mm and 89mm Button Bit
T45 89mm Flat face with Spherical Button Bit:
Product: T45 Button Bit
Diameter: 89mm / 3 1/2 Inch
Thread: T45
Face Design: Flat face
Button/Carbide Type: Spherical
Button Number and Diameter: Gauge 8x12mm, front 6x12mm
Flushing Holes: 2 front flushing holes and 2 side flushing holes
Prime Line: have two prime line
Weight: 4.6kg per piece
Color: Green
Part Number: P/N4148300814
Photo:

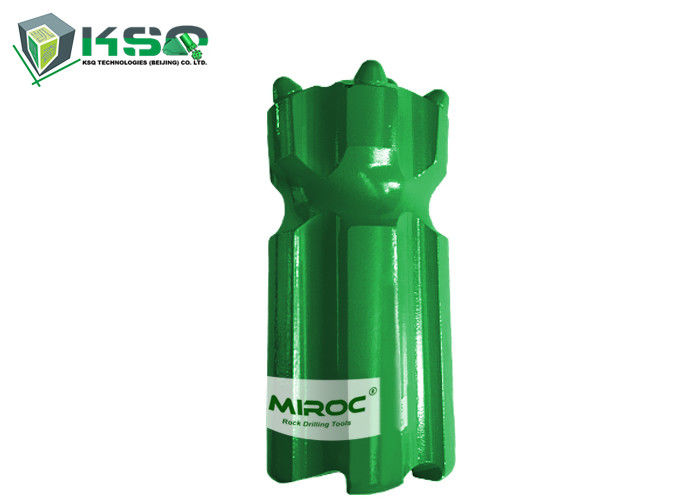

T45 76mm Retrac Face with Ballistic Button Bit:
Product: T45 Button Bit
Diameter: 76mm / 3 Inch
Thread: T45
Face Design: Flat face
Button/Carbide Type: Ballistic
Button Number and Diameter: Gauge 8x11mm, front 6x11mm
Flushing Holes: 2 front flushing holes and 2 side flushing holes
Prime Line: have two prime line
Weight: 2.6kg per piece
Color: Green
P/N4148300839
Photo:
Carbide Shape Photo
Processing
CNC milling and proprietary heat treatment process
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
T45 Thread Button Bit Specification
| T45 Button Bit | |||||||||
| Thread | Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | kg | ||
| T45 | 76 | 3 | 4×11 | 8×11 | 40° | 2 | - | 2.6 | 4148300807 |
| 76 | 3 | 5×11 | 8×12 | 35° | 2 | 1 | 2.6 | 4148300808 | |
| 76 | 3 | 3×11,1×11 | 6×13 | 35° | 3 | - | 2.4 | 4148300809 | |
| 76 | 3 | 4×11,1×11 | 8×12 | 35° | 4 | - | 2.6 | 4148300810 | |
| 89 | 3 1/2 | 4×13 | 8×13 | 40° | 2 | - | 4.6 | 4148300811 | |
| 89 | 3 1/2 | 6×11 | 8×12 | 35° | 2 | - | 4.6 | 4148300812 | |
| 89 | 3 1/2 | 3×11,2×11 | 6×13 | 35° | 3 | 1 | 4.1 | 4148300813 | |
| 89 | 3 1/2 | 4×11,1×11 | 8×12 | 35° | 4 | - | 4.6 | 4148300814 | |
| 89 | 3 1/2 | 4×13,1×13 | 8×13 | 35° | 4 | - | 4.6 | 4148300815 | |
| 102 | 4 | 5×14 | 8×14 | 40° | 2 | - | 5 | 4148300816 | |
| 102 | 4 | 6×13 | 8×16 | 40° | 2 | 1 | 5 | 4148300817 | |
| 102 | 4 | 3×13, 2×13 | 6×14 | 35° | 3 | 1 | 4.5 | 4148300818 | |
| 102 | 4 | 4×13, 1×13 | 8×14 | 35° | 4 | - | 4.5 | 4148300819 | |
| 102 | 4 | 4×13, 2×13 | 8×13 | 35° | 4 | 1 | 4.5 | 4148300820 | |
More T45 Thread Button Bit Specification
We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, drop center, etc.), and body type( Normal and retrac etc.).
Applications
Used in benching and long hole drilling.
Keywords
Button Bit, Rock Bit, Drill Bit, Rock Drill Bit, Thread Button Bit, Retrac Bit,
Dome Bit, Reaming Bit, Cross Bit, Chisel Bit, Rock Drilling Tools
